Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3413.0008.24FUSE BRD MNT 160MA 125VAC 63VDC |
9,821 |
|
Datasheet |
USFF 1206 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 160 mA | 125 V | 63 V | Fast Blow | 10A AC, 100A DC | 0.0015 | cURus | -55°C ~ 90°C | - | 0.126" L x 0.063" W x 0.063" H (3.20mm x 1.60mm x 1.60mm) | |
|
|
3413.0008.26FUSE BRD MNT 160MA 125VAC 63VDC |
5,233 |
|
Datasheet |
USFF 1206 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 160 mA | 125 V | 63 V | Fast Blow | 10A AC, 100A DC | 0.0015 | cURus | -55°C ~ 90°C | - | 0.126" L x 0.063" W x 0.063" H (3.20mm x 1.60mm x 1.60mm) | |
|
|
3413.0009.24FUSE BRD MNT 200MA 125VAC 63VDC |
2,702 |
|
Datasheet |
USFF 1206 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 200 mA | 125 V | 63 V | Fast Blow | 10A AC, 100A DC | 0.0029 | cURus | -55°C ~ 90°C | - | 0.126" L x 0.063" W x 0.063" H (3.20mm x 1.60mm x 1.60mm) | |
|
|
3413.0009.26FUSE BRD MNT 200MA 125VAC 63VDC |
3,814 |
|
Datasheet |
USFF 1206 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 200 mA | 125 V | 63 V | Fast Blow | 10A AC, 100A DC | 0.0029 | cURus | -55°C ~ 90°C | - | 0.126" L x 0.063" W x 0.063" H (3.20mm x 1.60mm x 1.60mm) | |
|
|
3413.0010.24FUSE BRD MNT 250MA 125VAC 63VDC |
8,963 |
|
Datasheet |
USFF 1206 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 250 mA | 125 V | 63 V | Fast Blow | 10A AC, 100A DC | 0.0032 | cURus | -55°C ~ 90°C | - | 0.126" L x 0.063" W x 0.063" H (3.20mm x 1.60mm x 1.60mm) | |
|
|
3413.0010.26FUSE BRD MNT 250MA 125VAC 63VDC |
7,373 |
|
Datasheet |
USFF 1206 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 250 mA | 125 V | 63 V | Fast Blow | 10A AC, 100A DC | 0.0032 | cURus | -55°C ~ 90°C | - | 0.126" L x 0.063" W x 0.063" H (3.20mm x 1.60mm x 1.60mm) | |
|
0215002.MRGT1PFUSE CERAMIC 2A 250VAC 5X20MM |
7,978 |
|
Datasheet |
215 | Tape & Reel (TR) | Active | Requires Holder | Cartridge, Ceramic | 2 A | 250 V | - | Slow Blow | 1.5kA | 11.68 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0215001.MXG941PFUSE CERAMIC 1A 250VAC RADIAL |
7,770 |
|
Datasheet |
215 | Tape & Reel (TR) | Active | Through Hole | Cartridge, Ceramic | 1 A | 250 V | - | Slow Blow | 1.5kA | 1.52 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
02301.25VXPFUSE GLASS 1.25A 250VAC 125VDC |
4,917 |
|
Datasheet |
230 | Bulk | Active | Through Hole | Cartridge, Glass | 1.25 A | 250 V | 125 V | Slow Blow | 100A AC, 10kA DC | 9.8 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
031301.5HXIDPFUSE GLASS 1.5A 250VAC 3AB 3AG |
7,277 |
|
Datasheet |
313 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.5 A | 250 V | - | Slow Blow | 100A | 38.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
168.6585.5102FUSE AUTOMOTIVE 10A 32VDC RADIAL |
3,635 |
|
Datasheet |
FP1 MINI® | Bulk | Discontinued at Digi-Key | Through Hole | Automotive | 10 A | - | 32 V | Fast Blow | 1kA | 79.2 | cULus | - | Red | 0.469" L x 0.150" W x 0.335" H (11.90mm x 3.80mm x 8.50mm) | |
|

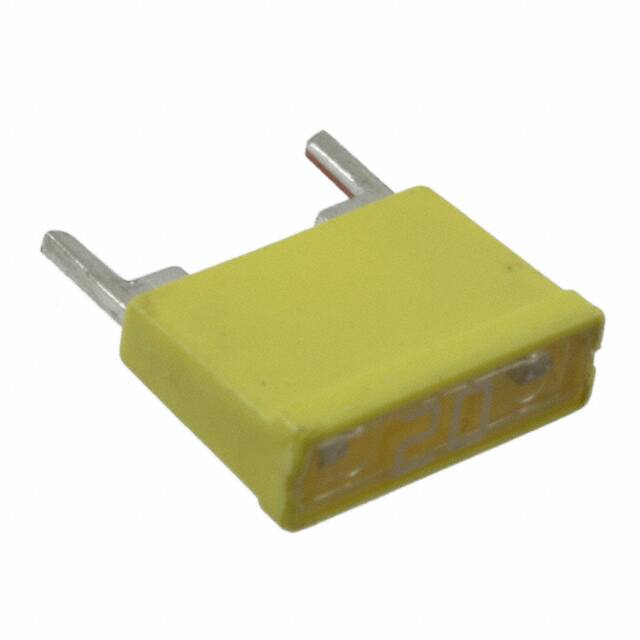

168.6585.5202FUSE AUTOMOTIVE 20A 32VDC RADIAL |
2,344 |
|
Datasheet |
FP1 MINI® | Bulk | Discontinued at Digi-Key | Through Hole | Automotive | 20 A | - | 32 V | Fast Blow | 1kA | 331.0 | cULus | - | Yellow | 0.469" L x 0.150" W x 0.335" H (11.90mm x 3.80mm x 8.50mm) | |
|
168.6585.4752FUSE AUTO 7.5A 32VDC RADIAL |
6,816 |
|
Datasheet |
FP1 MINI® | Bulk | Discontinued at Digi-Key | Through Hole | Automotive | 7.5 A | - | 32 V | Fast Blow | 1kA | 44.5 | cULus | - | Brown | 0.469" L x 0.150" W x 0.335" H (11.90mm x 3.80mm x 8.50mm) | |
|
168.6585.5152FUSE AUTOMOTIVE 15A 32VDC RADIAL |
9,048 |
|
Datasheet |
FP1 MINI® | Bulk | Discontinued at Digi-Key | Through Hole | Automotive | 15 A | - | 32 V | Fast Blow | 1kA | 178.0 | cULus | - | Blue | 0.469" L x 0.150" W x 0.335" H (11.90mm x 3.80mm x 8.50mm) | |
|
168.6585.5302FUSE AUTOMOTIVE 30A 32VDC RADIAL |
6,792 |
|
Datasheet |
FP1 MINI® | Bulk | Discontinued at Digi-Key | Through Hole | Automotive | 30 A | - | 32 V | Fast Blow | 1kA | 1264.0 | cULus | - | Green | 0.469" L x 0.150" W x 0.335" H (11.90mm x 3.80mm x 8.50mm) | |
|
|
168.6585.5252FUSE AUTOMOTIVE 25A 32VDC RADIAL |
4,815 |
|
Datasheet |
FP1 MINI® | Bulk | Discontinued at Digi-Key | Through Hole | Automotive | 25 A | - | 32 V | Fast Blow | 1kA | 653.0 | cULus | - | Clear | 0.469" L x 0.150" W x 0.335" H (11.90mm x 3.80mm x 8.50mm) | |
|
0215.800MXF34PFUSE CERAMIC 800MA 250VAC RADIAL |
9,701 |
|
Datasheet |
215 | Bulk | Obsolete | Through Hole | Cartridge, Ceramic | 800 mA | 250 V | - | Slow Blow | 1.5kA | 0.975 | CE, CSA, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
37305000000FUSE BRD MNT 500MA 250VAC RADIAL |
8,060 |
|
Datasheet |
TR5® 373 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 250 V | - | Fast Blow | 50A | 0.025 | CSA, cULus | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
TR2-S505H-V-500-RFUSE CERM 500MA 600VAC 400VDC |
9,200 |
|
Datasheet |
S505H | Tape & Reel (TR) | Active | Through Hole | Cartridge, Ceramic | 500 mA | 600 V | 400 V | Slow Blow | 1.5kA | 0.188 | cULus, PSE/JET | -40°C ~ 85°C | - | 0.218" Dia x 0.831" L (5.54mm x 21.10mm) | |
|
|
TR2-S505H-V-800-RFUSE CERM 800MA 600VAC 400VDC |
3,817 |
|
Datasheet |
S505H | Tape & Reel (TR) | Active | Through Hole | Cartridge, Ceramic | 800 mA | 600 V | 400 V | Slow Blow | 1.5kA | 0.632 | cULus, PSE/JET | -40°C ~ 85°C | - | 0.218" Dia x 0.831" L (5.54mm x 21.10mm) |
Fuses Electronic Components
Frequently Asked Questions
Q1: What products are included in Fuses?
This category includes related Fuses subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fuses components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fuses and other electronic components.
