Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0451010.MRSNFUSE BRD MNT 10A 125VAC/VDC 2SMD |
1,920 |
|
Datasheet |
NANO²® 451 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 125 V | 125 V | Fast Blow | 35A | 26.46 | CSA, METI, UR | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
|
0451020.MRSNFUSE BRD MNT 20A 65VAC 65VDC SMD |
843 |
|
- |
NANO²® 451 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | 65 V | 65 V | Fast Blow | 100A AC, 150A DC | 154.0 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
0ATO004.VFUSE AUTO 4A 32VAC/VDC BLADE |
557 |
|
Datasheet |
ATO® | Bulk | Active | Requires Holder | Automotive | 4 A | 32 V | 32 V | Fast Blow | - | - | CSA, UL | - | Pink | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
0438001.WRAFUSE BRD MNT 1A 32VAC 63VDC 0603 |
24,151 |
|
Datasheet |
438A | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 32 V | 63 V | Fast Blow | 50A | 0.0593 | CSA, UR | -55°C ~ 150°C | - | 0.062" L x 0.033" W x 0.024" H (1.58mm x 0.85mm x 0.61mm) | |
|
|
0438006.WRAFUSE BRD MNT 6A 12VAC 24VDC 0603 |
21,902 |
|
Datasheet |
438A | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 6 A | 12 V | 24 V | Fast Blow | 50A | 1.444 | CSA, UR | -55°C ~ 150°C | - | 0.062" L x 0.033" W x 0.024" H (1.58mm x 0.85mm x 0.61mm) | |
|

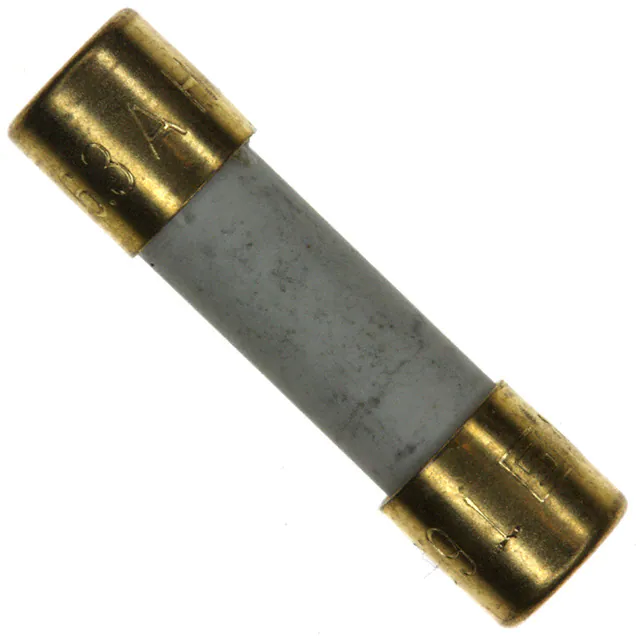

0001.2711.11FUSE CERM 5A 250VAC 150VDC 5X20 |
8,893 |
|
Datasheet |
SMD-SPT | Bulk | Active | Requires Holder | Cartridge, Ceramic | 5 A | 250 V | 150 V | Slow Blow | 1.5kA | 97.5 | CCC, cURus, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0ACA-9300-TEFUSE BOARD MOUNT 30A 72VDC 2SMD |
2,363 |
|
Datasheet |
0ACA | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 30 A | - | 72 V | - | 500A | 900.0 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.101" W x 0.101" H (6.10mm x 2.57mm x 2.57mm) | |
|
|
0451.375MRLFUSE BRD MT 375MA 125VAC/VDC SMD |
1,885 |
|
- |
NANO²® 451 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 375 mA | 125 V | 125 V | Fast Blow | 50A | 0.0425 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
|
0ACA-9200-TEFUSE BOARD MOUNT 20A 72VDC 2SMD |
1,670 |
|
Datasheet |
0ACA | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | - | 72 V | - | 500A | 210.0 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.101" W x 0.101" H (6.10mm x 2.57mm x 2.57mm) | |
|
|
0438.500WRAFUSE BRD MT 500MA 32VAC 63VDC |
1,591 |
|
Datasheet |
438A | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 32 V | 63 V | Fast Blow | 50A | 0.01 | CSA, UR | -55°C ~ 150°C | - | 0.062" L x 0.033" W x 0.024" H (1.58mm x 0.85mm x 0.61mm) | |
|
|
0ACA-9400-TEFUSE BOARD MOUNT 40A 63VDC 2SMD |
1,490 |
|
Datasheet |
0ACA | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 40 A | - | 63 V | - | 500A | 1600.0 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.101" W x 0.101" H (6.10mm x 2.57mm x 2.57mm) | |
|
39611000440FUSE BOARD MNT 1A 125VAC RADIAL |
1,460 |
|
Datasheet |
TE5® 396 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | - | Slow Blow | 100A | 3.25 | cUL, PSE/JET, UL | -40°C ~ 85°C | - | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) | |
|
|
0001.2709.11FUSE CERAMIC 3.15A 250VAC 300VDC |
1,379 |
|
Datasheet |
SMD-SPT | Bulk | Active | Requires Holder | Cartridge, Ceramic | 3.15 A | 250 V | 300 V | Slow Blow | 1.5kA | 33.7 | CCC, cURus, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
045302.5MRFUSE BRD MNT 2.5A 125VAC/VDC SMD |
1,275 |
|
- |
NANO²® 453 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2.5 A | 125 V | 125 V | Fast Blow | 50A | 1.029 | CSA, PSE, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
|
045101.5MRLFUSE BRD MNT 1.5A 125VAC/VDC SMD |
1,249 |
|
- |
NANO²® 451 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | 125 V | 125 V | Fast Blow | 50A | 0.853 | CSA, PSE, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
|
0ACA-9250-TEFUSE BOARD MOUNT 25A 72VDC 2SMD |
1,230 |
|
Datasheet |
0ACA | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 25 A | - | 72 V | - | 500A | 400.0 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.101" W x 0.101" H (6.10mm x 2.57mm x 2.57mm) | |
|
0313004.HXPFUSE GLASS 4A 250VAC 3AB 3AG |
1,000 |
|
Datasheet |
313 | Bulk | Active | Requires Holder | Cartridge, Glass | 4 A | 250 V | - | Slow Blow | 200A | 76.1 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0453.250MRFUSE BRD MT 250MA 125VAC/VDC SMD |
930 |
|
- |
NANO²® 453 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 250 mA | 125 V | 125 V | Fast Blow | 50A | 0.0158 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
BK/MDL-1-8/10-RFUSE GLASS 1.8A 250VAC 3AB 3AG |
874 |
|
Datasheet |
MDL | Bulk | Active | Requires Holder | Cartridge, Glass | 1.8 A | 250 V | - | Slow Blow | - | - | - | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0001.2704.11FUSE CERM 1A 250VAC 300VDC 5X20 |
868 |
|
Datasheet |
SMD-SPT | Bulk | Active | Requires Holder | Cartridge, Ceramic | 1 A | 250 V | 300 V | Slow Blow | 1.5kA | 1.1 | CCC, cURus, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
