Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0230006.MXF1PFUSE GLASS 6A 125VAC/VDC AXIAL |
6,546 |
|
Datasheet |
230 | Bulk | Active | Through Hole | Cartridge, Glass | 6 A | 125 V | 125 V | Slow Blow | 400A | 380.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
|
0230.500MXF17PFUSE GLASS 500MA 250VAC 125VDC |
8,507 |
|
Datasheet |
230 | Bulk | Active | Through Hole | Cartridge, Glass | 500 mA | 250 V | 125 V | Slow Blow | 35A AC, 10kA DC | 1.16 | CE, CSA, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
|
0230003.MXF16PFUSE GLASS 3A 250VAC 125VDC AXL |
4,897 |
|
Datasheet |
230 | Bulk | Active | Through Hole | Cartridge, Glass | 3 A | 250 V | 125 V | Slow Blow | 100A AC, 10kA DC | 77.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
|
0230003.MXF23PFUSE GLASS 3A 250VAC 125VDC AXL |
4,964 |
|
Datasheet |
230 | Bulk | Active | Through Hole | Cartridge, Glass | 3 A | 250 V | 125 V | Slow Blow | 100A AC, 10kA DC | 77.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
|
0230003.MXF17PFUSE GLASS 3A 250VAC 125VDC AXL |
8,131 |
|
Datasheet |
230 | Bulk | Active | Through Hole | Cartridge, Glass | 3 A | 250 V | 125 V | Slow Blow | 100A AC, 10kA DC | 77.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
|
0230.500MXF32PFUSE GLASS 500MA 250VAC 125VDC |
7,763 |
|
Datasheet |
230 | Bulk | Active | Through Hole | Cartridge, Glass | 500 mA | 250 V | 125 V | Slow Blow | 35A AC, 10kA DC | 1.16 | CE, CSA, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
|
023002.5MXF16PFUSE GLASS 2.5A 250VAC 125VDC |
4,421 |
|
Datasheet |
230 | Bulk | Active | Through Hole | Cartridge, Glass | 2.5 A | 250 V | 125 V | Slow Blow | 100A AC, 10kA DC | 50.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
0218.250MXBPFUSE GLASS 250MA 250VAC 5X20MM |
4,818 |
|
Datasheet |
218 | Bulk | Active | Requires Holder | Cartridge, Glass | 250 mA | 250 V | - | Slow Blow | 35A | 0.5405 | CCC, CE, CSA, KC, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0218.200MXBPFUSE GLASS 200MA 250VAC 5X20MM |
8,826 |
|
Datasheet |
218 | Bulk | Active | Requires Holder | Cartridge, Glass | 200 mA | 250 V | - | Slow Blow | 35A | 0.341 | CCC, CE, CSA, KC, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0230005.MXF1PFUSE GLASS 5A 125VAC/VDC AXIAL |
3,676 |
|
Datasheet |
230 | Bulk | Active | Through Hole | Cartridge, Glass | 5 A | 125 V | 125 V | Slow Blow | 400A | 267.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
|
0230001.MXF17PFUSE GLASS 1A 250VAC 125VDC AXL |
5,904 |
|
Datasheet |
230 | Bulk | Active | Through Hole | Cartridge, Glass | 1 A | 250 V | 125 V | Slow Blow | 35A AC, 10kA DC | 5.64 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|

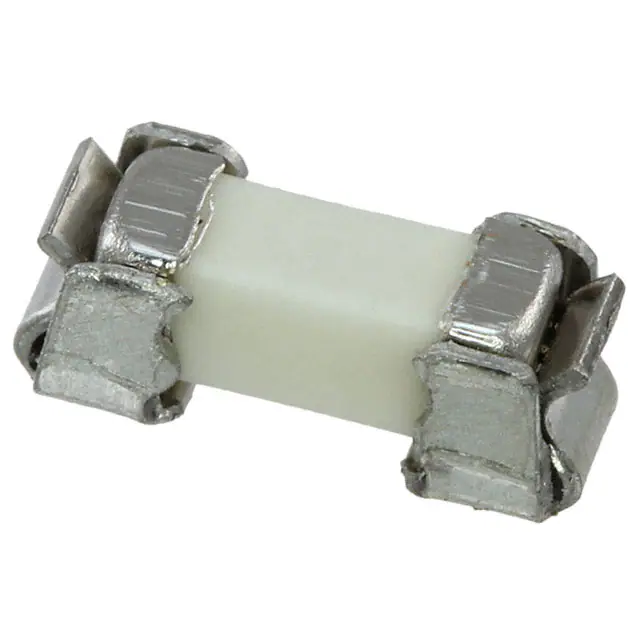

SSTC 1FUSE BRD MNT 1A 125VAC/VDC 2SMD |
8,492 |
|
Datasheet |
SSTC | Tape & Reel (TR) | Obsolete | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Slow Blow | 50A | 1.2 | - | -55°C ~ 125°C | - | 0.330" L x 0.128" W x 0.115" H (8.38mm x 3.25mm x 2.92mm) | |
|
|
SSTC 7FUSE BRD MNT 7A 125VAC/VDC 2SMD |
6,751 |
|
Datasheet |
SSTC | Tape & Reel (TR) | Obsolete | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 7 A | 125 V | 125 V | Slow Blow | 50A | 80.0 | - | -55°C ~ 125°C | - | 0.330" L x 0.128" W x 0.115" H (8.38mm x 3.25mm x 2.92mm) | |
|
0263.062MFUSE BOARD MNT 62MA 250VAC AXIAL |
6,276 |
|
Datasheet |
PICO® II 263 | - | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 62 mA | 250 V | - | Fast Blow | 50A | 1.92E-4 | UR | -55°C ~ 125°C | - | 0.155" Dia x 0.280" L (3.94mm x 7.11mm) | |
|
0215.500MRET1PFUSE CERAMIC 500MA 250VAC 5X20MM |
9,130 |
|
Datasheet |
215 | Tape & Reel (TR) | Obsolete | Through Hole | Cartridge, Ceramic | 500 mA | 250 V | - | Slow Blow | 1.5kA | 0.42 | CE, CSA, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
7010.9971.63MSB SURFACE MOUNT FUSE 10A |
8,822 |
|
Datasheet |
MSB | Bag | Active | Requires Holder | Cartridge, Ceramic | 10 A | 65 V | 65 V | Slow Blow | 150A | 140.0 | CE, CSA, cURus, UKCA, UL | -55°C ~ 85°C | - | 0.079" Dia x 0.276" L (2.00mm x 7.00mm) | |
|
0315020.MXPFUSE GLASS 20A 32VAC 3AB 3AG |
6,718 |
|
Datasheet |
315 | Bulk | Active | Through Hole | Cartridge, Glass | 20 A | 32 V | - | Slow Blow | 300A | 9560.0 | UL | -55°C ~ 125°C | - | 0.275" Dia x 1.275" L (6.99mm x 32.39mm) | |
|
|
0315030.MXPFUSE GLASS 30A 32VAC 3AB 3AG |
5,127 |
|
Datasheet |
315 | Bulk | Active | Through Hole | Cartridge, Glass | 30 A | 32 V | - | Slow Blow | 300A | 26900.0 | UL | -55°C ~ 125°C | - | 0.275" Dia x 1.275" L (6.99mm x 32.39mm) | |
|
|
0315010.MX250PFUSE GLASS 10A 250VAC 3AB 3AG |
3,479 |
|
Datasheet |
315 | Bulk | Active | Through Hole | Cartridge, Glass | 10 A | 250 V | - | Slow Blow | 35A | 760.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.275" L (6.99mm x 32.39mm) | |
|
20111000001FUSE GLASS 1A 250VAC 5X20MM |
8,016 |
|
Datasheet |
201 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | - | Medium Blow | 80A | 2.0 | cULus | -25°C ~ 70°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
Fuses Electronic Components
Frequently Asked Questions
Q1: What products are included in Fuses?
This category includes related Fuses subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fuses components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fuses and other electronic components.
