Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ATO001.VFUSE AUTO 1A 32VAC/VDC BLADE |
1,001 |
|
Datasheet |
ATO® | Bulk | Active | Requires Holder | Automotive | 1 A | 32 V | 32 V | Fast Blow | - | - | UL | - | Black | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
0313003.MXPFUSE GLASS 3A 250VAC 3AB 3AG |
987 |
|
Datasheet |
313 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 250 V | - | Slow Blow | 100A | 200.0 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0219001.MXAPFUSE GLASS 1A 250VAC 5X20MM |
950 |
|
Datasheet |
219XA | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | - | Slow Blow | 150A | 19.2 | CCC, CE, CSA, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0219002.MXAPFUSE GLASS 2A 250VAC 5X20MM |
895 |
|
Datasheet |
219XA | Bulk | Active | Requires Holder | Cartridge, Glass | 2 A | 250 V | - | Slow Blow | 150A | 92.705 | CCC, CE, CSA, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0314002.HXPFUSE CERM 2A 250VAC 125VDC 3AB |
821 |
|
Datasheet |
314 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 2 A | 250 V | 125 V | Fast Blow | 100A AC, 10kA DC | 11.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0314005.HXPFUSE CERM 5A 250VAC 125VDC 3AB |
389 |
|
Datasheet |
314 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 5 A | 250 V | 125 V | Fast Blow | 750A AC, 10kA DC | 26.0 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|

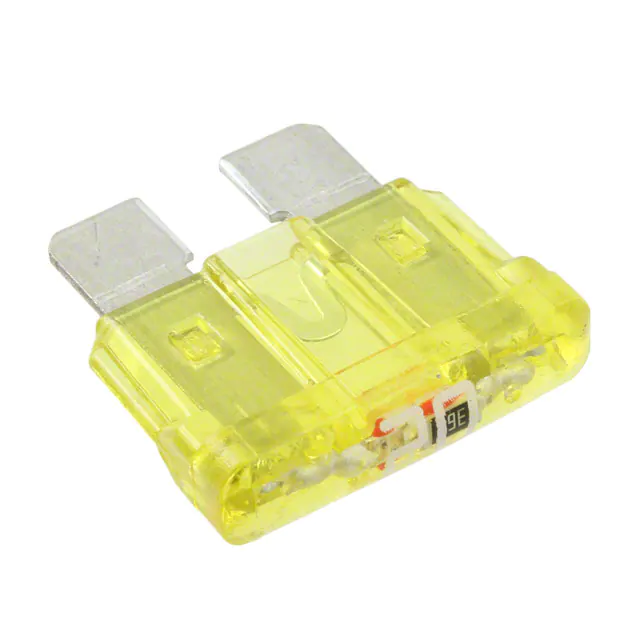

0ATO020.VFUSE AUTO 20A 32VAC/VDC BLADE |
216 |
|
Datasheet |
ATO® | Bulk | Active | Requires Holder | Automotive | 20 A | 32 V | 32 V | Fast Blow | - | - | CSA, UL | - | Yellow | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
|
0219.500MXAPFUSE GLASS 500MA 250VAC 5X20MM |
196 |
|
Datasheet |
219XA | Bulk | Active | Requires Holder | Cartridge, Glass | 500 mA | 250 V | - | Slow Blow | 150A | 3.0 | CCC, CE, CSA, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0ATO040.VFUSE AUTO 40A 32VAC/VDC BLADE |
110 |
|
Datasheet |
ATO® | Bulk | Active | Requires Holder | Automotive | 40 A | 32 V | 32 V | Fast Blow | - | - | UL | - | Orange | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
|
0217.125MXPFUSE GLASS 125MA 250VAC 5X20MM |
2,945 |
|
Datasheet |
217 | Bulk | Active | Requires Holder | Cartridge, Glass | 125 mA | 250 V | - | Fast Blow | 35A | 0.00478 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
39611000000FUSE BOARD MNT 1A 125VAC RADIAL |
2,156 |
|
Datasheet |
TE5® 396 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | - | Slow Blow | 100A | 3.25 | cUL, PSE/JET, UL | -40°C ~ 85°C | - | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) | |
|
|
0217.080MXPFUSE GLASS 80MA 250VAC 5X20MM |
632 |
|
Datasheet |
217 | Bulk | Active | Requires Holder | Cartridge, Glass | 80 mA | 250 V | - | Fast Blow | 35A | 8.3E-4 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
BK/GMC-150-RFUSE GLASS 150MA 250VAC 5X20MM |
527 |
|
Datasheet |
GMC | Bulk | Active | Requires Holder | Cartridge, Glass | 150 mA | 250 V | - | Medium Blow | 35A | 0.022 | CSA, KC-MARK, UL | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
37200630411FUSE BOARD MNT 63MA 250VAC RAD |
15,638 |
|
Datasheet |
TR5® 372 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 63 mA | 250 V | - | Slow Blow | 35A | 0.0278 | CCC, cURus, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
3404.2415.22FUSE BRD MNT 800MA 277VAC 250VDC |
8,401 |
|
Datasheet |
UMZ 250 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 800 mA | 277 V | 250 V | Slow Blow | 200A AC, 35A DC | 1.4 | cURus, VDE | -40°C ~ 85°C | - | 0.445" L x 0.165" W x 0.157" H (11.30mm x 4.20mm x 4.00mm) | |
|
|
3404.2421.11FUSE BRD MNT 3.15A 277VAC 250VDC |
6,506 |
|
Datasheet |
UMZ 250 | Strip | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 3.15 A | 277 V | 250 V | Slow Blow | 200A AC, 35A DC | 14.0 | cURus, VDE | -40°C ~ 85°C | - | 0.445" L x 0.165" W x 0.157" H (11.30mm x 4.20mm x 4.00mm) | |
|
TR/3216FF250-RFUSE BRD MT 250MA 32VAC 63VDC |
5,399 |
|
Datasheet |
Chip 3216FF | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 250 mA | 32 V | 63 V | Fast Blow | 50A | 3.8E-4 | CSA, UL | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.035" H (3.20mm x 1.60mm x 0.90mm) | |
|
|
3404.2416.11FUSE BRD MT 1A 277VAC 250VDC SMD |
4,299 |
|
Datasheet |
UMZ 250 | Strip | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 277 V | 250 V | Slow Blow | 200A AC, 35A DC | 2.8 | cURus, VDE | -40°C ~ 85°C | - | 0.445" L x 0.165" W x 0.157" H (11.30mm x 4.20mm x 4.00mm) | |
|
|
3404.2419.22FUSE BRD MT 2A 277VAC 250VDC SMD |
1,915 |
|
Datasheet |
UMZ 250 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 277 V | 250 V | Slow Blow | 200A AC, 35A DC | 7.3 | cURus, VDE | -40°C ~ 85°C | - | 0.445" L x 0.165" W x 0.157" H (11.30mm x 4.20mm x 4.00mm) | |
|

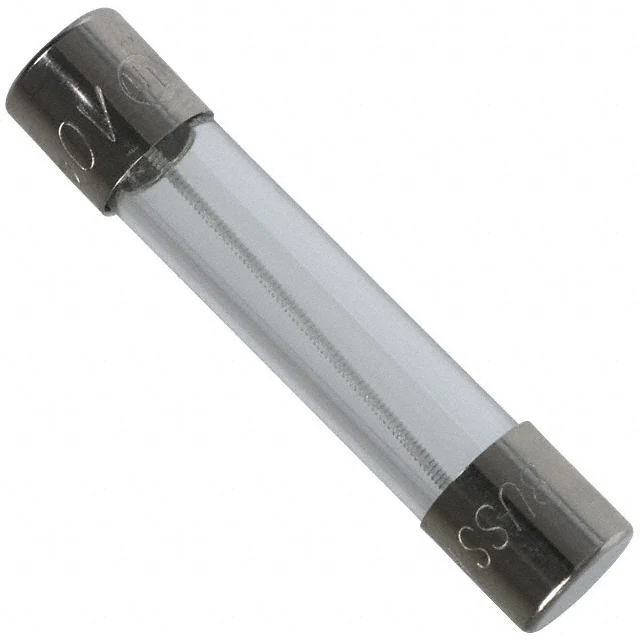

BK/MDL-2-1/2-RFUSE GLASS 2.5A 250VAC 3AB 3AG |
784 |
|
Datasheet |
MDL | Bulk | Active | Requires Holder | Cartridge, Glass | 2.5 A | 250 V | - | Slow Blow | 100A | 63.1 | CE, CSA, UL | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
