Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0680L9100-11FUSE BRD MNT 10A 50VAC 75VDC SMD |
5,408 |
|
Datasheet |
0680L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 50 V | 75 V | Slow Blow | 100A AC, 500A DC | 170.0 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm) | |
|

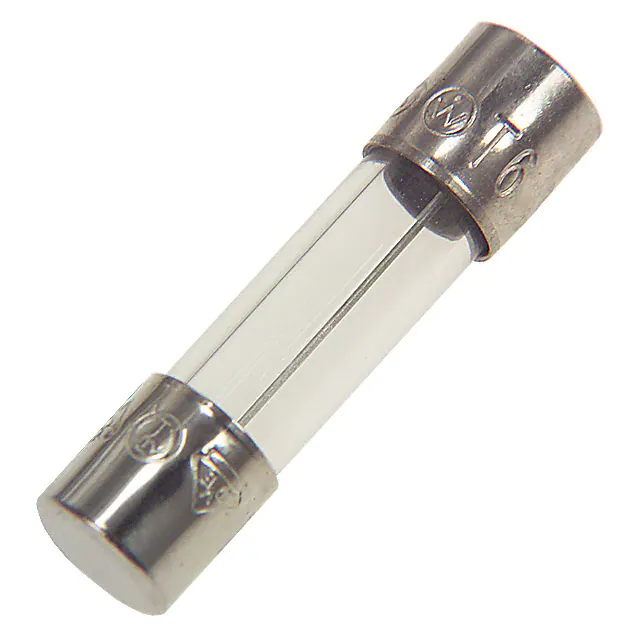

19300501009FUSE GLASS 50MA 250VAC 5X20MM |
2,217 |
|
Datasheet |
193 | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 50 mA | 250 V | - | Fast Blow | 35A | 0.005 | cULus | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
.jpg)
|
0603SFV150F/32-2FUSE BOARD MOUNT 1.5A 32VDC 0603 |
8,861 |
|
Datasheet |
SFV | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | - | 32 V | Fast Blow | 35A | 0.095 | UL | -55°C ~ 125°C | - | 0.063" L x 0.031" W x 0.014" H (1.60mm x 0.80mm x 0.35mm) | |
|
42513500101FUSE BRD MT 3.5A 125VAC 80VDC |
3,658 |
|
Datasheet |
425 | Tape & Reel (TR) | Obsolete | Requires Holder | Board Mount (Cartridge Style Excluded) | 3.5 A | 125 V | 80 V | Slow Blow | 35A AC, 50A DC | 21.0 | cULus | -55°C ~ 125°C | - | 0.394" L x 0.197" W x 0.146" H (10.00mm x 5.00mm x 3.70mm) | |
|
0441.750WRFUSE BOARD MNT 750MA 32VDC 0603 |
5,704 |
|
Datasheet |
441 | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | - | 32 V | Fast Blow | - | - | - | -55°C ~ 150°C | - | 0.061" L x 0.033" W x 0.020" H (1.54mm x 0.85mm x 0.50mm) | |
|
|
42515000101FUSE BRD MNT 5A 125VAC 80VDC SMD |
7,548 |
|
Datasheet |
425 | Tape & Reel (TR) | Obsolete | Requires Holder | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 80 V | Slow Blow | 35A AC, 50A DC | 50.0 | cULus | -55°C ~ 125°C | - | 0.394" L x 0.197" W x 0.146" H (10.00mm x 5.00mm x 3.70mm) | |
|
|
42413000101FUSE BRD MNT 3A 125VAC/VDC SMD |
2,626 |
|
Datasheet |
424 | Tape & Reel (TR) | Obsolete | Requires Holder | Board Mount (Cartridge Style Excluded) | 3 A | 125 V | 125 V | Fast Blow | 50A | 1.7 | cULus | -55°C ~ 125°C | - | 0.394" L x 0.197" W x 0.146" H (10.00mm x 5.00mm x 3.70mm) | |
|
|
42514000101FUSE BRD MNT 4A 125VAC 80VDC SMD |
4,489 |
|
Datasheet |
425 | Tape & Reel (TR) | Obsolete | Requires Holder | Board Mount (Cartridge Style Excluded) | 4 A | 125 V | 80 V | Slow Blow | 35A AC, 50A DC | 30.0 | cULus | -55°C ~ 125°C | - | 0.394" L x 0.197" W x 0.146" H (10.00mm x 5.00mm x 3.70mm) | |
|
|
42415000101FUSE BRD MNT 5A 125VAC/VDC SMD |
4,569 |
|
Datasheet |
424 | Tape & Reel (TR) | Obsolete | Requires Holder | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 125 V | Fast Blow | 50A | 6.8 | cULus | -55°C ~ 125°C | - | 0.394" L x 0.197" W x 0.146" H (10.00mm x 5.00mm x 3.70mm) | |
|
|
42414000101FUSE BRD MNT 4A 125VAC/VDC SMD |
7,377 |
|
Datasheet |
424 | Tape & Reel (TR) | Obsolete | Requires Holder | Board Mount (Cartridge Style Excluded) | 4 A | 125 V | 125 V | Fast Blow | 50A | 3.42 | cULus | -55°C ~ 125°C | - | 0.394" L x 0.197" W x 0.146" H (10.00mm x 5.00mm x 3.70mm) | |
|
|
42412500101FUSE BRD MNT 2.5A 125VAC/VDC SMD |
5,179 |
|
Datasheet |
424 | Tape & Reel (TR) | Obsolete | Requires Holder | Board Mount (Cartridge Style Excluded) | 2.5 A | 125 V | 125 V | Fast Blow | 50A | 0.95 | cULus | -55°C ~ 125°C | - | 0.394" L x 0.197" W x 0.146" H (10.00mm x 5.00mm x 3.70mm) | |
|
|
42412000101FUSE BRD MNT 2A 125VAC/VDC SMD |
9,763 |
|
Datasheet |
424 | Tape & Reel (TR) | Obsolete | Requires Holder | Board Mount (Cartridge Style Excluded) | 2 A | 125 V | 125 V | Fast Blow | 50A | 0.9 | cULus | -55°C ~ 125°C | - | 0.394" L x 0.197" W x 0.146" H (10.00mm x 5.00mm x 3.70mm) | |
|
021706.3MRET1PFUSE GLASS 6.3A 250VAC 5X20MM |
7,278 |
|
Datasheet |
217 | Tape & Reel (TR) | Active | Through Hole | Cartridge, Glass | 6.3 A | 250 V | - | Fast Blow | 63A | 62.465 | BSI, CCC, CE, CSA, KC, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
0215002.MXBPFUSE CERAMIC 2A 250VAC 5X20MM |
5,102 |
|
Datasheet |
215 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 2 A | 250 V | - | Slow Blow | 1.5kA | 11.68 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
021502.5MXBPFUSE CERAMIC 2.5A 250VAC 5X20MM |
9,675 |
|
Datasheet |
215 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 2.5 A | 250 V | - | Slow Blow | 1.5kA | 22.29 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0318002.HFUSE GLASS 2A 250VAC 3AB 3AG |
7,070 |
|
Datasheet |
318 | Bulk | Obsolete | Through Hole | Cartridge, Glass | 2 A | 250 V | - | Fast Blow | 35A | 5.2 | CSA, UL | - | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
|
5ETP 1.25-RFUSE GLASS 1.25A 250VAC 5X20MM |
95 |
|
Datasheet |
5ETP | Bulk | Obsolete | Through Hole | Cartridge, Glass | 1.25 A | 250 V | - | Slow Blow | 150A | 42.0 | CCC, CE, CSA, cULus, SEMKO, VDE | -55°C ~ 125°C | - | 0.217" Dia x 0.827" L (5.50mm x 21.00mm) | |
|
5HF 1.6-RFUSE CERAMIC 1.6A 250VAC 5X20MM |
93 |
|
Datasheet |
5HF | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 1.6 A | 250 V | - | Fast Blow | 1.5kA | 2.1 | CCC, CE, CSA, cURus, IMQ, PSE, SEMKO, VDE | -55°C ~ 125°C | - | 0.201" Dia x 0.787" L (5.10mm x 20.00mm) | |
|
|
5ETP 1.6-RFUSE GLASS 1.6A 250VAC 5X20MM |
90 |
|
Datasheet |
5ETP | Bulk | Obsolete | Through Hole | Cartridge, Glass | 1.6 A | 250 V | - | Slow Blow | 150A | 62.0 | CCC, CE, CSA, cULus, SEMKO, VDE | -55°C ~ 125°C | - | 0.217" Dia x 0.827" L (5.50mm x 21.00mm) | |
|
2JS 3.5-RFUSE GLASS 3.5A 350VAC 140VDC |
45 |
|
Datasheet |
2JS | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 3.5 A | 350 V | 140 V | Slow Blow | 100A AC, 150A DC | 69.0 | CE, CSA, cURus, PSE | -55°C ~ 125°C | - | 0.201" Dia x 0.543" L (5.10mm x 13.80mm) |
