Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0MAX040.XPFUSE AUTO 40A 32VAC/VDC 1PK CARD |
5 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 40 A | 32 V | 32 V | Slow Blow | - | - | SAE | - | Orange | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|

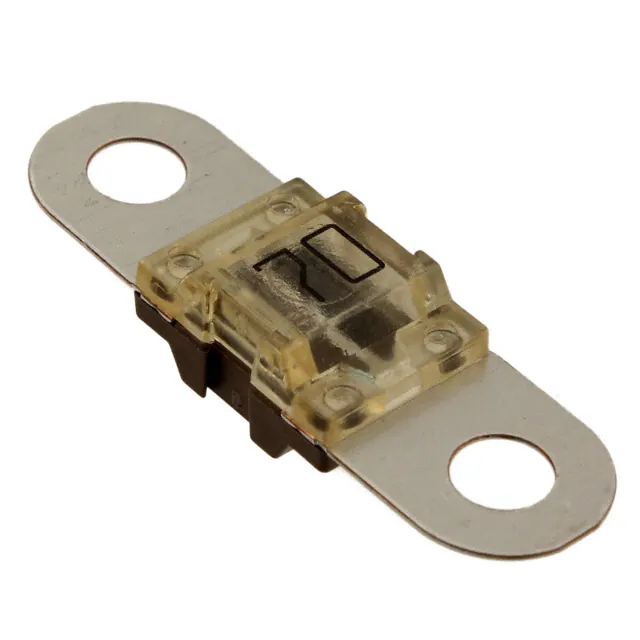

153.5631.5701FUSE AUTO 70A 32VDC AUTO LINK |
14 |
|
Datasheet |
BF1 | Bulk | Active | Bolt Mount | Automotive | 70 A | - | 32 V | Slow Blow | 2kA | 22000.0 | ISO, UL | - | Tan | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
0299035.TXNFUSE AUTO 35A 32VDC BLADE MAX |
18 |
|
Datasheet |
299 | Box | Active | Requires Holder | Automotive | 35 A | - | 32 V | Slow Blow | 1kA | 6032.0 | UR | -40°C ~ 125°C | Brown | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0299050.TXNFUSE AUTO 50A 32VDC BLADE MAX |
12 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 50 A | - | 32 V | Slow Blow | 1kA | 11300.0 | DIN, ISO, SAE | -40°C ~ 125°C | Red | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0299060.TXNFUSE AUTO 60A 32VDC BLADE MAX |
10 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 60 A | - | 32 V | Slow Blow | 1kA | 15300.0 | DIN, ISO, SAE | -40°C ~ 125°C | Blue | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0299025.TXNFUSE AUTO 25A 32VDC BLADE MAX |
7 |
|
Datasheet |
299 | Box | Active | Requires Holder | Automotive | 25 A | - | 32 V | Slow Blow | 1kA | 2087.0 | UR | -40°C ~ 125°C | Gray | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
|
0299040.TXNFUSE AUTO 40A 32VDC BLADE MAX |
6 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 40 A | - | 32 V | Slow Blow | 1kA | 8450.0 | DIN, ISO, SAE | -40°C ~ 125°C | Orange | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0498150.SXTFUSE AUTO 150A 32VDC AUTO LINK |
8 |
|
Datasheet |
MIDI® 498 | Box | Active | Bolt Mount | Automotive | 150 A | - | 32 V | Slow Blow | 1kA | 81900.0 | - | -40°C ~ 125°C | Black, Gray | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) | |
|
GMA-125-RFUSE GLASS 125MA 250VAC 5X20MM |
4 |
|
Datasheet |
GMA | Bulk | Active | Requires Holder | Cartridge, Glass | 125 mA | 250 V | - | Fast Blow | 35A | 0.0024 | CSA, PSE, UL | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
3403.0290.11FUSE BRD MT 40A 125VAC 72VDC SMD |
4,219 |
|
Datasheet |
UMT-H | Box | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 40 A | 125 V | 72 V | Slow Blow | 500A | 3620.0 | CQC, cURus, VDE | -55°C ~ 125°C | - | 0.606" L x 0.211" W x 0.211" H (15.40mm x 5.35mm x 5.35mm) | |
|
|
0498070.SXTFUSE AUTO 70A 32VDC AUTO LINK |
20 |
|
Datasheet |
MIDI® 498 | Box | Active | Bolt Mount | Automotive | 70 A | - | 32 V | Slow Blow | 1kA | 24000.0 | - | -40°C ~ 125°C | Brown | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) | |
|
153.5631.6151FUSE AUTO 150A 32VDC AUTO LINK |
22 |
|
Datasheet |
BF1 | Bulk | Active | Bolt Mount | Automotive | 150 A | - | 32 V | Slow Blow | 2kA | 83400.0 | ISO, UL | - | Gray | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
153.5631.6121FUSE AUTO 125A 32VDC AUTO LINK |
5 |
|
Datasheet |
BF1 | Bulk | Active | Bolt Mount | Automotive | 125 A | - | 32 V | Slow Blow | 2kA | 62500.0 | ISO, UL | - | Pink | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
0313003.VXIDPFUSE GLASS 3A 250VAC 3AB 3AG |
17 |
|
Datasheet |
313 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 250 V | - | Slow Blow | 100A | 200.0 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
BK/S501-V-63R81FUSE CERAMIC 63MA 250VAC 5X20MM |
8,666 |
|
Datasheet |
S501 | Bulk | Active | Through Hole | Cartridge, Ceramic | 63 mA | 250 V | - | Fast Blow | 1.5kA | 5.0E-4 | CCC, CSA, cULus | - | - | 0.218" Dia x 0.831" L (5.54mm x 21.10mm) | |
|
BK/ABC-7-RFUSE CERM 7A 250VAC 125VDC 3AB |
22 |
|
Datasheet |
ABC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 7 A | 250 V | 125 V | Fast Blow | 200A AC, 10kA DC | 109.33 | CSA, UL | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0313005.VXIDPFUSE GLASS 5A 250VAC 3AB 3AG |
5 |
|
Datasheet |
313 | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 250 V | - | Slow Blow | 200A | 140.0 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0313001.VXPFUSE GLASS 1A 250VAC 3AB 3AG |
5 |
|
Datasheet |
313 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | - | Slow Blow | 35A | 14.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0313020.VXPFUSE GLASS 20A 32VAC 3AB 3AG |
8 |
|
Datasheet |
313 | Bulk | Active | Requires Holder | Cartridge, Glass | 20 A | 32 V | - | Slow Blow | 300A | 9560.0 | UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0313010.VXPFUSE GLASS 10A 32VAC 3AB 3AG |
10 |
|
Datasheet |
313 | Bulk | Active | Requires Holder | Cartridge, Glass | 10 A | 32 V | - | Slow Blow | 300A | 760.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
