Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0239.750HXPFUSE GLASS 750MA 250VAC 5X20MM |
52 |
|
Datasheet |
239 | Bulk | Active | Requires Holder | Cartridge, Glass | 750 mA | 250 V | - | Slow Blow | 35A | 5.425 | CE, CSA, KC, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0MIN004.VFUSE AUTO 4A 32VAC 32VDC BLADE |
71 |
|
Datasheet |
MINI® | Bulk | Active | Requires Holder | Automotive | 4 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Pink | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
021901.6MXAPFUSE GLASS 1.6A 250VAC 5X20MM |
67 |
|
Datasheet |
219XA | Bulk | Active | Requires Holder | Cartridge, Glass | 1.6 A | 250 V | - | Slow Blow | 150A | 44.2 | CCC, CE, CSA, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|

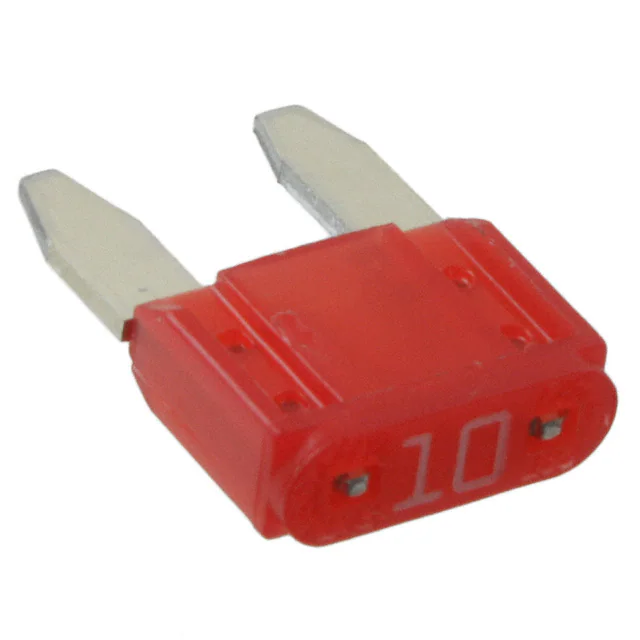

0MIN010.VFUSE AUTO 10A 32VAC 32VDC BLADE |
40 |
|
Datasheet |
MINI® | Bulk | Active | Requires Holder | Automotive | 10 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Red | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0213005.TXPFUSE GLASS 5A 250VAC 5X20MM |
52 |
|
Datasheet |
213 | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 250 V | - | Slow Blow | 50A | 314.0 | BSI, CCC, CE, CSA, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0230006.HXPFUSE GLASS 6A 125VAC/VDC AXIAL |
90 |
|
Datasheet |
230 | Bulk | Active | Through Hole | Cartridge, Glass | 6 A | 125 V | 125 V | Slow Blow | 400A | 380.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
|
023002.5HXPFUSE GLASS 2.5A 250VAC 125VDC |
80 |
|
Datasheet |
230 | Bulk | Active | Through Hole | Cartridge, Glass | 2.5 A | 250 V | 125 V | Slow Blow | 35A AC, 10kA DC | 50.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
031301.8HXPFUSE GLASS 1.8A 250VAC 3AB 3AG |
79 |
|
Datasheet |
313 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.8 A | 250 V | - | Slow Blow | 100A | 58.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0230.500HXPFUSE GLASS 500MA 250VAC 125VDC |
75 |
|
Datasheet |
230 | Bulk | Active | Through Hole | Cartridge, Glass | 500 mA | 250 V | 125 V | Slow Blow | 35A AC, 10kA DC | 1.16 | CE, CSA, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
38221000430FUSE BOARD MNT 10A 250VAC RADIAL |
37 |
|
Datasheet |
TR5® 382 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 10 A | 250 V | - | Slow Blow | 100A | 365.0 | cURus, PSE/JET | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0251.750HAT1LFUSE BRD MT 750MA 125VAC/VDC AXL |
200 |
|
Datasheet |
PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 750 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.153 | CSA, cURus, TUV | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
BK/C515-250-RFUSE GLASS 250MA 250VAC 2AG |
100 |
|
Datasheet |
C515 | Bulk | Active | Through Hole | Cartridge, Glass | 250 mA | 250 V | - | Slow Blow | 35A | 0.467 | CSA, UL | - | - | 0.217" Dia x 0.598" L (5.50mm x 15.20mm) | |
|
|
0217.500TXPFUSE GLASS 500MA 250VAC 5X20MM |
100 |
|
Datasheet |
217 | Bulk | Active | Requires Holder | Cartridge, Glass | 500 mA | 250 V | - | Fast Blow | 35A | 0.215 | CCC, CE, CSA,KC, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0251004.HAT1LFUSE BRD MNT 4A 125VAC/VDC AXIAL |
138 |
|
Datasheet |
PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 4 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 2.45 | CCC, CSA, cURus, PSE, TUV | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
|
0251001.HAT1LFUSE BRD MNT 1A 125VAC/VDC AXIAL |
199 |
|
Datasheet |
PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.256 | CCC, CSA, cURus, PSE, TUV | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
|
025103.5HAT1LFUSE BRD MNT 3.5A 125VAC/VDC AXL |
155 |
|
Datasheet |
PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3.5 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 1.58 | CSA, cURus, PSE, TUV | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|

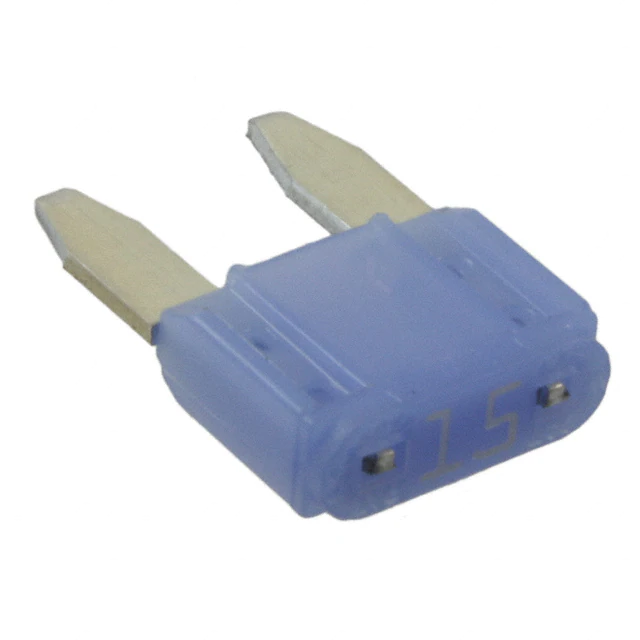

0MIN015.VFUSE AUTO 15A 32VAC 32VDC BLADE |
28 |
|
Datasheet |
MINI® | Bulk | Active | Requires Holder | Automotive | 15 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Blue | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
39614000000FUSE BOARD MNT 4A 125VAC RADIAL |
516 |
|
Datasheet |
TE5® 396 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 4 A | 125 V | - | Slow Blow | 100A | 38.4 | cUL, PSE/JET, UL | -40°C ~ 85°C | - | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) | |
|
|
0217.315TXPFUSE GLASS 315MA 250VAC 5X20MM |
60 |
|
Datasheet |
217 | Bulk | Active | Requires Holder | Cartridge, Glass | 315 mA | 250 V | - | Fast Blow | 35A | 0.11 | CCC, CE, CSA, KC, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
031302.8HXPFUSE GLASS 2.8A 250VAC 3AB 3AG |
100 |
|
Datasheet |
313 | Bulk | Active | Requires Holder | Cartridge, Glass | 2.8 A | 250 V | - | Slow Blow | 100A | 170.0 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
Fuses Electronic Components
Frequently Asked Questions
Q1: What products are included in Fuses?
This category includes related Fuses subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fuses components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fuses and other electronic components.
