Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT-30AFUSE AUTO 30A 48VDC BLADE MICRO |
3,670 |
|
Datasheet |
APT | Bulk | Active | Requires Holder | Automotive | 30 A | - | 48 V | Fast Blow | 1kA | - | - | -45°C ~ 125°C | Green | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
FXG-160MAFUSE BRD MNT 160MA 250VAC AXIAL |
3,248 |
|
Datasheet |
FXG | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 160 mA | 250 V | - | Fast Blow | 30A | 0.002313 | UL 248 | -55°C ~ 125°C | - | 0.110" Dia x 0.290" L (2.80mm x 7.37mm) | |
|
APT-10AFUSE AUTO 10A 48VDC BLADE MICRO |
3,000 |
|
Datasheet |
APT | Bulk | Active | Requires Holder | Automotive | 10 A | - | 48 V | Fast Blow | 1kA | - | - | -45°C ~ 125°C | Red | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
APT-25AFUSE AUTO 25A 48VDC BLADE MICRO |
3,000 |
|
Datasheet |
APT | Bulk | Active | Requires Holder | Automotive | 25 A | - | 48 V | Fast Blow | 1kA | - | - | -45°C ~ 125°C | Clear | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
APT-15AFUSE AUTO 15A 48VDC BLADE MICRO |
2,503 |
|
Datasheet |
APT | Bulk | Active | Requires Holder | Automotive | 15 A | - | 48 V | Fast Blow | 1kA | - | - | -45°C ~ 125°C | Blue | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
FSC-125MAFUSE GLASS 125MA 250VAC 5X20MM |
2,038 |
|
Datasheet |
FSC | Bulk | Active | Requires Holder | Cartridge, Glass | 125 mA | 250 V | - | Fast Blow | 100A | - | cULus, UL 248 | -55°C ~ 90°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
ANT-UL-30AFUSE AUTO 30A 32VDC BLADE MICRO |
2,000 |
|
Datasheet |
ANT-UL | Bulk | Active | Requires Holder | Automotive | 30 A | - | 32 V | Fast Blow | 1kA | - | cURus, ISO, SAE, UL 248 | - | Green | 0.354" L x 0.150" W x 0.315" H (9.00mm x 3.80mm x 8.00mm) | |
|
FSC-160MAFUSE GLASS 160MA 250VAC 5X20MM |
1,427 |
|
Datasheet |
FSC | Bulk | Active | Requires Holder | Cartridge, Glass | 160 mA | 250 V | - | Fast Blow | 100A | - | cULus, UL 248 | -55°C ~ 90°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
TR2/1025FA1.5-RFUSE BRD MT 1.5A 250VAC 125VDC |
5,772 |
|
Datasheet |
BRICK 1025FA | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | 250 V | 125 V | Fast Blow | 50A | 1.46 | CSA, UL | - | - | 0.405" L x 0.109" W x 0.109" H (10.29mm x 2.77mm x 2.77mm) | |
.jpg)
|
TR2/6125FF15-RFUSE BRD MT 15A 125VAC 72VDC |
3,728 |
|
Datasheet |
6125FF | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 125 V | 72 V | Fast Blow | 50A | 296.1 | cULus | -55°C ~ 125°C | - | 0.240" L x 0.107" W x 0.107" H (6.10mm x 2.72mm x 2.72mm) | |
|

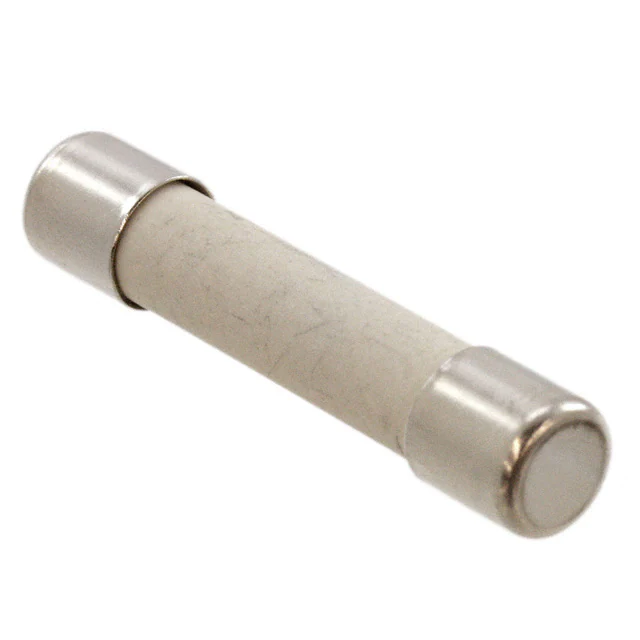

3AB 20-RFUSE CERAMIC 20A 250VAC 3AB 3AG |
1,093 |
|
Datasheet |
3AB | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 20 A | 250 V | - | Fast Blow | 1.5kA | 1598.0 | CE, cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
3AB 12-RFUSE CERAMIC 12A 250VAC 3AB 3AG |
1,062 |
|
Datasheet |
3AB | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 12 A | 250 V | - | Fast Blow | 750A | 501.0 | CE, CSA, cURus, PSE | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
.jpg)
|
0603SFV125F/32-2FUSE BOARD MOUNT 1.3A 32VDC 0603 |
6,000 |
|
Datasheet |
SFV | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.3 A | - | 32 V | Fast Blow | 35A | - | UL | -55°C ~ 125°C | - | 0.063" L x 0.031" W x 0.014" H (1.60mm x 0.80mm x 0.35mm) | |
|
0034.3128.TRFUSE GLASS 12.5A 250VAC 5X20MM |
1,595 |
|
Datasheet |
FST 5x20 | Tape & Reel (TR) | Last Time Buy | Through Hole | Cartridge, Glass | 12.5 A | 250 V | - | Slow Blow | 125A | 750.0 | - | -55°C ~ 125°C | - | 0.213" Dia x 0.886" L (5.40mm x 22.50mm) | |
|
TR2/1025TD3.5-RFUSE BRD MT 3.5A 250VAC 125VDC |
9,973 |
|
Datasheet |
BRICK 1025TD | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3.5 A | 250 V | 125 V | Slow Blow | 50A | 43.33 | CSA, UL | - | - | 0.405" L x 0.109" W x 0.109" H (10.29mm x 2.77mm x 2.77mm) | |
|
|
TR2/6125FF2-RFUSE BRD MNT 125VAC/72VDC 2410 |
3,698 |
|
Datasheet |
6125FF | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 125 V | 72 V | Fast Blow | 50A | 1.67 | cULus | -55°C ~ 125°C | - | 0.240" L x 0.107" W x 0.107" H (6.10mm x 2.72mm x 2.72mm) | |
|
TSE-P-1AFUSE GLASS 1A 250VAC 2AG |
3,283 |
|
Datasheet |
TSE | Bulk | Active | Through Hole | Cartridge, Glass | 1 A | 250 V | - | Slow Blow | 100A | 2.245 | UL 248 | -55°C ~ 125°C | - | 0.197" Dia x 0.630" L (5.00mm x 16.00mm) | |
|
TSE-P-1.5AFUSE GLASS 1.5A 250VAC 2AG |
3,151 |
|
Datasheet |
TSE | Bulk | Active | Through Hole | Cartridge, Glass | 1.5 A | 250 V | - | Slow Blow | 100A | 6.635 | UL 248 | -55°C ~ 125°C | - | 0.197" Dia x 0.630" L (5.00mm x 16.00mm) | |
|
FUK6.3A-01FUSE GLASS 6.3A 250VAC 5X20MM |
2,982 |
|
Datasheet |
- | Bulk | Active | Requires Holder | Cartridge, Glass | 6.3 A | - | - | - | - | - | - | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
TSE-P-3.15AFUSE GLASS 3.15A 250VAC 2AG |
2,854 |
|
Datasheet |
TSE | Bulk | Active | Through Hole | Cartridge, Glass | 3.15 A | 250 V | - | Slow Blow | 100A | 9.83 | UL 248 | -55°C ~ 125°C | - | 0.197" Dia x 0.630" L (5.00mm x 16.00mm) |
Fuses Electronic Components
Frequently Asked Questions
Q1: What products are included in Fuses?
This category includes related Fuses subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fuses components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fuses and other electronic components.
