Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0697H5000-05FUSE BRD MT 5A 350VAC 72VDC RAD |
13,934 |
|
Datasheet |
0697H | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 350 V | 72 V | Slow Blow | 150A AC, 200A DC | 130.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
0697H0250-02FUSE BRD MNT 250MA 350VAC 100VDC |
10,910 |
|
Datasheet |
0697H | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 250 mA | 350 V | 100 V | Slow Blow | 100A AC, 65A DC | 0.18 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
|
0697H2500-01FUSE BRD MNT 2.5A 350VAC 100VDC |
9,117 |
|
Datasheet |
0697H | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2.5 A | 350 V | 100 V | Slow Blow | 100A AC, 65A DC | 35.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
0ABA-4000-TNFUSE BOARD MOUNT 4A 32VDC 0402 |
7,342 |
|
Datasheet |
0ABA | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | - | 32 V | Fast Blow | 35A | 0.6 | cURus | -55°C ~ 125°C | - | 0.039" L x 0.020" W x 0.016" H (1.00mm x 0.50mm x 0.40mm) | |
|
|
0697H0400-02FUSE BRD MNT 400MA 350VAC 100VDC |
7,242 |
|
Datasheet |
0697H | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 400 mA | 350 V | 100 V | Slow Blow | 100A AC, 65A DC | 0.57 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
8020.0518.PTFUSE CERAMIC 2.5A 250VAC AXIAL |
3,271 |
|
Datasheet |
SPT 3.6x10 | Bulk | Active | Through Hole | Cartridge, Ceramic | 2.5 A | 250 V | - | Slow Blow | 35A | 66.0 | cURus | -20°C ~ 70°C | - | 0.154" Dia x 0.433" L (3.90mm x 11.00mm) | |
|
|
0697H1600-05FUSE BRD MNT 1.6A 350VAC 100VDC |
2,656 |
|
Datasheet |
0697H | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1.6 A | 350 V | 100 V | Slow Blow | 100A AC, 65A DC | 13.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
|
0697H6300-02FUSE BRD MNT 6.3A 350VAC 72VDC |
2,154 |
|
Datasheet |
0697H | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 6.3 A | 350 V | 72 V | Slow Blow | 150A AC, 200A DC | 180.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
8020.0516.PTFUSE CERAMIC 1.6A 250VAC AXIAL |
2,096 |
|
Datasheet |
SPT 3.6x10 | Bulk | Active | Through Hole | Cartridge, Ceramic | 1.6 A | 250 V | - | Slow Blow | 35A | 17.5 | cURus | -20°C ~ 70°C | - | 0.154" Dia x 0.433" L (3.90mm x 11.00mm) | |
|
|
0697H1000-05FUSE BRD MT 1A 350VAC 100VDC RAD |
1,305 |
|
Datasheet |
0697H | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 350 V | 100 V | Slow Blow | 100A AC, 65A DC | 6.1 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
0697W3150-01FUSE BRD MNT 3.15A 350VAC 72VDC |
26,627 |
|
Datasheet |
0697W | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3.15 A | 350 V | 72 V | Slow Blow | 100A | 66.0 | AEC-Q200, CQC, cURus, PSE, VDE | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
0697W2000-02FUSE BRD MT 2A 350VAC 72VDC RAD |
5,749 |
|
Datasheet |
0697W | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 350 V | 72 V | Slow Blow | 100A | 26.0 | AEC-Q200, CQC, cURus, PSE, VDE | -55°C ~ 125°C | - | 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm) | |
|
0034.6916FUSE BRD MNT 1.25A 250VAC RADIAL |
14,538 |
|
Datasheet |
MXT 250 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1.25 A | 250 V | - | Slow Blow | 100A | 6.3 | CCC, cURus, KC, PSE/JET, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.335" H (8.50mm x 8.50mm) | |
|
0327015.LXSFUSE AUTO 15A 32VDC BLADE MICRO |
13,636 |
|
Datasheet |
MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 15 A | - | 32 V | - | 1kA | 189.0 | - | -40°C ~ 125°C | Blue | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
0034.6915FUSE BOARD MNT 1A 250VAC RADIAL |
10,504 |
|
Datasheet |
MXT 250 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | - | Slow Blow | 100A | 4.4 | CCC, cURus, KC, PSE/JET, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.335" H (8.50mm x 8.50mm) | |
|

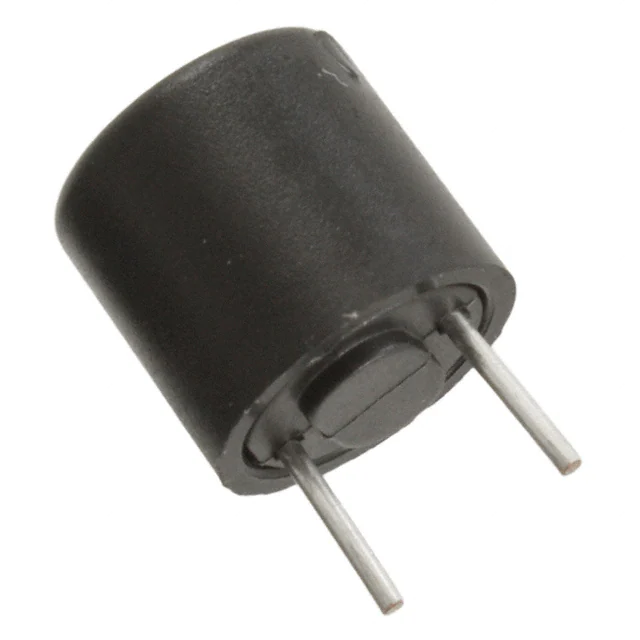

0034.6002FUSE BOARD MNT 63MA 250VAC RAD |
8,347 |
|
Datasheet |
MSF 250 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 63 mA | 250 V | - | Fast Blow | 35A | 0.001 | CCC, cURus, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.335" H (8.50mm x 8.50mm) | |
|
0257040.PXAPCRTFUSE AUTO 40A 32VDC BLADE ATO |
6,297 |
|
Datasheet |
ATO® | Bulk | Active | Requires Holder | Automotive | 40 A | - | 32 V | - | 1kA | 3310.0 | cULus | -40°C ~ 105°C | Orange | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
MRT 500-BULKFUSE BRD MNT 500MA 250VAC RADIAL |
5,414 |
|
Datasheet |
MRT | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 250 V | - | Slow Blow | 50A | 1.7 | AEC-Q200, CCC, CE, CSA, cURus, SEMKO, VDE | -55°C ~ 125°C | - | 0.329" Dia x 0.303" H (8.35mm x 7.70mm) | |
|
|
MRT 800-BULKFUSE BRD MNT 800MA 250VAC RADIAL |
4,916 |
|
Datasheet |
MRT | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 800 mA | 250 V | - | Slow Blow | 50A | 4.2 | AEC-Q200, CCC, CE, CSA, cURus, SEMKO, VDE | -55°C ~ 125°C | - | 0.329" Dia x 0.303" H (8.35mm x 7.70mm) | |
|
029707.5HFUSE AUTO 7.5A 32VDC BLADE MINI |
4,350 |
|
Datasheet |
MINI® 297 | Box | Active | Requires Holder | Automotive | 7.5 A | - | 32 V | Fast Blow | 1kA | 68.0 | UR | -40°C ~ 125°C | Brown | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) |
