Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0895050.PXCFUSE BRD MNT 50A 58VDC AUTO LINK |
4,445 |
|
Datasheet |
JCASE® | Bulk | Active | Requires Holder | Board Mount (Cartridge Style Excluded) | 50 A | - | 58 V | - | 1kA | 4880.0 | - | -40°C ~ 125°C | - | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
|
BK/AGC-B-2FUSE GLASS 2A 250VAC 3AB 3AG |
8,360 |
|
Datasheet |
AGC | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 2 A | 250 V | - | Fast Blow | 100A | 17.52 | CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
BK/AGC-B-5FUSE GLASS 5A 250VAC 3AB 3AG |
2,466 |
|
Datasheet |
AGC | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 5 A | 250 V | - | Fast Blow | 200A | 131.5 | CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
BK/MDA-V-25A-RFUSE CERM 25A 250VAC 125VDC 3AB |
9,248 |
|
Datasheet |
MDA | Bulk | Obsolete | Through Hole | Cartridge, Ceramic | 25 A | 250 V | 125 V | Slow Blow | 1.5kA AC, 10kA DC | 734.69 | CSA, UR | - | Black | 0.266" Dia x 1.292" L (6.76mm x 32.82mm) | |
|
|
BK1/TDC11-60MAFUSE GLASS 60MA 1KVAC 3AB 3AG |
4,845 |
|
Datasheet |
- | Bulk | Active | Requires Holder | Cartridge, Glass | 60 mA | 1 kV | - | Slow Blow | 600mA | - | - | - | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
BK1/TDC11-7AFUSE GLASS 7A 150VAC 3AB 3AG |
2,481 |
|
Datasheet |
- | Bulk | Active | Requires Holder | Cartridge, Glass | 7 A | 150 V | - | Slow Blow | 70A | - | - | - | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
BK/GDA-V-2AFUSE CERAMIC 2A 250VAC 5X20MM |
3,871 |
|
Datasheet |
GDA | Bulk | Active | Through Hole | Cartridge, Ceramic | 2 A | 250 V | - | Fast Blow | 1.5kA | 2.0 | CCC, CSA, IMQ, SEMKO, UR | - | - | 0.218" Dia x 0.831" L (5.54mm x 21.10mm) | |
|
|
BK/GDA-V-400MAFUSE CERAMIC 400MA 250VAC 5X20MM |
9,912 |
|
Datasheet |
GDA | Bulk | Active | Through Hole | Cartridge, Ceramic | 400 mA | 250 V | - | Fast Blow | 1.5kA | 0.018 | CSA, UR | - | - | 0.218" Dia x 0.831" L (5.54mm x 21.10mm) | |
|
|
BK/GDA-V-500MAFUSE CERAMIC 500MA 250VAC 5X20MM |
3,947 |
|
Datasheet |
GDA | Bulk | Active | Through Hole | Cartridge, Ceramic | 500 mA | 250 V | - | Fast Blow | 1.5kA | 0.038 | CCC, CSA, IMQ, SEMKO, UR | - | - | 0.218" Dia x 0.831" L (5.54mm x 21.10mm) | |
|
BK/GDB-V-32MAFUSE GLASS 32MA 250VAC 5X20MM |
4,001 |
|
Datasheet |
GDB | Bulk | Active | Through Hole | Cartridge, Glass | 32 mA | 250 V | - | Fast Blow | 35A | - | - | - | - | 0.218" Dia x 0.831" L (5.54mm x 21.10mm) | |
|

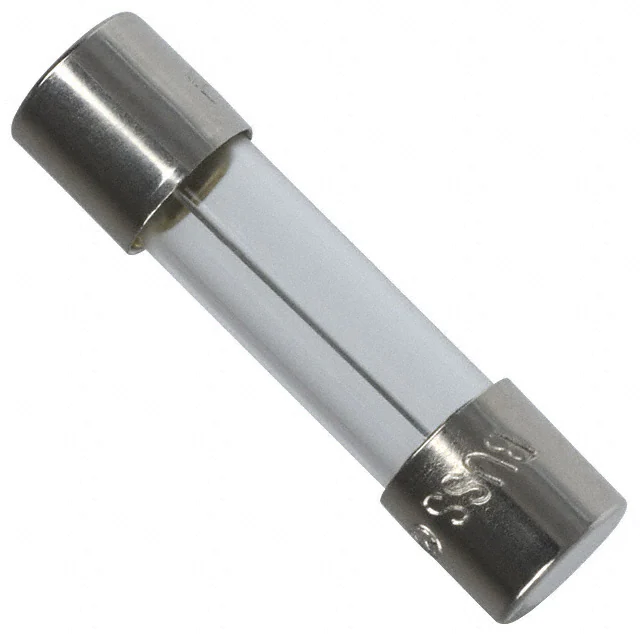

BK1/S500-3.15RYFUSE GLASS 3.15A 250VAC 5X20MM |
6,163 |
|
Datasheet |
S500 | Bulk | Active | Requires Holder | Cartridge, Glass | 3.15 A | 250 V | - | Fast Blow | 35A | 13.0 | BSI, CCC, cURus, IMQ, PSE, SEMKO, VDE | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
TR2/S505-V-6.3RFUSE CERAMIC 6.3A 250VAC 5X20MM |
8,811 |
|
Datasheet |
S505 | Tape & Reel (TR) | Obsolete | Through Hole | Cartridge, Ceramic | 6.3 A | 250 V | - | Slow Blow | 1.5kA | 111.0 | BSI, CCC/CQC, CSA, cURus, IMQ, KC, PSE/JET, SEMKO, VDE | - | - | 0.218" Dia x 0.831" L (5.54mm x 21.10mm) | |
|
|
TR2/S505-V3.15RFUSE CERAMIC 3.15A 250VAC 5X20MM |
7,570 |
|
Datasheet |
S505 | Tape & Reel (TR) | Obsolete | Through Hole | Cartridge, Ceramic | 3.15 A | 250 V | - | Slow Blow | 1.5kA | 36.6 | BSI, CCC/CQC, CSA, cURus, IMQ, KC, PSE/JET, SEMKO, VDE | - | - | 0.218" Dia x 0.831" L (5.54mm x 21.10mm) | |
|
|
BK/PCB-1-1/2-SDFUSE BRD MNT 1.5A 250VAC 450VDC |
9,416 |
|
- |
PC-Tron® | Bulk | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 1.5 A | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | - | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
|
BK/PCB-1/2-SDFUSE BRD MNT 500MA 250VAC 450VDC |
6,371 |
|
- |
PC-Tron® | Bulk | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | 0.006 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
|
BK/PCB-1-SDFUSE BRD MT 1A 250VAC 450VDC RAD |
9,605 |
|
- |
PC-Tron® | Bulk | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | - | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
|
BK/PCB-2-1/2-SDFUSE BRD MNT 2.5A 250VAC 450VDC |
2,914 |
|
- |
PC-Tron® | Bulk | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 2.5 A | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | 0.3 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
|
BK/PCB-2-SDFUSE BRD MT 2A 250VAC 450VDC RAD |
7,756 |
|
- |
PC-Tron® | Bulk | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | 0.2 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
|
BK/PCB-3/4-SDFUSE BRD MNT 750MA 250VAC 450VDC |
4,039 |
|
- |
PC-Tron® | Bulk | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 750 mA | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | 0.016 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
|
BK/PCB-3-SDFUSE BRD MT 3A 250VAC 450VDC RAD |
2,928 |
|
- |
PC-Tron® | Bulk | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 3 A | 250 V | 450 V | Fast Blow | 50A AC, 4.4kA DC | 0.75 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) |
