Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

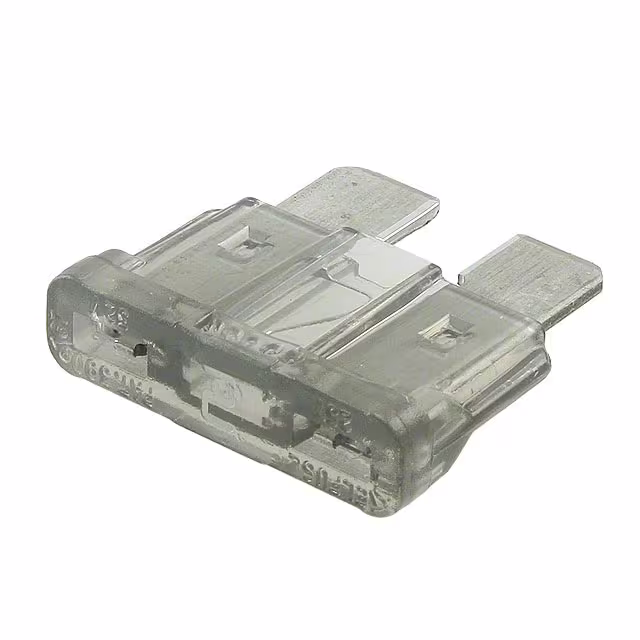

0257002.UFUSE AUTO 2A 32VDC BLADE 500 PC |
6,909 |
|
Datasheet |
ATO® | Bulk | Obsolete | Requires Holder | Automotive | 2 A | - | 32 V | Fast Blow | 1kA | 1.4 | cULus | -40°C ~ 105°C | Gray | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
0257005.UFUSE AUTO 5A 32VDC BLADE 500 PC |
4,743 |
|
Datasheet |
ATO® | Bulk | Obsolete | Requires Holder | Automotive | 5 A | - | 32 V | Fast Blow | 1kA | 26.0 | cULus | -40°C ~ 105°C | Tan | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
|
0257003.LFUSE AUTO 3A 32VDC BLADE 50 PC |
8,988 |
|
Datasheet |
ATO® | Bulk | Obsolete | Requires Holder | Automotive | 3 A | - | 32 V | Fast Blow | 1kA | 7.4 | cULus | -40°C ~ 105°C | Violet | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
|
0257005.LFUSE AUTO 5A 32VDC BLADE 50 PC |
4,712 |
|
Datasheet |
ATO® | Bulk | Obsolete | Requires Holder | Automotive | 5 A | - | 32 V | Fast Blow | 1kA | 26.0 | cULus | -40°C ~ 105°C | Tan | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
|
0257010.LFUSE AUTO 10A 32VDC BLADE 50 PC |
2,597 |
|
Datasheet |
ATO® | Bulk | Obsolete | Requires Holder | Automotive | 10 A | - | 32 V | Fast Blow | 1kA | 115.0 | cULus | -40°C ~ 105°C | Red | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
|
0257015.LFUSE AUTO 15A 32VDC BLADE 50 PC |
4,849 |
|
Datasheet |
ATO® | Bulk | Obsolete | Requires Holder | Automotive | 15 A | - | 32 V | Fast Blow | 1kA | 340.0 | cULus | -40°C ~ 105°C | Blue | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
|
0257020.LFUSE AUTO 20A 32VDC BLADE 50 PC |
6,454 |
|
Datasheet |
ATO® | Bulk | Obsolete | Requires Holder | Automotive | 20 A | - | 32 V | Fast Blow | 1kA | 520.0 | cULus | -40°C ~ 105°C | Yellow | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|

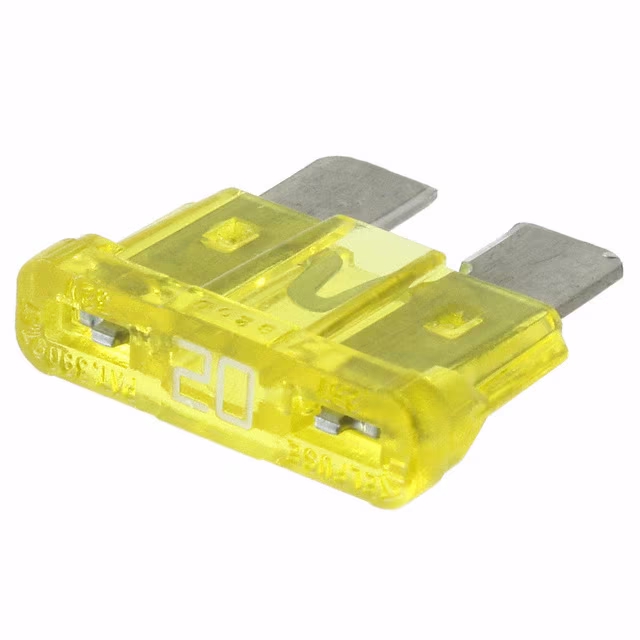

0257020.UFUSE AUTO 20A 32VDC BLADE 500 PC |
7,724 |
|
Datasheet |
ATO® | Bulk | Obsolete | Requires Holder | Automotive | 20 A | - | 32 V | Fast Blow | 1kA | 520.0 | cULus | -40°C ~ 105°C | Yellow | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
|
0257025.LFUSE AUTO 25A 32VDC BLADE 50 PC |
9,258 |
|
Datasheet |
ATO® | Bulk | Obsolete | Requires Holder | Automotive | 25 A | - | 32 V | Fast Blow | 1kA | 1080.0 | cULus | -40°C ~ 105°C | Clear | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
0257030.LFUSE AUTO 30A 32VDC BLADE 50 PC |
5,117 |
|
Datasheet |
ATO® | Bulk | Obsolete | Requires Holder | Automotive | 30 A | - | 32 V | Fast Blow | 1kA | 1510.0 | cULus | -40°C ~ 105°C | Green | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|

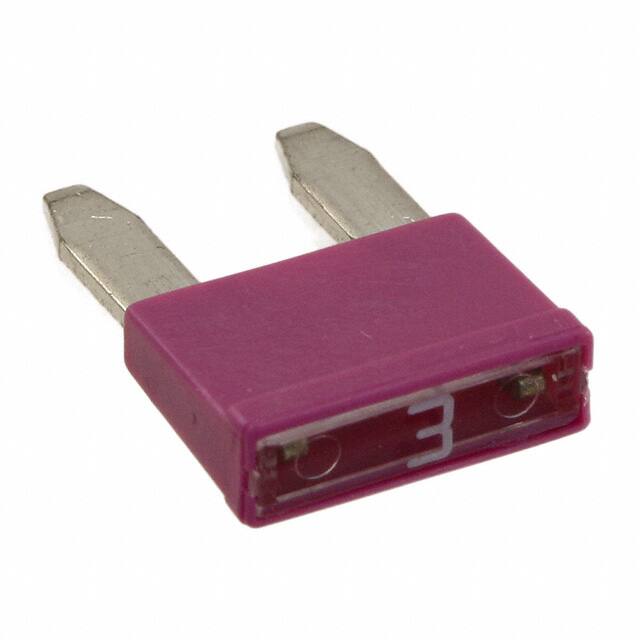

168.6785.4307FUSE AUTOMOTIVE 3A 32VDC BLADE |
3,812 |
|
- |
MINI® FK1 | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 3 A | - | 32 V | Fast Blow | 1kA | 7.45 | cULus | - | Violet | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) | |
|
168.6785.4407FUSE AUTOMOTIVE 4A 32VDC BLADE |
9,711 |
|
- |
MINI® FK1 | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 4 A | - | 32 V | Fast Blow | 1kA | 16.7 | cULus | - | Pink | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) | |
|
168.6785.4507FUSE AUTOMOTIVE 5A 32VDC BLADE |
3,118 |
|
- |
MINI® FK1 | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 5 A | - | 32 V | Fast Blow | 1kA | 19.8 | cULus | - | Tan | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) | |
|
168.6585.5106FUSE AUTOMOTIVE 10A 32VDC RADIAL |
8,459 |
|
Datasheet |
MINI® FP1 | Bulk | Discontinued at Digi-Key | Through Hole | Automotive | 10 A | - | 32 V | Fast Blow | 1kA | 79.2 | cULus | - | Red | 0.469" L x 0.150" W x 0.335" H (11.90mm x 3.80mm x 8.50mm) | |
|
168.6585.5156FUSE AUTOMOTIVE 15A 32VDC RADIAL |
6,942 |
|
Datasheet |
MINI® FP1 | Bulk | Discontinued at Digi-Key | Through Hole | Automotive | 15 A | - | 32 V | Fast Blow | 1kA | 178.0 | cULus | - | Blue | 0.469" L x 0.150" W x 0.335" H (11.90mm x 3.80mm x 8.50mm) | |
|
02173.15XBPFUSE GLASS 3.15A 250VAC 5X20MM |
7,334 |
|
Datasheet |
217 | Bulk | Discontinued at Digi-Key | Requires Holder | Cartridge, Glass | 3.15 A | 250 V | - | Fast Blow | 35A | 17.72 | BSI, CE, CCC, CSA, KC, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0217002.XBPFUSE GLASS 2A 250VAC 5X20MM |
5,844 |
|
Datasheet |
217 | Bulk | Discontinued at Digi-Key | Requires Holder | Cartridge, Glass | 2 A | 250 V | - | Fast Blow | 35A | 5.73 | BSI, CE, CCC, CSA, KC, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
02161015.MXEPFUSE CERAMIC 15A 250VAC 5X20MM |
5,216 |
|
Datasheet |
216 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 15 A | 250 V | - | Fast Blow | - | - | - | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
02161015.MXPFUSE CERAMIC 15A 250VAC 5X20MM |
6,552 |
|
Datasheet |
216 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 15 A | 250 V | - | Fast Blow | - | - | - | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0215001.MXF34PFUSE CERAMIC 1A 250VAC RADIAL |
7,112 |
|
Datasheet |
215 | Bulk | Active | Through Hole | Cartridge, Ceramic | 1 A | 250 V | - | Slow Blow | 1.5kA | 1.52 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
