Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5VTP 2.5-RFUSE GLASS 2.5A 250VAC 5X20MM |
2,893 |
|
Datasheet |
5VTP | Bulk | Obsolete | Through Hole | Cartridge, Glass | 2.5 A | 250 V | - | Slow Blow | 35A | 137.0 | CCC, CE, CSA, cULus, SEMKO, VDE | -55°C ~ 125°C | - | 0.217" Dia x 0.827" L (5.50mm x 21.00mm) | |
|
|
5VTP 2-RFUSE GLASS 2A 250VAC 5X20MM |
4,858 |
|
Datasheet |
5VTP | Bulk | Obsolete | Through Hole | Cartridge, Glass | 2 A | 250 V | - | Slow Blow | 35A | 92.0 | CCC, CE, CSA, cULus, SEMKO, VDE | -55°C ~ 125°C | - | 0.217" Dia x 0.827" L (5.50mm x 21.00mm) | |
|
|
5VTP 3.15-RFUSE GLASS 3.15A 250VAC 5X20MM |
5,612 |
|
Datasheet |
5VTP | Bulk | Obsolete | Through Hole | Cartridge, Glass | 3.15 A | 250 V | - | Slow Blow | 35A | 203.0 | CCC, CE, CSA, cULus, SEMKO, VDE | -55°C ~ 125°C | - | 0.217" Dia x 0.827" L (5.50mm x 21.00mm) | |
|
|
5VTP 4-RFUSE GLASS 4A 250VAC 5X20MM |
3,485 |
|
Datasheet |
5VTP | Bulk | Obsolete | Through Hole | Cartridge, Glass | 4 A | 250 V | - | Slow Blow | 40A | 300.0 | CCC, CE, CSA, cULus, SEMKO, VDE | -55°C ~ 125°C | - | 0.217" Dia x 0.827" L (5.50mm x 21.00mm) | |
|
|
5VTP 5-RFUSE GLASS 5A 250VAC 5X20MM |
6,590 |
|
Datasheet |
5VTP | Bulk | Obsolete | Through Hole | Cartridge, Glass | 5 A | 250 V | - | Slow Blow | 50A | 444.0 | CCC, CE, CSA, cULus, SEMKO, VDE | -55°C ~ 125°C | - | 0.217" Dia x 0.827" L (5.50mm x 21.00mm) | |
|
|
5VTP 6.3-RFUSE GLASS 6.3A 250VAC 5X20MM |
4,498 |
|
Datasheet |
5VTP | Bulk | Obsolete | Through Hole | Cartridge, Glass | 6.3 A | 250 V | - | Slow Blow | 63A | 658.0 | CCC, CE, CSA, cULus, SEMKO, VDE | -55°C ~ 125°C | - | 0.217" Dia x 0.827" L (5.50mm x 21.00mm) | |
|
MRF 1-BULKFUSE BOARD MNT 1A 250VAC RADIAL |
8,719 |
|
Datasheet |
MRF | Bulk | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | - | Fast Blow | 35A | 0.7 | AEC-Q200, CE, CSA, cULus, PSE, SEMKO, VDE | -55°C ~ 125°C | - | 0.329" Dia x 0.303" H (8.35mm x 7.70mm) | |
|
0456020.ERGFUSE BRD MT 20A 125VAC 100VDC |
4,102 |
|
- |
NANO²® 456 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | 125 V | 100 V | Fast Blow | 100A AC, 300A DC | 18.0 | cULus, PSE | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | |
|
|
0456030.ERGFUSE BRD MT 30A 125VAC 72VDC SMD |
8,355 |
|
- |
NANO²® 456 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 30 A | 125 V | 72 V | Fast Blow | 100A AC, 500A DC | 81.0 | cULus, PSE | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | |
|
166.6885.5501FUSE AUTO 50A 80VDC BLADE MAX |
3,467 |
|
- |
FK3 MAXI™ | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 50 A | - | 80 V | Slow Blow | 1kA | 25500.0 | cULus | - | Red | 1.169" L x 0.358" W x 0.839" H (29.70mm x 9.10mm x 21.30mm) | |
|
166.6885.5301FUSE AUTO 30A 80VDC BLADE MAX |
6,270 |
|
- |
FK3 MAXI™ | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 30 A | - | 80 V | Slow Blow | 1kA | 4950.0 | cULus | - | Green | 1.169" L x 0.358" W x 0.839" H (29.70mm x 9.10mm x 21.30mm) | |
|

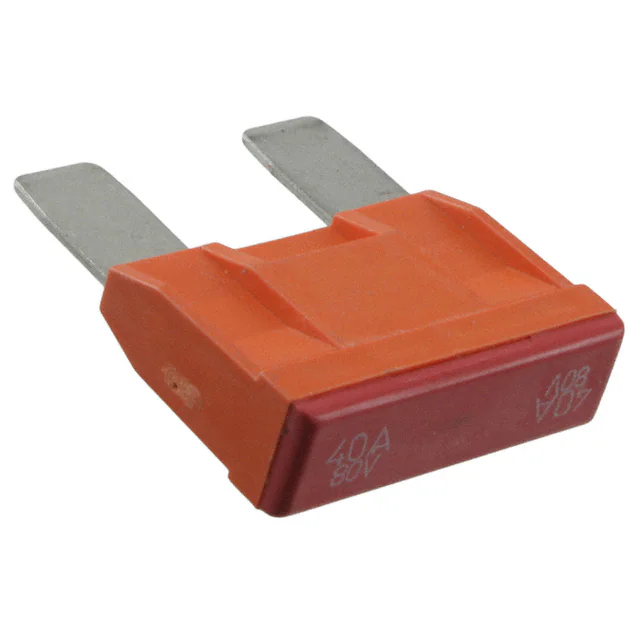

166.6885.5401FUSE AUTO 40A 80VDC BLADE MAX |
2,952 |
|
- |
FK3 MAXI™ | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 40 A | - | 80 V | Slow Blow | 1kA | 12800.0 | cULus | - | Orange | 1.169" L x 0.358" W x 0.839" H (29.70mm x 9.10mm x 21.30mm) | |
|
|
166.6885.5201FUSE AUTO 20A 80VDC BLADE MAX |
9,947 |
|
- |
FK3 MAXI™ | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 20 A | - | 80 V | Slow Blow | 1kA | 2160.0 | cULus | - | Yellow | 1.169" L x 0.358" W x 0.839" H (29.70mm x 9.10mm x 21.30mm) | |
|

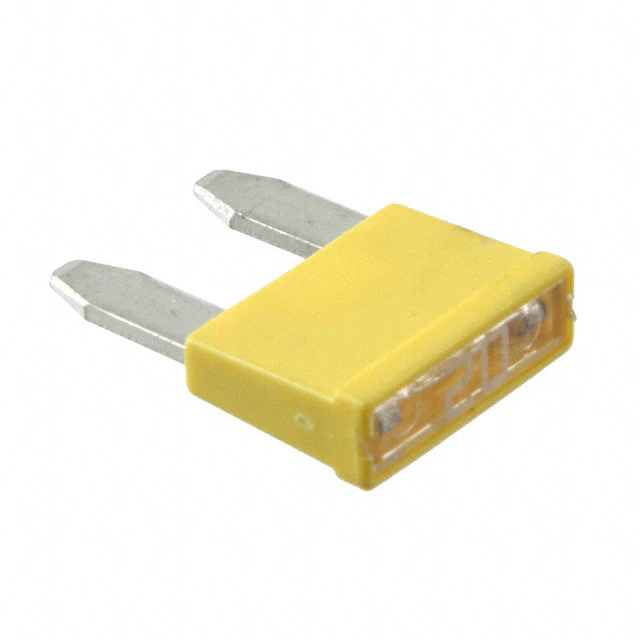

168.6785.5207FUSE AUTO 20A 32VDC BLADE MINI |
6,883 |
|
- |
FK1 MINI® | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 20 A | - | 32 V | Fast Blow | 1kA | 331.0 | cULus | - | Yellow | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) | |
|
168.6785.5157FUSE AUTO 15A 32VDC BLADE MINI |
2,575 |
|
- |
FK1 MINI® | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 15 A | - | 32 V | Fast Blow | 1kA | 178.0 | cULus | - | Blue | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) | |
|
168.6785.4207FUSE AUTOMOTIVE 2A 32VDC BLADE |
6,223 |
|
- |
FK1 MINI® | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 2 A | - | 32 V | Fast Blow | 1kA | 3.31 | cULus | - | Gray | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) | |
|
168.6785.5257FUSE AUTO 25A 32VDC BLADE MINI |
5,394 |
|
- |
FK1 MINI® | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 25 A | - | 32 V | Fast Blow | 1kA | 653.0 | cULus | - | Clear | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) | |
|

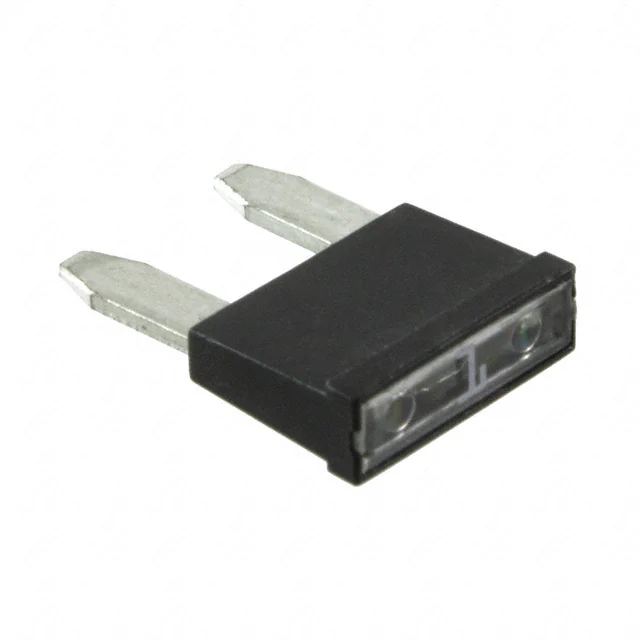

168.6785.4107FUSE AUTOMOTIVE 1A 32VDC BLADE |
6,298 |
|
- |
FK1 MINI® | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 1 A | - | 32 V | Fast Blow | 1kA | 0.83 | cULus | - | Black | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) | |
|
168.6785.4757FUSE AUTO 7.5A 32VDC BLADE MINI |
5,311 |
|
- |
FK1 MINI® | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 7.5 A | - | 32 V | Fast Blow | 1kA | 44.5 | cULus | - | Brown | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) | |
|
168.6785.5107FUSE AUTO 10A 32VDC BLADE MINI |
5,662 |
|
- |
FK1 MINI® | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 10 A | - | 32 V | Fast Blow | 1kA | 79.2 | cULus | - | Red | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) |
