Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7040.3170FUSE GLASS 6.3A 125VAC 5X20MM |
9,922 |
|
Datasheet |
D1TD | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 6.3 A | 125 V | - | Slow Blow | 50A | 800.0 | UR | -40°C ~ 70°C | - | 0.197" Dia x 0.787" L (5.00mm x 20.00mm) | |
|
|
7030.3210FUSE GLASS 100MA 220VAC 125VDC |
5,223 |
|
Datasheet |
D1TD | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 100 mA | 220 V | 125 V | Slow Blow | 60A AC, 4kA DC | 0.028 | UR | -40°C ~ 70°C | - | 0.197" Dia x 0.787" L (5.00mm x 20.00mm) | |
|
7010.3650FUSE GLASS 20A 32VAC 5X20MM |
2,351 |
|
Datasheet |
D1 | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 20 A | 32 V | - | Fast Blow | 300A | 1800.0 | - | -40°C ~ 70°C | - | 0.197" Dia x 0.787" L (5.00mm x 20.00mm) | |
|

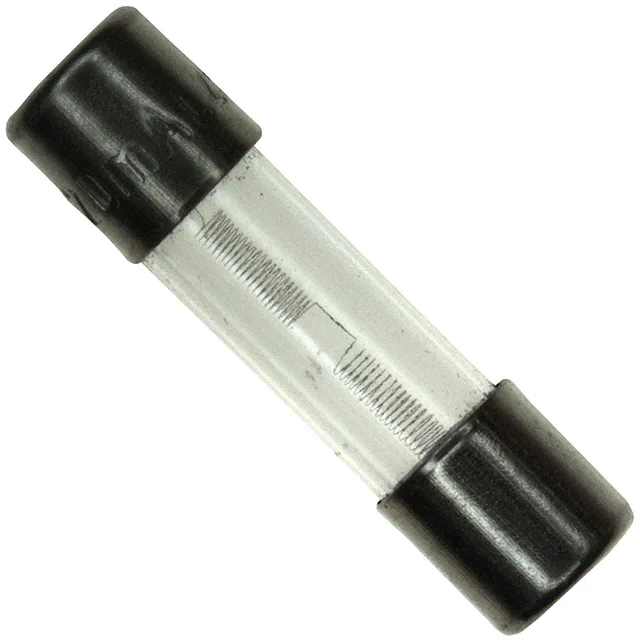

0034.3101FUSE GLASS 20MA 250VAC 5X20MM |
2,087 |
|
Datasheet |
FST 5x20 | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 20 mA | 250 V | - | Slow Blow | 35A | 0.0012 | - | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|

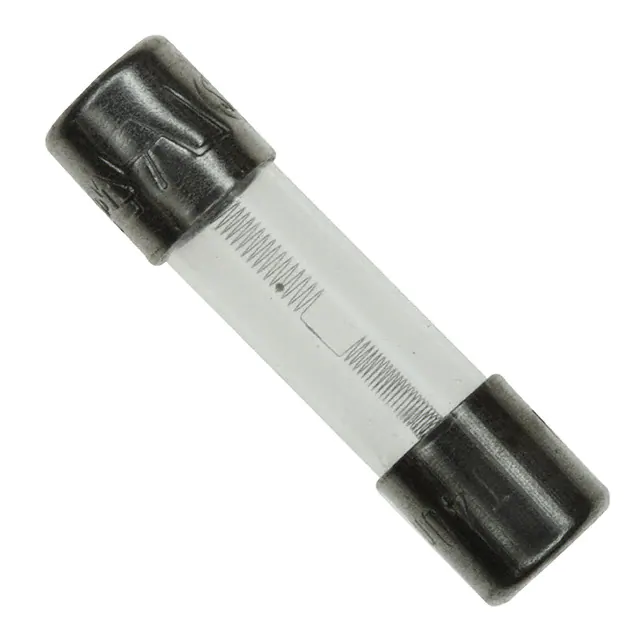

0034.3103FUSE GLASS 40MA 250VAC 5X20MM |
9,382 |
|
Datasheet |
FST 5x20 | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 40 mA | 250 V | - | Slow Blow | 35A | 0.0027 | CCC, cURus, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0034.3102FUSE GLASS 32MA 250VAC 5X20MM |
6,649 |
|
Datasheet |
FST 5x20 | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 32 mA | 250 V | - | Slow Blow | 35A | 0.0019 | cURus | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0001.2532.PTFUSE GLASS 6.3A 250VAC 63VDC 3AB |
3,101 |
|
Datasheet |
SPT 6.3x32 | Bulk | Obsolete | Through Hole | Cartridge, Glass | 6.3 A | 250 V | 63 V | Slow Blow | 1.5kA AC, 20kA DC | 224.0 | cURus | -40°C ~ 85°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
7100.0200.71FUSE BRD MNT 5A 125VAC/VDC 6DIP |
9,555 |
|
Datasheet |
PSC | Tube | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 125 V | Fast Blow | 50A | - | UR | -55°C ~ 125°C | - | 0.394" L x 0.394" W x 0.325" H (10.00mm x 10.00mm x 8.25mm) | |
|
|
7100.0160.71FUSE BRD MNT 1A 125VAC/VDC 6DIP |
4,476 |
|
Datasheet |
PSC | Tube | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 50A | - | UR | -55°C ~ 125°C | - | 0.394" L x 0.394" W x 0.325" H (10.00mm x 10.00mm x 8.25mm) | |
|
|
7100.0180.71FUSE BRD MNT 3A 125VAC/VDC 6DIP |
7,716 |
|
Datasheet |
PSC | Tube | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 3 A | 125 V | 125 V | Fast Blow | 50A | - | UR | -55°C ~ 125°C | - | 0.394" L x 0.394" W x 0.325" H (10.00mm x 10.00mm x 8.25mm) | |
|
|
162.7049.4802FUSE AUTO 8A 90VDC BLADE ATO/ATC |
7,152 |
|
- |
TF ATO® | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 8 A | - | 90 V | Slow Blow | 150A | 300.0 | - | - | White | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|
ICP-N50T104FUSE BOARD MNT 2A 50VAC/VDC RAD |
2,611 |
|
Datasheet |
ICP-N | Tape & Box (TB) | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 50 V | 50 V | Fast Blow | - | - | - | -55°C ~ 125°C | - | 0.197" L x 0.157" W x 0.250" H (5.00mm x 4.00mm x 6.35mm) | |
|
TR2/6125FA500MAFUSE BRD MT 500MA 125VAC/VDC SMD |
5,602 |
|
Datasheet |
BRICK 6125FA | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.06 | CSA, UL | - | - | 0.240" L x 0.102" W x 0.102" H (6.10mm x 2.59mm x 2.59mm) | |
|
|
TR2/6125FA750MAFUSE BRD MT 750MA 125VAC/VDC SMD |
2,175 |
|
Datasheet |
BRICK 6125FA | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.07 | CSA, UL | - | - | 0.240" L x 0.102" W x 0.102" H (6.10mm x 2.59mm x 2.59mm) | |
|
|
TR2/6125FA15AFUSE BOARD MOUNT 15A 86VDC 2SMD |
8,070 |
|
Datasheet |
BRICK 6125FA | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | - | 86 V | Fast Blow | 10kA | 124.0 | CSA, UL | - | - | 0.240" L x 0.102" W x 0.102" H (6.10mm x 2.59mm x 2.59mm) | |
|
0215012.MFUSE CERAMIC 12A 250VAC 5X20MM |
7,825 |
|
Datasheet |
215 | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 12 A | 250 V | - | Slow Blow | 1.5kA | 515.0 | CSA, K-MARK, METI, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0215012.MXEFUSE CERAMIC 12A 250VAC 5X20MM |
4,917 |
|
Datasheet |
215 | Bulk | Obsolete | Through Hole | Cartridge, Ceramic | 12 A | 250 V | - | Slow Blow | 1.5kA | 515.0 | CSA, K-MARK, METI, UL | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
021301.6MFUSE GLASS 1.6A 250VAC 5X20MM |
7,110 |
|
Datasheet |
213 | Bag | Obsolete | Requires Holder | Cartridge, Glass | 1.6 A | 250 V | - | Slow Blow | 35A | 44.2 | BSI, CCC, CE, CSA, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
021301.6MXEFUSE GLASS 1.6A 250VAC 5X20MM |
2,800 |
|
- |
213 | Bag | Obsolete | Through Hole | Cartridge, Glass | 1.6 A | 250 V | - | Slow Blow | 35A | 44.2 | BSI, CCC, CE, CSA, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
02393.15HFUSE GLASS 3.15A 250VAC 5X20MM |
6,670 |
|
Datasheet |
239 | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 3.15 A | 250 V | - | Slow Blow | 100A | 131.5 | CSA, K-MARK, METI, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
