Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BK/MDL-V-3-1/2FUSE GLASS 3.5A 250VAC 3AB 3AG |
6,589 |
|
Datasheet |
MDL | Bulk | Active | Through Hole | Cartridge, Glass | 3.5 A | 250 V | - | Slow Blow | - | - | - | - | - | 0.266" Dia x 1.292" L (6.76mm x 32.82mm) | |
|
|
BK/MDL-V-3FUSE GLASS 3A 250VAC 3AB 3AG |
2,821 |
|
Datasheet |
MDL | Bulk | Active | Through Hole | Cartridge, Glass | 3 A | 250 V | - | Slow Blow | 100A | 67.5 | CSA, UL | - | - | 0.266" Dia x 1.292" L (6.76mm x 32.82mm) | |
|

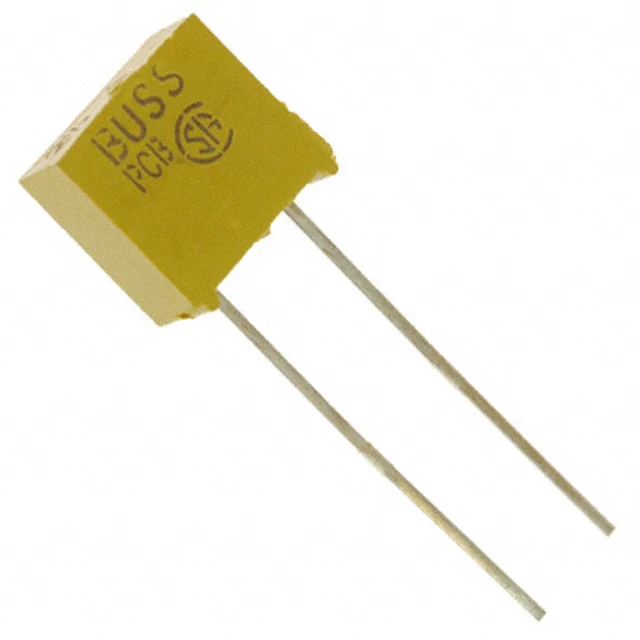

TR/PCB-1FUSE BRD MT 1A 250VAC 450VDC RAD |
8,339 |
|
Datasheet |
PC-Tron® | Tape & Reel (TR) | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | 0.02 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
|
TR/PCB-2FUSE BRD MT 2A 250VAC 450VDC RAD |
7,230 |
|
Datasheet |
PC-Tron® | Tape & Reel (TR) | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | 0.2 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
|
TR/PCB-1/2FUSE BRD MNT 500MA 250VAC 450VDC |
9,137 |
|
Datasheet |
PC-Tron® | Tape & Reel (TR) | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | 0.006 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
BK/ABC-V-2-1/2FUSE CERM 2.5A 250VAC 125VDC 3AB |
5,995 |
|
Datasheet |
ABC | Bulk | Obsolete | Through Hole | Cartridge, Ceramic | 2.5 A | 250 V | 125 V | Fast Blow | 100A AC, 10kA DC | 8.53 | CSA, UL | - | - | 0.266" Dia x 1.292" L (6.76mm x 32.82mm) | |
|
|
TR/PCB-2-1/2FUSE BRD MNT 2.5A 250VAC 450VDC |
8,562 |
|
Datasheet |
PC-Tron® | Tape & Reel (TR) | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 2.5 A | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | 0.3 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
BK/GMA-63MAFUSE GLASS 63MA 250VAC 5X20MM |
6,828 |
|
Datasheet |
GMA | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 63 mA | 250 V | - | Fast Blow | 35A | 2.4E-4 | CCC, CSA, MITI, UL | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|

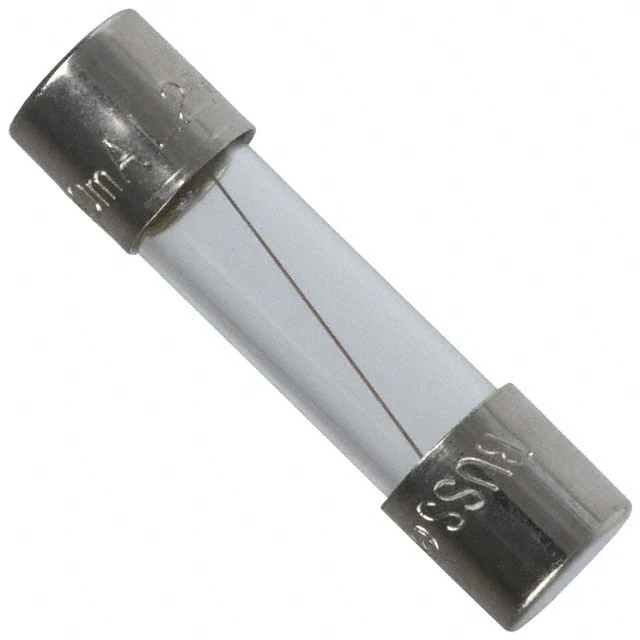

BK/S506-8AFUSE GLASS 8A 250VAC 5X20MM |
6,455 |
|
Datasheet |
S506 | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 8 A | 250 V | - | Slow Blow | 80A | 192.0 | BSI, CCC, CSA, cULus, IMQ, MITI, SEMKO, VDE | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
BK/S506-10AFUSE GLASS 10A 250VAC 5X20MM |
9,789 |
|
Datasheet |
S506 | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 10 A | 250 V | - | Slow Blow | 100A | 420.0 | BSI, CSA, cULus, IMQ, SEMKO, VDE | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
BK/S505-8AFUSE CERAMIC 8A 250VAC 5X20MM |
3,582 |
|
Datasheet |
S505 | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 8 A | 250 V | - | Slow Blow | 1.5kA | 311.0 | BSI, CSA, IMQ, SEMKO, UL, VDE | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
BK/S505-10AFUSE CERAMIC 10A 250VAC 5X20MM |
2,541 |
|
Datasheet |
S505 | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 10 A | 250 V | - | Slow Blow | 1.5kA | 397.0 | BSI, CSA, IMQ, SEMKO, UL, VDE | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
BK/S501-250MAFUSE CERAMIC 250MA 250VAC 5X20MM |
7,962 |
|
Datasheet |
S501 | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 250 mA | 250 V | - | Fast Blow | 1.5kA | 0.027 | CCC, CSA, cULus, IMQ, SEMKO, VDE | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
BK/GMC-125MAFUSE GLASS 125MA 250VAC 5X20MM |
6,187 |
|
Datasheet |
GMC | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 125 mA | 250 V | - | Medium Blow | 35A | 0.014 | CSA, KC-MARK, UL | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
 Series.jpg)
|
TR/PCB-1-SDFUSE BRD MT 1A 250VAC 450VDC RAD |
5,050 |
|
- |
PC-Tron® | Tape & Reel (TR) | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | 0.02 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
|
TR/PCB-3-SDFUSE BRD MT 3A 250VAC 450VDC RAD |
4,688 |
|
- |
PC-Tron® | Tape & Reel (TR) | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 3 A | 250 V | 450 V | Fast Blow | 50A AC, 4.4kA DC | 0.75 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
TR/PCB-1-1/2-SDFUSE BRD MNT 1.5A 250VAC 450VDC |
6,292 |
|
- |
PC-Tron® | Tape & Reel (TR) | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 1.5 A | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | 0.09 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
|
BK/S501-10AFUSE CERAMIC 10A 250VAC 5X20MM |
7,398 |
|
Datasheet |
S501 | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 10 A | 250 V | - | Fast Blow | 1.5kA | - | CCC, CSA, cULus, IMQ, SEMKO, VDE | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
BK/S501-8AFUSE CERAMIC 8A 250VAC 5X20MM |
8,112 |
|
Datasheet |
S501 | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 8 A | 250 V | - | Fast Blow | 1.5kA | - | CCC, CSA, cULus, IMQ, SEMKO, VDE | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
BK/GMD-125MAFUSE GLASS 125MA 250VAC 5X20MM |
8,367 |
|
Datasheet |
GMD | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 125 mA | 250 V | - | Slow Blow | 35A | 0.043 | CSA, UL | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
