Fuseholders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Fuse Size | Current Rating (Amps) | For Use With/Related Products | Fuse Type | Fuseholder Type | Number of Circuits | Voltage | Orientation | Termination Style | Contact Material | Contact Finish | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

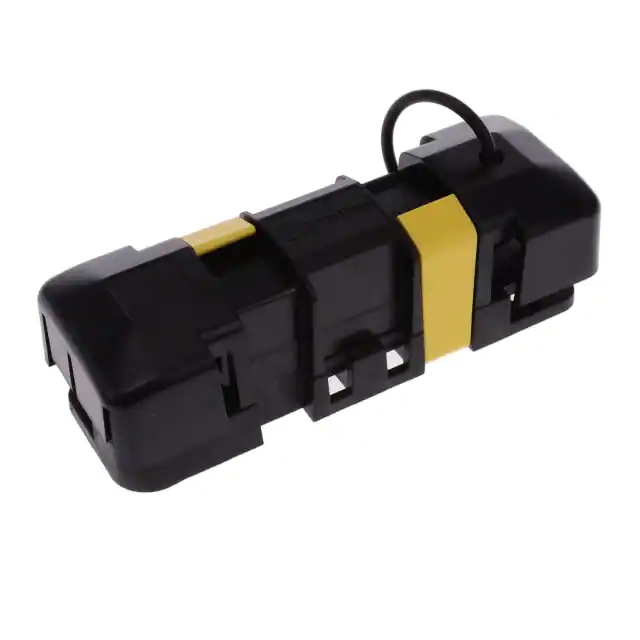

880014FUSE BLOCK SEALED MEGA-AMG |
62 |
|
Datasheet |
MEGA® SN | Bulk | Active | Chassis Mount | - | 500 A | - | Bolt Down | Block | 1 | 70V | - | Bolt Down | - | - | - |
|
2297813-327P DIRECT WIRE FUSE (6X) & RELA |
361 |
|
Datasheet |
- | Box | Active | Chassis Mount - Bracket; Panel Mount | 0.433" L x 0.152" W (11.00mm x 3.85mm) | - | Miniature (ATM) | Blade | Block | 6 | - | Vertical | Quick Connect | - | - | - |
|

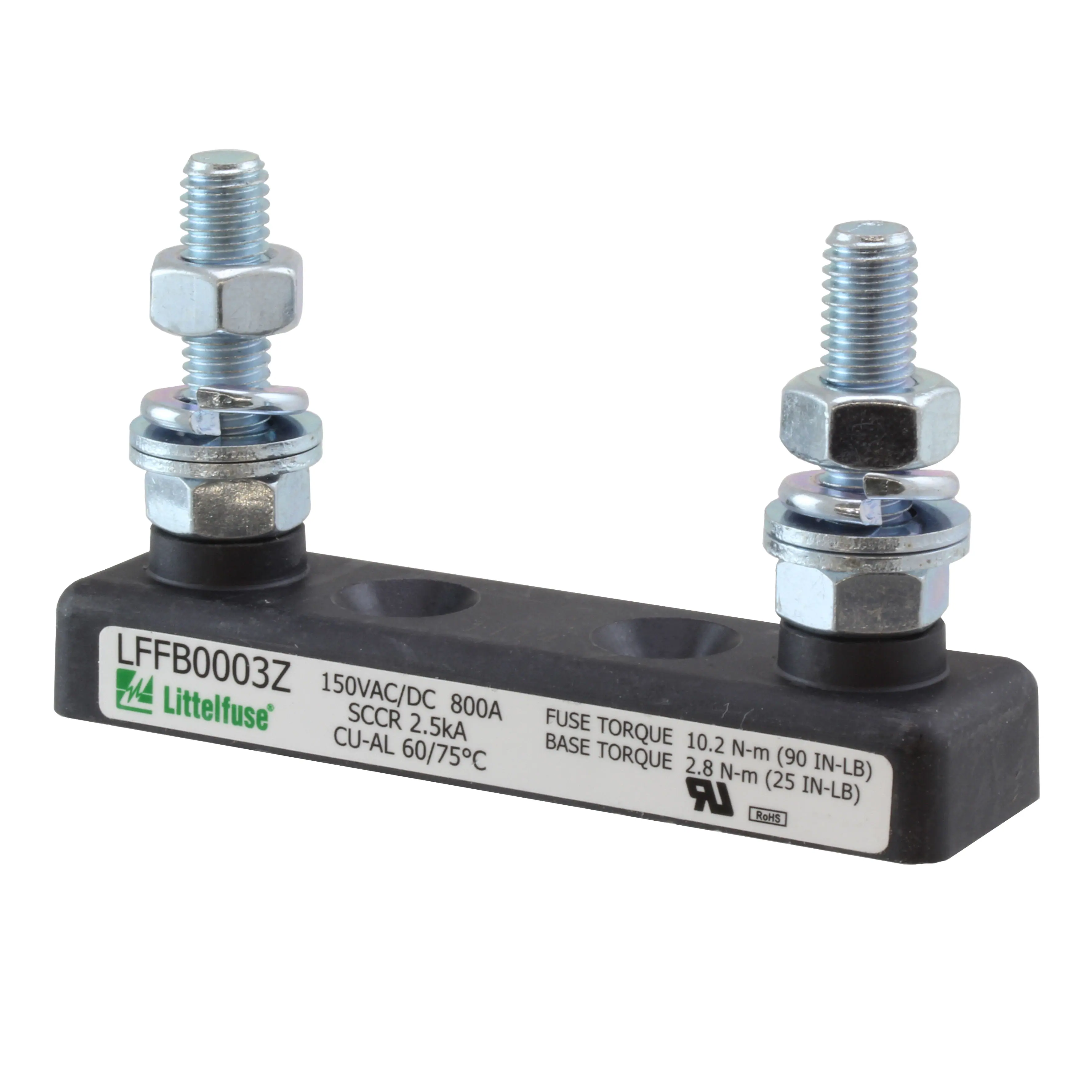

LFFB0003ZFUSE BLOK BLT DWN 150V 800A CHAS |
232 |
|
Datasheet |
LFFB | Box | Active | Chassis Mount | 2.441" (62mm) Pitch | 800 A | Fuse Strips | Bolt Down | Block | 1 | 150V | - | Bolt Down | Steel | Zinc | - |
|

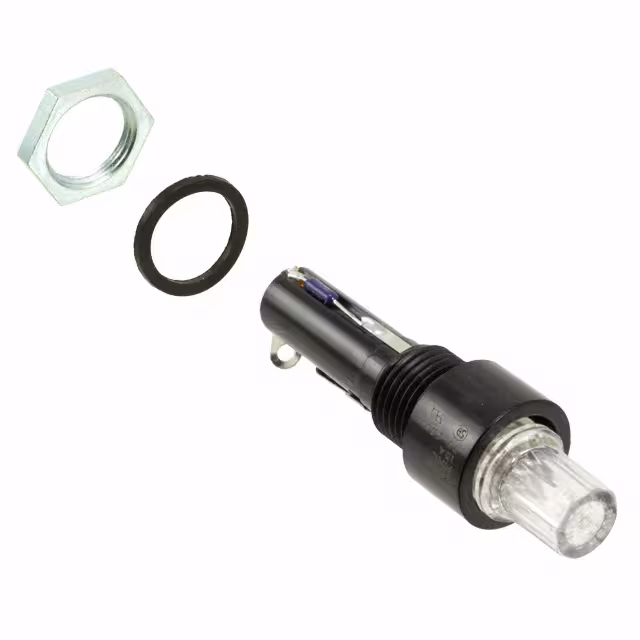

BK-HKLFUSE HLDR CART 250V 15A PNL MNT |
91 |
|
Datasheet |
HK | Bulk | Active | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 15 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | 1 | 250V | - | Solder Lug | - | - | - |
|

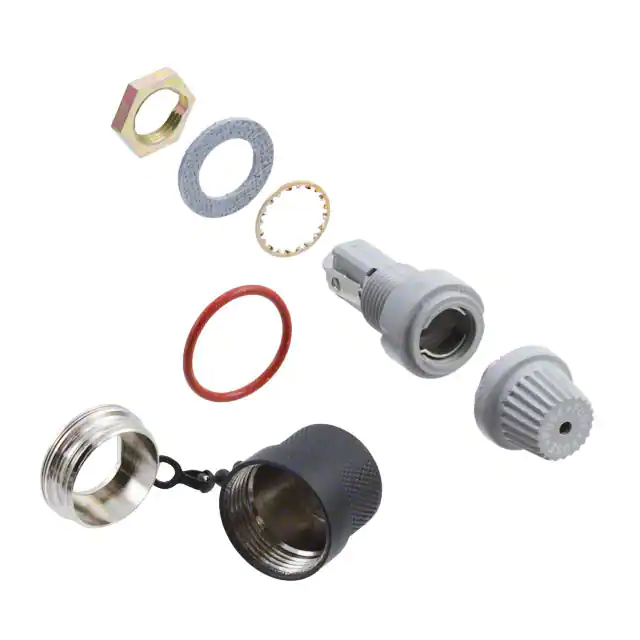

03400267ZFUSE HLDR CART 250V 30A PNL MNT |
70 |
|
Datasheet |
340 | Bulk | Active | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 30 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | 1 | 250V | - | Solder Lug | - | - | - |
|
CHCC1DIUFUSE HLDR CART 600V 30A DIN RAIL |
126 |
|
Datasheet |
CHCC | Bulk | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | Class CC Fuses, 13/32" x 1-1/2" | Cartridge | Holder | 1 | 600V | - | - | - | - | - |
|

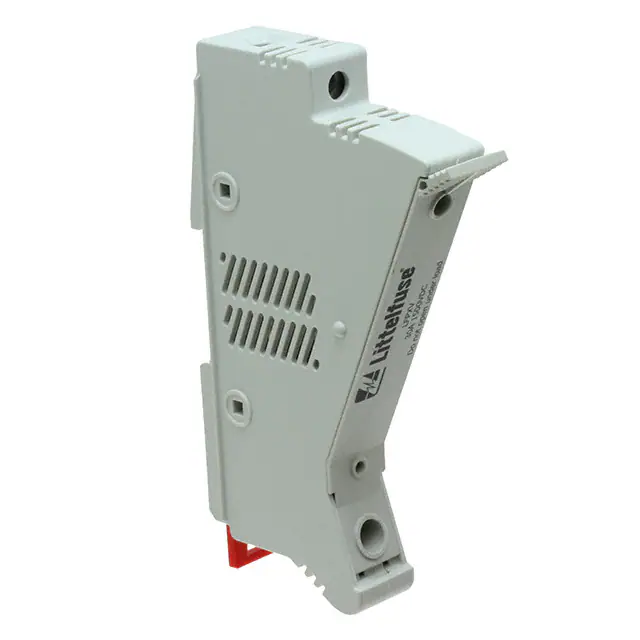

LFPXV0001ZFUSE HLDR 1500V 85MM PHOTOVO |
129 |
|
Datasheet |
POWR-GARD® LFPXV | Box | Active | DIN Rail | 0.394" Dia x 3.346" L (10mm x 85mm) | 30 A | 10mm x 85mm | Cartridge | Holder | 1 | 1500V | Vertical | Box Lug | Copper Alloy | Zinc | - |
|

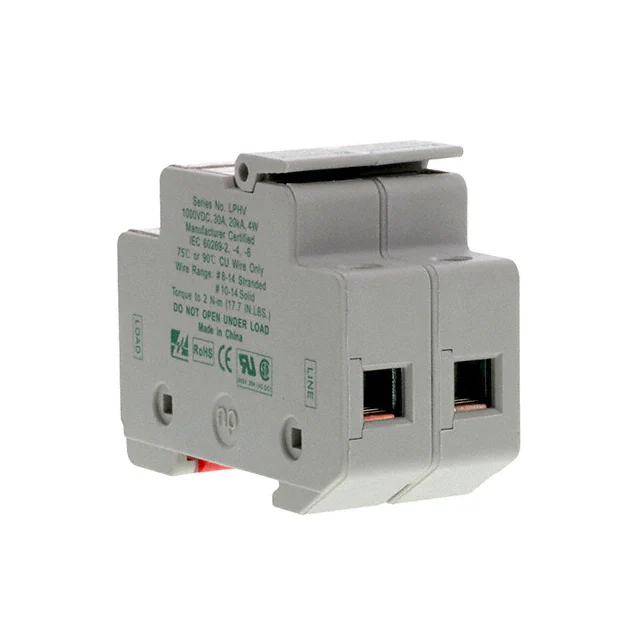

LPHV0002ZFUSE HLDR CART 1000V 30A DINRAIL |
99 |
|
Datasheet |
LPHV | Box | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Holder | 2 | 1000V | - | Screw Terminal, Pressure Plate | - | - | - |
|
USCC2600V 30A 2P CC ULTSFE |
45 |
|
Datasheet |
- | Box | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | Class CC | Cartridge | Block | 2 | 600V | Vertical | Screw Terminal | - | - | - |
|

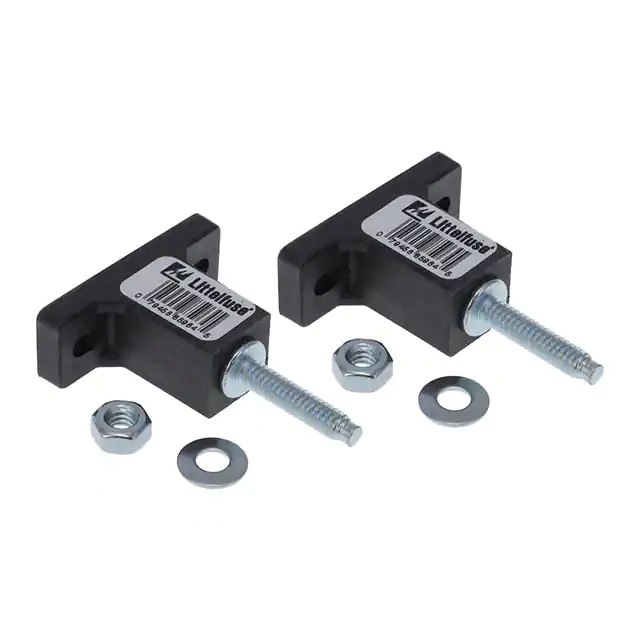

LSCR1011000V GENERAL PURPOSE FUSE STUD |
332 |
|
Datasheet |
POWR-GARD® LSCR | Box | Active | Chassis Mount | Custom | 400 A | 1/4" Stud Mounted Fuses | Bolt Down | Block | 1 | 1000V | - | Bolt Down | Steel | - | - |
|

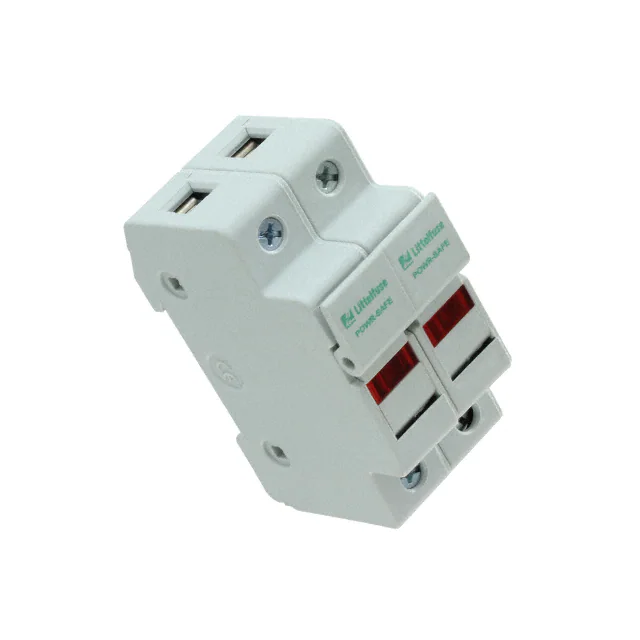

LPSM0002ZXIDFUSE HLDR CART 600V 30A DIN RAIL |
39 |
|
Datasheet |
POWR-GARD® LPSM | Box | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Holder | 2 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
|
LPSC0002ZXIDFUSE HLDR CART 600V 30A DIN RAIL |
83 |
|
Datasheet |
POWR-GARD® LPSC | Box | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | Class CC Fuses, 13/32" x 1-1/2" | Cartridge | Holder | 2 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
|
4164FUSE BLOCK BOLT DOWN 125V CHASS |
167 |
|
Datasheet |
- | Bulk | Active | Chassis Mount | 2.441" (62mm) Pitch | - | Fuse Strips | Bolt Down | Block | 1 | 125V | - | Bolt Down | - | - | - |
|
CHCC2DUFUSE HLDR CART 600V 30A DIN RAIL |
117 |
|
Datasheet |
CH | Bulk | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Holder | 2 | 600V | - | Screw Terminal | - | - | - |
|

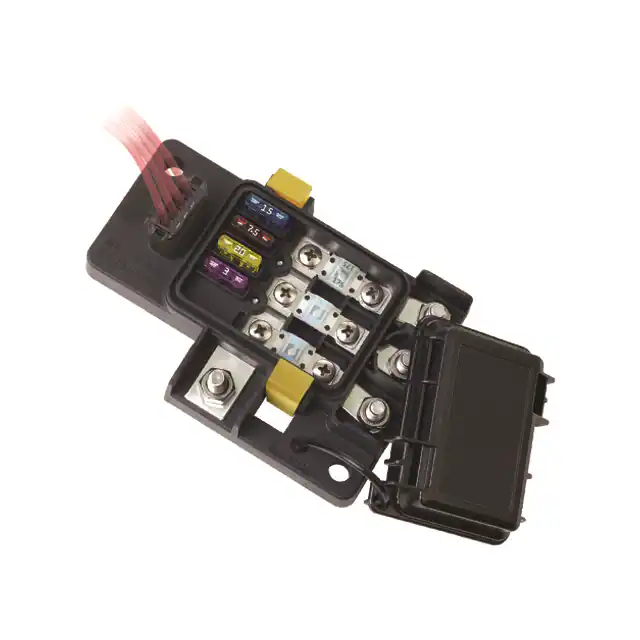

880073POWER DISTRIBUTION MODULE W/COVE |
41 |
|
Datasheet |
XT | Bulk | Active | Panel Mount | - | 350 A | ATO, MIDI | Blade, Bolt Down | Power Distribution Module | 7 | 32V | Horizontal and Vertical | Bolt Down, Quick Connect - 0.250" (6.3mm) | - | - | - |
|
LFJ600603CIDFUSE BLOK CART 600V 60A DIN RAIL |
61 |
|
Datasheet |
LF | Box | Active | DIN Rail | 1.063" Dia x 2.374" L (27mm x 60.3mm) | 60 A | Class J Fuses | Cartridge | Block | 3 | 600V | - | Box Lug | - | - | - |
|

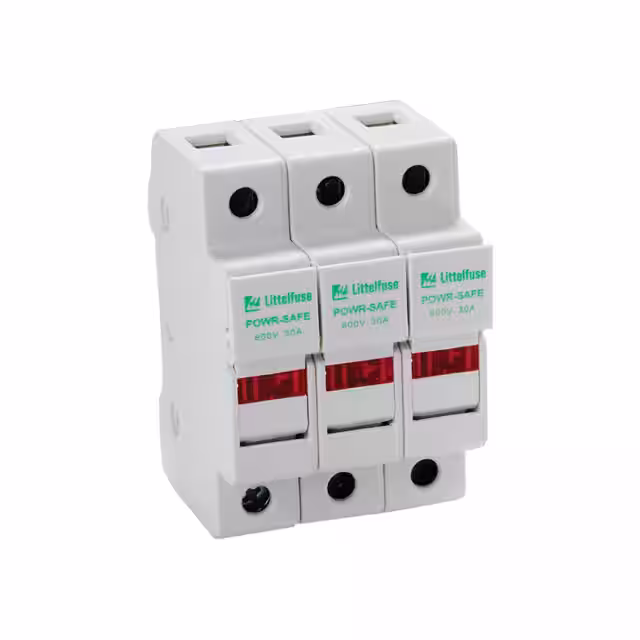

LPSC0003ZXIDFUSE HLDR CART 600V 30A DIN RAIL |
80 |
|
Datasheet |
POWR-GARD® LPSC | Box | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | Class CC Fuses, 13/32" x 1-1/2" | Cartridge | Holder | 3 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
|
LFG480603CDINRFUSE BLOK CART 480V 60A DIN RAIL |
289 |
|
Datasheet |
LF | Box | Active | DIN Rail | 0.394" Dia x 2.25" L (10mm x 57.15mm) | 60 A | Class G Fuses, 13/32" x 2-1/4" | Cartridge | Block | 3 | 480V | - | Box Lug | - | - | - |
|

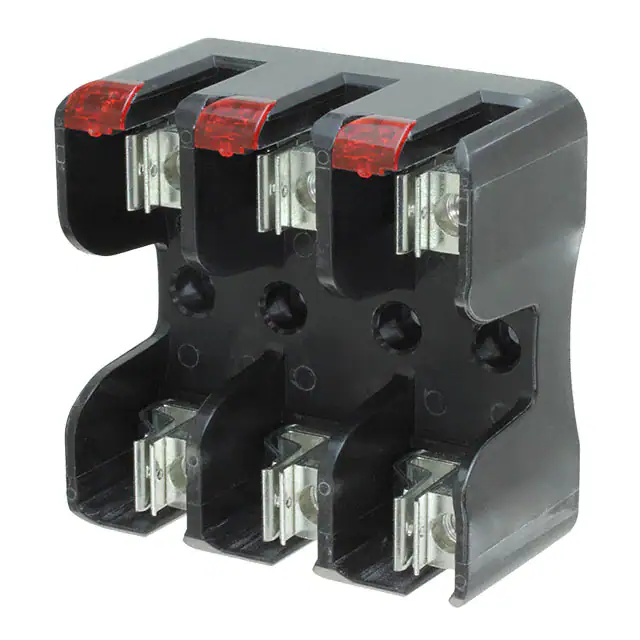

LFJ601003CIDFUSE BLOCK CART 600V 100A DIN |
40 |
|
Datasheet |
LF | Box | Active | DIN Rail | 1" Dia x 4.626" L (25.4mm x 117.5mm) | 100 A | Class J Fuses | Cartridge | Block | 3 | 600V | - | Box Lug | - | - | - |
|

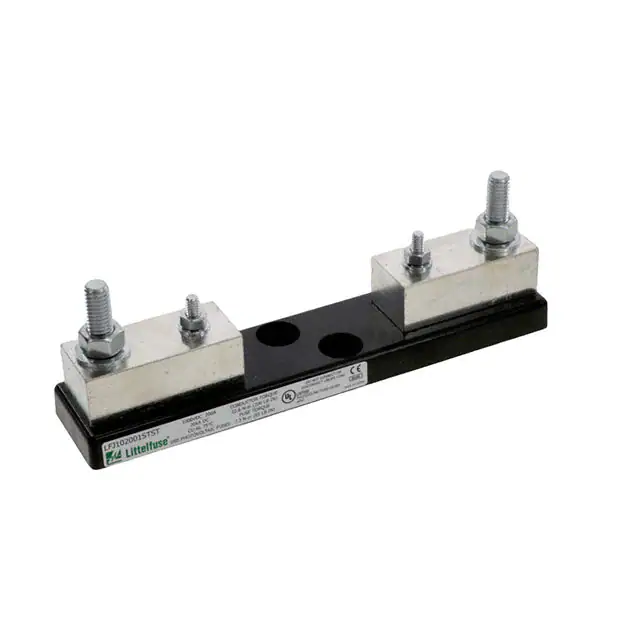

LFJ102001STST1000VDC HLDR STUD TERMINAL 200A |
37 |
|
Datasheet |
LFJ1000 | Box | Active | Chassis Mount | 1.496" Dia x 5.75" L (38mm x 146.05mm) | 200 A | Bolt Mount Cartridge Fuses | Bolt Down | Block | 1 | 1000V | Horizontal | Bolt Down | - | - | - |
