Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2100HT-100-V-RCFIXED IND 10UH 9.9A 12 MOHM TH |
277 |
|
Datasheet |
2100HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 10 µH | ±15% | 9.9 A | - | Shielded | 12mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
2100HT-100-H-RCFIXED IND 10UH 9.9A 12 MOHM TH |
197 |
|
Datasheet |
2100HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 10 µH | ±15% | 9.9 A | - | Shielded | 12mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2100HT-220-H-RCFIXED IND 22UH 6.7A 26 MOHM TH |
187 |
|
Datasheet |
2100HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 22 µH | ±15% | 6.7 A | - | Shielded | 26mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
|
2100HT-331-H-RCFIXED IND 330UH 2.7A 160 MOHM TH |
145 |
|
Datasheet |
2100HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 330 µH | ±15% | 2.7 A | - | Shielded | 160mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
1537-00MFIXED IND 150NH 2.74A 30 MOHM TH |
1,184 |
|
Datasheet |
Military, MIL-PRF-M15305, MS18130 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 150 nH | ±20% | 2.74 A | - | Unshielded | 30mOhm Max | 50 @ 25MHz | 525MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
IHLP6767GZERR82M11FIXED IND 820NH 56.5A 1.08 MOHM |
155 |
|
Datasheet |
IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 56.5 A | 45A | Shielded | 1.08mOhm Max | - | 36MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
HCF1007-6R8-RFIXED IND 6.8UH 9.4A 8.65MOHM SM |
1,691 |
|
Datasheet |
HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 9.4 A | 7.8A | Unshielded | 8.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | 0.262" (6.65mm) |
|
TCK-045FIXED IND 56UH 700MA 400MOHM SMD |
137 |
|
Datasheet |
- | Nonstandard | Bag | Active | - | - | 56 µH | ±20% | 700 mA | - | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.199" (5.05mm) |
|
WTX0630HR10MTFIXED IND 0.1020%UH 0.0007OHM 73 |
1,388 |
|
Datasheet |
WT | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±20% | - | - | Unshielded | - | - | - | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
177CDMCCDS-2R2MCFIXED IND 2.2UH 31.2A 2.65 MOHM |
325 |
|
Datasheet |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 31.2 A | 40.8A | Shielded | 2.65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
PA4344.222NLTFIXED IND 2.2UH 43.5A 2.7MOHM SM |
434 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | - | 43.5 A | 46A | Shielded | 2.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
4590R-394KFIXED IND 390UH 1.52A 288MOHM TH |
1,705 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 1.52 A | 880mA | Unshielded | 288mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
IHSM4825ER101LFIXED IND 100UH 730MA 672MOHM SM |
834 |
|
Datasheet |
IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 730 mA | 500mA | Unshielded | 672mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|

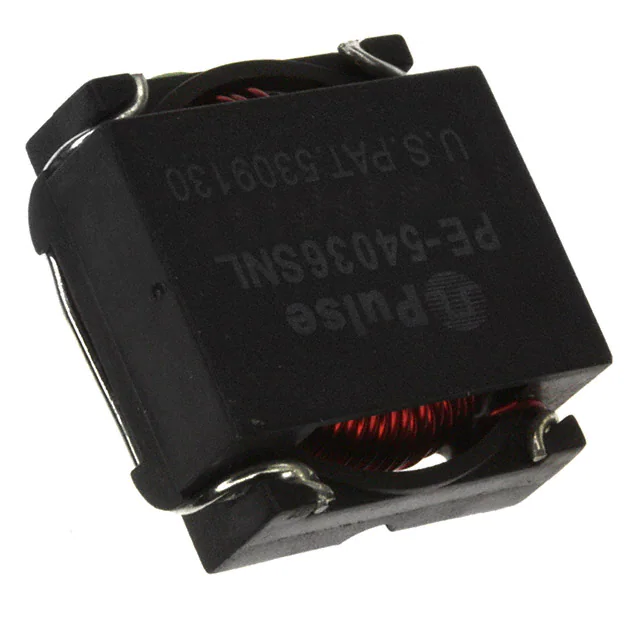

PE-54036SNLFIXED IND 168UH 1.81A 180MOHM SM |
168 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 168 µH | ±20% | 1.81 A | - | Shielded | 180mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
P0146NLFIXED IND 25UH 2.43A 75 MOHM SMD |
308 |
|
Datasheet |
Bobcat | Nonstandard | Tube | Active | Toroidal | - | 25 µH | - | 2.43 A | - | Unshielded | 75mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|

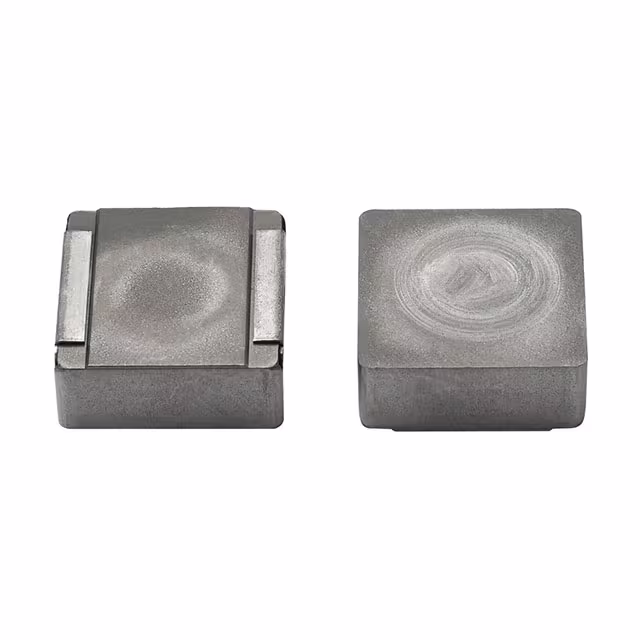

IHLP6767GZER330M5AIHLP-6767GZ-5A 33 20% ER E3 |
7,413 |
|
Datasheet |
IHLP-6767GZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 8.8 A | 9.4A | Shielded | 38.9mOhm Max | - | 4.43MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|

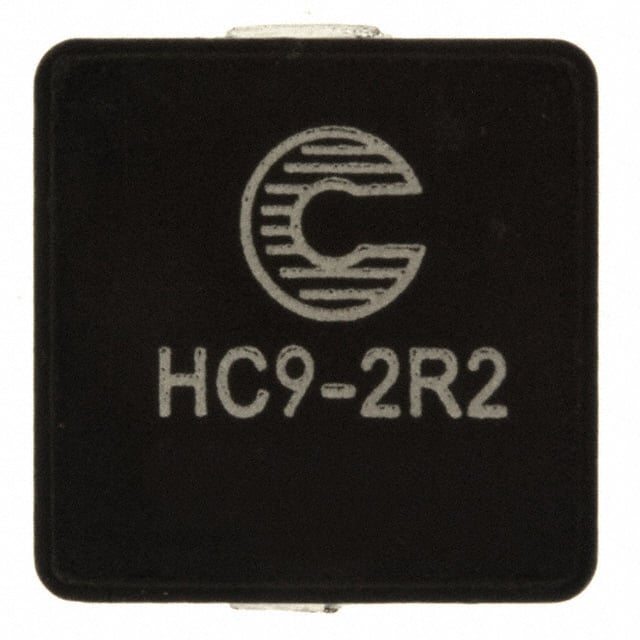

HC9-2R2-RFIXED IND 2.2UH 17.2A 3.37 MOHM |
137 |
|
Datasheet |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±15% | 17.2 A | 26A | Unshielded | 3.37mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.555" L x 0.516" W (14.10mm x 13.10mm) | 0.295" (7.50mm) |
|
|
2321-V-RCFIXED IND 560UH 3.6A 140 MOHM TH |
268 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 560 µH | ±15% | 3.6 A | - | Unshielded | 140mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2314-V-RCFIXED IND 150UH 5A 71 MOHM TH |
236 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 5 A | - | Unshielded | 71mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
IHLP6767GZER1R5M11FIXED IND 1.5UH 48A 1.62MOHM SMD |
227 |
|
Datasheet |
IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 48 A | 31A | Shielded | 1.62mOhm Max | - | 26MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
