Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLD2525GGER150M5AFIXED IND 15UH 3.2A 95.8MOHM SMD |
317 |
|
Datasheet |
IHLD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 3.2 A | 3A | Shielded | 95.8mOhm Max | - | 15.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.307" L x 0.286" W (7.80mm x 7.26mm) | 0.301" (7.65mm) |
|
7443310022FIXED IND 220NH 27A 1.5 MOHM SMD |
300 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 220 nH | ±20% | 27 A | 85A | Shielded | 1.5mOhm Max | - | 210MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
IHLD2525GGER100M5AFIXED IND 10UH 4.1A 66.34MOHM SM |
151 |
|
Datasheet |
IHLD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 4.1 A | 3.6A | Shielded | 66.34mOhm Max | - | 16.6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.307" L x 0.286" W (7.80mm x 7.26mm) | 0.301" (7.65mm) |
|
DRA127-680-RFIXED IND 68UH 2.333A 115MOHM SM |
143 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 2.333 A | 4.18A | Shielded | 115mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
IHLD2525GGER220M5AFIXED IND 22UH 2.2A 164.8MOHM SM |
132 |
|
Datasheet |
IHLD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 2.2 A | 2.5A | Shielded | 164.8mOhm Max | - | 10.9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.307" L x 0.286" W (7.80mm x 7.26mm) | 0.301" (7.65mm) |
|
1812R-562JFIXED IND 5.6UH 427MA 1.1OHM SMD |
11,749 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 5.6 µH | ±5% | 427 mA | - | Unshielded | 1.1Ohm Max | 50 @ 7.9MHz | 33MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-332JFIXED IND 3.3UH 501MA 800MOHM SM |
8,270 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±5% | 501 mA | - | Unshielded | 800mOhm Max | 50 @ 7.9MHz | 45MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-224JFIXED IND 220UH 142MA 10 OHM SMD |
3,864 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±5% | 142 mA | - | Unshielded | 10Ohm Max | 40 @ 790kHz | 4MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-273JFIXED IND 27UH 236MA 3.6 OHM SMD |
443 |
|
Datasheet |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±5% | 236 mA | - | Unshielded | 3.6Ohm Max | 50 @ 2.5MHz | 12MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
.jpg)
|
AIRD-01-470KFIXED IND 47UH 2.8A 62 MOHM TH |
364 |
|
Datasheet |
AIRD-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 2.8 A | 11A | Unshielded | 62mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.650" Dia (16.50mm) | 0.827" (21.00mm) |
|
VLB7050HT-R11MFIXED IND 110NH 36A 0.27MOHM SMD |
342 |
|
Datasheet |
VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 110 nH | ±20% | 36 A | 47A | Unshielded | 0.27mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.268" L x 0.264" W (6.80mm x 6.70mm) | 0.197" (5.00mm) |
|
UP2-150-RFIXED IND 15UH 3.6A 44.9MOHM SMD |
600 |
|
Datasheet |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 3.6 A | 2.4A | Unshielded | 44.9mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
ASPIAIG-F1265-100M-TFIXED IND 10UH 10A 16.5 MOHM SMD |
996 |
|
Datasheet |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 10 A | 15.5A | Shielded | 16.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1265 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
ASPIAIG-F1265-6R8M-TFIXED IND 6.8UH 11.5A 11.5 MOHM |
977 |
|
Datasheet |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 11.5 A | 18A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1265 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|

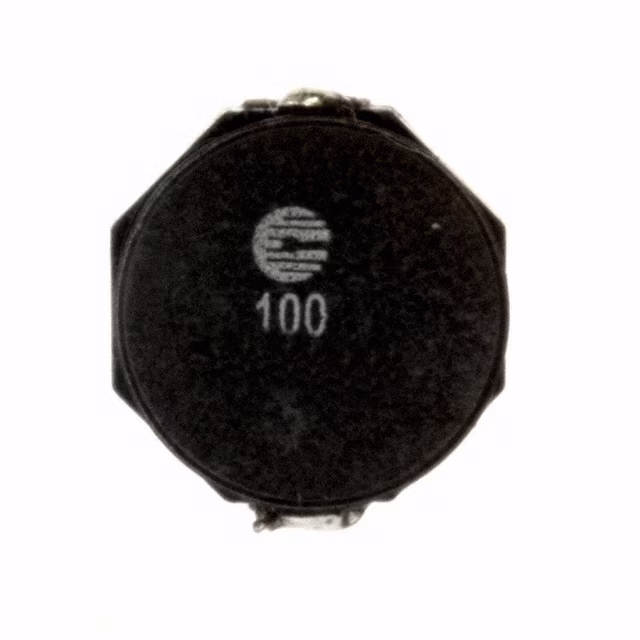

SD8350-100-RFIXED IND 10UH 3.2A 36 MOHM SMD |
833 |
|
Datasheet |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 3.2 A | 4A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.177" (4.50mm) |
|
HCMA0703-220-RFIXED IND 22UH 2.3A 149 MOHM SMD |
0 |
|
Datasheet |
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 2.3 A | 3A | Shielded | 149mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
74457222FIXED IND 220UH 1.2A 388MOHM SMD |
267 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.2 A | 2.4A | Unshielded | 388mOhm Max | - | 3.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
ASPIAIG-Q8080-100M-TFIXED IND 10UH 8.7A 22.9MOHM SMD |
211 |
|
Datasheet |
ASPIAIG-Q8080 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 8.7 A | 10A | Shielded | 22.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.335" W (8.90mm x 8.50mm) | 0.315" (8.00mm) |
|
SBC8-470-372FIXED IND 47UH 3.7A 40 MOHM TH |
884 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 3.7 A | 5.4A | Unshielded | 40mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
PE-53817NLFIXED IND 375UH 360MA 1.3 OHM TH |
723 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 375 µH | ±20% | 360 mA | - | Shielded | 1.3Ohm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | 0.375" (9.52mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
