Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMLS136E-1R8MSFIXED IND 1.8UH 25A 3.1MOHM SMD |
384 |
|
Datasheet |
CMLS136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1.8 µH | ±20% | 25 A | 47A | Shielded | 3.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
7447036FIXED IND 220UH 800MA 220MOHM TH |
371 |
|
Datasheet |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 220 µH | ±20% | 800 mA | - | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.551" Dia x 0.295" W (14.00mm x 7.50mm) | - |
|
IHLP5050EZER150M5AFIXED IND 15UH 7.7A 29.7MOHM SMD |
315 |
|
Datasheet |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 7.7 A | 7.5A | Shielded | 29.7mOhm Max | - | 9.6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
744770282FIXED IND 820UH 600MA 1.64OHM SM |
260 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 600 mA | 800mA | Shielded | 1.64Ohm Max | - | 2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
SBCP-14HY101BFIXED IND 100UH 1.5A 140 MOHM TH |
236 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.5 A | 3.1A | Unshielded | 140mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
744770268FIXED IND 680UH 700MA 1.46OHM SM |
185 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 700 mA | 800mA | Shielded | 1.46Ohm Max | - | 2.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
DRA73-102-RFIXED IND 1MH 235MA 5.15 OHM SMD |
172 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 235 mA | 239mA | Shielded | 5.15Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|

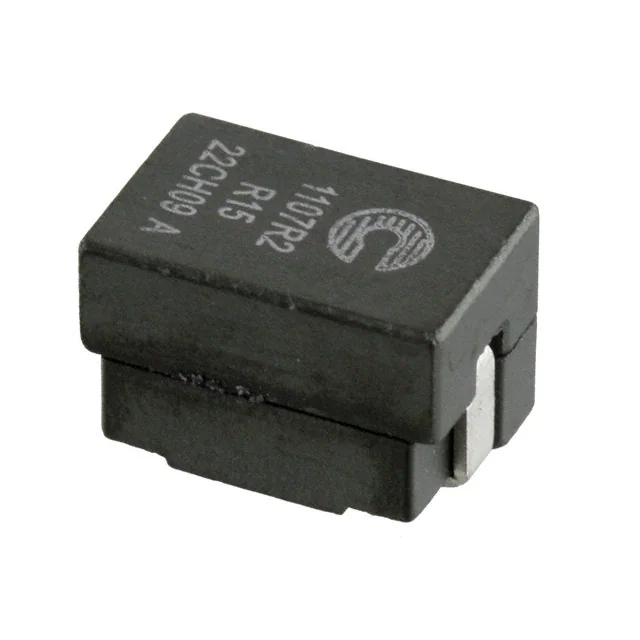

FP1107R2-R15-RFIXED IND 150NH 42A 0.47MOHM SMD |
1,721 |
|
Datasheet |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 42 A | 70A | Unshielded | 0.47mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | 0.283" (7.20mm) |
|
FP1107R2-R40-RFIXED IND 400NH 42A 0.47MOHM SMD |
1,167 |
|
Datasheet |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 400 nH | ±10% | 42 A | 25A | Unshielded | 0.47mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | 0.283" (7.20mm) |
|
MPLC1040L1R5FIXED IND 1.5UH 12.4A 7 MOHM SMD |
0 |
|
Datasheet |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 12.4 A | 12.7A | Shielded | 7mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
IHLP5050FDERR56M01FIXED IND 560NH 37A 1.4 MOHM SMD |
414 |
|
Datasheet |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 37 A | 62A | Shielded | 1.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|
MWLA1707S-220MTFIXED IND 22UH 26.5MOHM 18000MA |
338 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 22 µH | ±20% | 12 A | 18A | Shielded | 26.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.276" (7.00mm) |
|
PAL6374.181AHLTIND POWER BEAD TLVR |
325 |
|
Datasheet |
PAL6374.XXXAHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 nH | ±15% | 77 A | 40A | Unshielded | 0.135mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
PG0936.183NLFIXED IND 18UH 9.8A 13.8MOHM SMD |
236 |
|
Datasheet |
PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 18 µH | ±20% | 9.8 A | 11A | Unshielded | 13.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
SD12-2R2-RFIXED IND 2.2UH 1.83A 74.7 MOHM |
2,854 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.83 A | 1.8A | Shielded | 74.7mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.20mm) |
|
CDEP15D90T150NP-100MC-125FIXED IND 10UH 12.5A 7.9MOHM SMD |
290 |
|
Datasheet |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 12.5 A | 15A | Shielded | 7.9mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
|
IHLP5050EZERR33M5AFIXED IND 330NH 62.38A 1.02 MOHM |
250 |
|
Datasheet |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 62.38 A | 45.24A | Shielded | 1.02mOhm Max | - | 77.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
IHLP5050EZERR68M5AFIXED IND 680NH 49.63A 1.41 MOHM |
120 |
|
Datasheet |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 49.63 A | 30A | Shielded | 1.41mOhm Max | - | 50.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
FP1007R3-R27-RFIXED IND 270NH 61A 0.29MOHM SMD |
830 |
|
Datasheet |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±10% | 61 A | 40A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.295" (7.50mm) |
|
PM2201.182NLTFIXED IND 1.8UH 7A 28 MOHM SMD |
576 |
|
Datasheet |
PM2201.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±20% | 7 A | 7.5A | Unshielded | 28mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
