Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74438356015HTFIXED IND 1.5UH 5.5A 20.7MOHM SM |
2,678 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 5.5 A | 6.6A | Shielded | 20.7mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 5020 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|

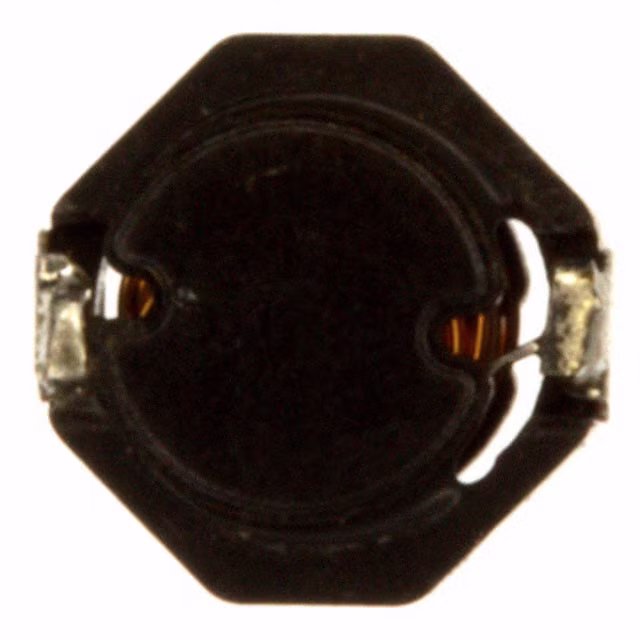

SD53-680-RFIXED IND 68UH 520MA 525MOHM SMD |
2,340 |
|
Datasheet |
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 520 mA | 580mA | Shielded | 525mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
P1168.501NLTFIXED IND 500NH 14A 2.3 MOHM SMD |
2,179 |
|
Datasheet |
P1168NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 500 nH | ±30% | 14 A | 18A | Shielded | 2.3mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
|
|
74438356012HTFIXED IND 1.2UH 5.8A 18.4MOHM SM |
1,925 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 5.8 A | 6.9A | Shielded | 18.4mOhm Max | - | 45MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
744383560068HTFIXED IND 680NH 8.1A 9.2MOHM SMD |
1,862 |
|
Datasheet |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 nH | ±20% | 8.1 A | 8.5A | Shielded | 9.2mOhm Max | - | 67MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 5020 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|
FP0805R1-R20-RFIXED IND 200NH 65A 0.17MOHM SMD |
1,703 |
|
Datasheet |
FLAT-PAC, FP0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±10% | 65 A | 20A | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.300" L x 0.295" W (7.62mm x 7.49mm) | 0.195" (4.96mm) |
|
|
P1168.124NLTFIXED IND 120UH 1.1A 316MOHM SMD |
1,545 |
|
Datasheet |
P1168NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±20% | 1.1 A | 1.1A | Shielded | 316mOhm Max | - | 5.5MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
|
|
P1168.105NLTFIXED IND 1MH 400MA 2.85 OHM SMD |
1,539 |
|
Datasheet |
P1168NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 400 mA | 400mA | Shielded | 2.85Ohm Max | - | 1.5MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
|
|
P1168.473NLTFIXED IND 47UH 1.8A 140 MOHM SMD |
1,482 |
|
Datasheet |
P1168NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1.8 A | 1.9A | Shielded | 140mOhm Max | - | 9MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
|
|
P1168.104NLTFIXED IND 100UH 1.2A 270MOHM SMD |
636 |
|
Datasheet |
P1168NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.2 A | 1.2A | Shielded | 270mOhm Max | - | 6MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
|
SPM6550T-R68M-HZFIXED IND 680NH 25.2A 3.74 MOHM |
565 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 25.2 A | 12.4A | Shielded | 3.74mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
B82477P2472M000FIXED IND 4.7UH 5.4A 160MOHM SMD |
400 |
|
Datasheet |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 5.4 A | 5.7A | Shielded | 160mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
B82477P2222M000FIXED IND 2.2UH 7.2A 12 MOHM SMD |
210 |
|
Datasheet |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 7.2 A | 8A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
B82477P2473M000FIXED IND 47UH 2.4A 70 MOHM SMD |
119 |
|
Datasheet |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.4 A | 1.9A | Shielded | 70mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
MPLCG0530L1R0FIXED IND 1UH 7.4A 0.0146OHM SMD |
4,918 |
|
Datasheet |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 7.4 A | 5.6A | Shielded | 14.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
MPCG0730LR40FIXED IND 400NH 16A 2.6 MOHM SMD |
1,368 |
|
Datasheet |
MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 400 nH | ±20% | 16 A | 16A | Shielded | 2.6mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.264" W (7.50mm x 6.70mm) | 0.118" (3.00mm) |
|
|
SPM10054T-330M-HZFIXED IND 33UH 5.3A 82.13MOHM SM |
448 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 33 µH | ±20% | 5.3 A | 2.6A | Shielded | 82.13mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|
SLF12565T-7R0N5R0-HFIXED IND 7UH 5A 21.24 MOHM SMD |
421 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 7 µH | ±30% | 5 A | 5.7A | Shielded | 21.24mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
ETQ-P5MR33YLCFIXED IND 330NH 39.7A 1.21 MOHM |
404 |
|
Datasheet |
PCC-M1050ML | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 39.7 A | 56.7A | Shielded | 1.21mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.197" (5.00mm) |
|
SBC8-150-532FIXED IND 15UH 5.3A 30 MOHM TH |
134 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.3 A | 9.6A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
