Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISC1812ES2R2KFIXED IND 2.2UH 390MA 460MOHM SM |
1,875 |
|
Datasheet |
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±10% | 390 mA | - | Shielded | 460mOhm Max | 30 @ 7.96MHz | 80MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
244R7CFIXED IND 4.7UH 2.1A 50 MOHM SMD |
1,397 |
|
Datasheet |
2400 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | - | 2.1 A | - | Unshielded | 50mOhm Max | - | 45MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
B82498F3181J000FIXED IND 180NH 340MA 530MOHM SM |
1,391 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±5% | 340 mA | - | Unshielded | 530mOhm Max | 45 @ 250MHz | 1.05GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
P0770.224NLFIXED IND 220UH 200MA 3.11OHM SM |
4,920 |
|
Datasheet |
P0770NL | Nonstandard | Tray | Active | Wirewound | - | 220 µH | ±20% | 200 mA | 220mA | Unshielded | 3.11Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
P0770.223NLFIXED IND 22UH 700MA 370MOHM SMD |
4,920 |
|
Datasheet |
P0770NL | Nonstandard | Tray | Active | Wirewound | - | 22 µH | ±20% | 700 mA | 700mA | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
P0770.102NLFIXED IND 1UH 2.9A 50 MOHM SMD |
4,775 |
|
Datasheet |
P0770NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 2.9 A | 2.9A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PA4337.104NLTFIXED IND 100UH 800MA 563MOHM SM |
7,500 |
|
Datasheet |
PA4337.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 100 µH | ±20% | 800 mA | 950mA | Shielded | 563mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LCDND2020KKT1R5MMFIXED IND 1.5UH 1.35A 133MOHM SM |
5,000 |
|
Datasheet |
LCDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 1.35 A | 1.9A | Unshielded | 133mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
LCDND2020KKTR47MMFIXED IND 470NH 2.2A 46 MOHM SMD |
5,000 |
|
Datasheet |
LCDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±20% | 2.2 A | 3.5A | Unshielded | 46mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
LCDND2020KKT3R3MMFIXED IND 3.3UH 940MA 275MOHM SM |
4,980 |
|
Datasheet |
LCDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 940 mA | 1.3A | Unshielded | 275mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
LCDND2020KKTR68MMFIXED IND 680NH 2A 60 MOHM SMD |
4,940 |
|
Datasheet |
LCDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 680 nH | ±20% | 2 A | 3.2A | Unshielded | 60mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
LCDND2020KKT4R7MMFIXED IND 4.7UH 750MA 435MOHM SM |
4,450 |
|
Datasheet |
LCDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 750 mA | 1.05A | Unshielded | 435mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|

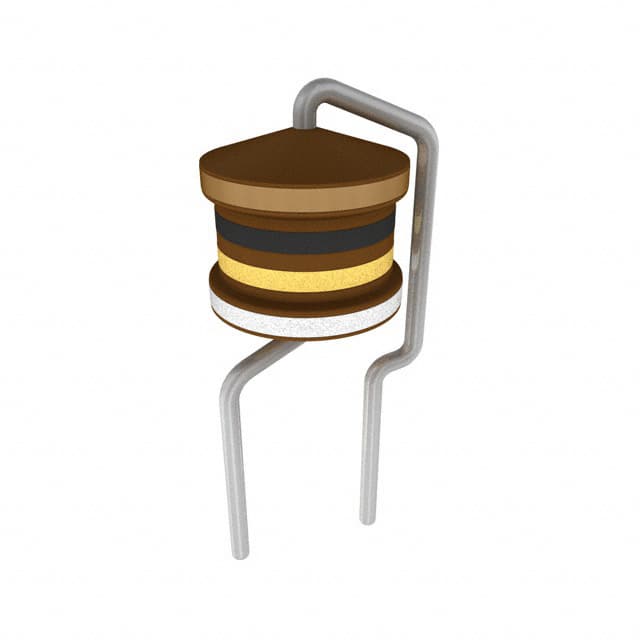

B82144B2102K000FIXED IND 1UH 4.45A 43 MOHM TH |
2,978 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 4.45 A | 7.7A | Unshielded | 43mOhm Max | 50 @ 2.52MHz | 200MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
NS10155T1R5NNAFIXED IND 1.5UH 8.39A 7.2MOHM SM |
2,378 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8.39 A | 11.9A | Shielded | 7.2mOhm Max | - | 75.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
B82144B2182K000FIXED IND 1.8UH 3.75A 50 MOHM TH |
1,557 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 3.75 A | 6.4A | Unshielded | 50mOhm Max | 60 @ 2.52MHz | 150MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
0630CDMCCDS-R33MCFIXED IND 330NH 21A 3.5MOHM SMD |
3,540 |
|
Datasheet |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 21 A | 32.3A | Shielded | 3.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
MDKK2020T2R2MMVFIXED IND 2.2UH 1.35A 165MOHM SM |
2,370 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.35 A | 1.65A | Shielded | 165mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
74405020015FIXED IND 1.5UH 1.4A 132MOHM SMD |
1,922 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.4 A | 2.3A | Shielded | 132mOhm Max | - | 74MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
IFSC1111ABER3R3M01FIXED IND 3.3UH 1.7A 120MOHM SMD |
1,495 |
|
Datasheet |
IFSC-1111AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.7 A | 1.5A | Shielded | 120mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.114" L x 0.114" W (2.90mm x 2.90mm) | 0.051" (1.30mm) |
|
PA2891.441HLFIXED IND 440NH 72A 0.22MOHM SMD |
3,561 |
|
Datasheet |
PA2981.XXXHL | Nonstandard | Tray | Active | - | - | 440 nH | ±10% | 72 A | 38A | Shielded | 0.22mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
