Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT67F-101K-VHIGH CURRENT POWER TOROID |
1 |
|
Datasheet |
ct67f | - | Bulk | Active | Toroidal | - | 101 µH | ±10% | - | - | - | - | - | - | - | -20°C ~ 80°C | - | - | - | - | - | - |
|
CTSD10F-1R0M1UH SMD SHLDED POWER INDUCTOR |
5 |
|
Datasheet |
CTSD10F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | - | 2.25A | Shielded | 56mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
CTSCH875DF-102K1000UH RADIAL FIXED INDUCTR |
12 |
|
Datasheet |
CTSCH875DF | Radial, Vertical Cylinder | Bulk | Active | - | - | 1 mH | ±10% | - | 230mA | Shielded | 2.72Ohm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.307" Dia (7.80mm) | 0.307" (7.80mm) |
|
|
CTSCH875DF-222K2200UH RADIAL FIXED INDUCTOR |
10 |
|
Datasheet |
CTSCH875DF | Radial, Vertical Cylinder | Bulk | Active | - | - | 2.2 mH | ±10% | - | 160mA | Shielded | 7.56Ohm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.307" Dia (7.80mm) | 0.307" (7.80mm) |
|
|
CTSCH875DF-472K4700UH RADIAL FIXED INDUCTOR |
5 |
|
Datasheet |
CTSCH875DF | Radial, Vertical Cylinder | Bulk | Active | - | - | 4.7 mH | ±10% | - | 110mA | Shielded | 14.7Ohm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.307" Dia (7.80mm) | 0.307" (7.80mm) |
|
CTDO3316PF-102HC1.0UH SMD HI-CUR POWER INDUCTOR |
15 |
|
Datasheet |
CTDO3316PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 6.8 A | 9A | Unshielded | 10mOhm | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|
|
CTDO3316PF-153HC15UH SMD HI-CUR POWER INDUCTOR |
14 |
|
Datasheet |
CTDO3316PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 3.1 A | 3A | Unshielded | 50mOhm | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|
|
CTDO3316PF-222HC2.2UH SMD HI-CUR POWER INDUCTOR |
10 |
|
Datasheet |
CTDO3316PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 6.1 A | 7A | Unshielded | 10mOhm | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|
|
CTDO3316PF-104HC100UH SMD HI-CUR POWER INDUCTOR |
5 |
|
Datasheet |
CTDO3316PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.3 A | 1.2A | Unshielded | 300mOhm | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|
|
CTDO3316PF-103HC10UH SMD HI-CUR POWER INDUCTOR |
5 |
|
Datasheet |
CTDO3316PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 3.9 A | 3.8A | Unshielded | 40mOhm | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|
|
CTDO3316PF-223HC22UH SMD HI-CUR POWER INDUCTOR |
5 |
|
Datasheet |
CTDO3316PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 2.7 A | 2.6A | Unshielded | 90mOhm | - | 19MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|
|
CTDO3316PF-331HC.33UH SMD HI-CUR POWER INDUCTOR |
5 |
|
Datasheet |
CTDO3316HCF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±30% | 16 A | 20A | Unshielded | 2mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.390" W (13.21mm x 9.91mm) | 0.250" (6.35mm) |
|

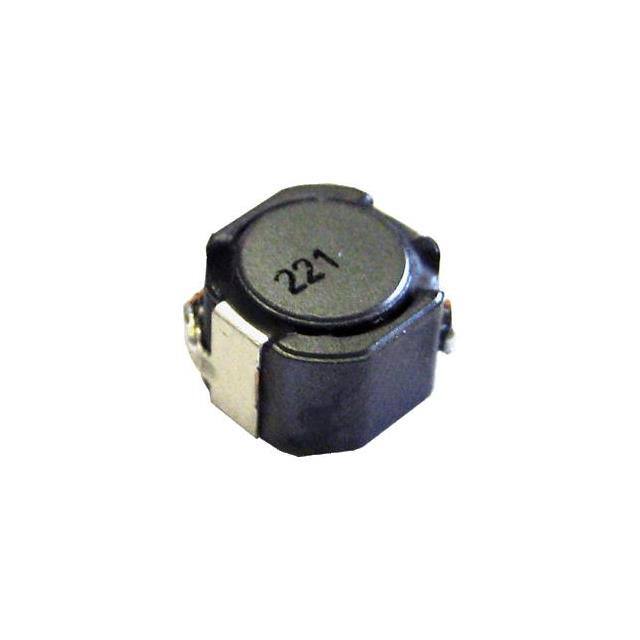

CTPCI7045F-4R7NSMD SHLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTPCI7045F | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 4.1 A | 4A | Shielded | 23.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
CTPCI7045F-6R8NSMD SHLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTPCI7045F | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | 3.9 A | 3A | Shielded | 26.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
CTPCI7045F-100MSMD SHLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTPCI7045F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 3.1 A | 2.6A | Shielded | 39.6mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
CTPCI7045F-471MSMD SHLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTPCI7045F | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 460 mA | 370mA | Shielded | 1.44Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
CTPCI7045F-221MSMD SHLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTPCI7045F | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 750 mA | 540mA | Shielded | 660mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
CTPCI7045F-1R0NSMD SHLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTPCI7045F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 6.5 A | 7.6A | Shielded | 11.7mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
CTPCI7045F-470MSMD SHLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTPCI7045F | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.7 A | 1.1A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
CTPCI7045F-220MSMD SHLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTPCI7045F | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 2.2 A | 1.6A | Shielded | 82.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
