Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LHLZ06TB391KFIXED IND 390UH TH |
0 |
|
Datasheet |
LH, LZ Type | Radial, Vertical Cylinder | Tape & Box (TB) | Obsolete | - | Ferrite | 390 µH | ±10% | - | - | Unshielded | - | - | - | - | -25°C ~ 105°C | - | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.433" (11.00mm) |
|

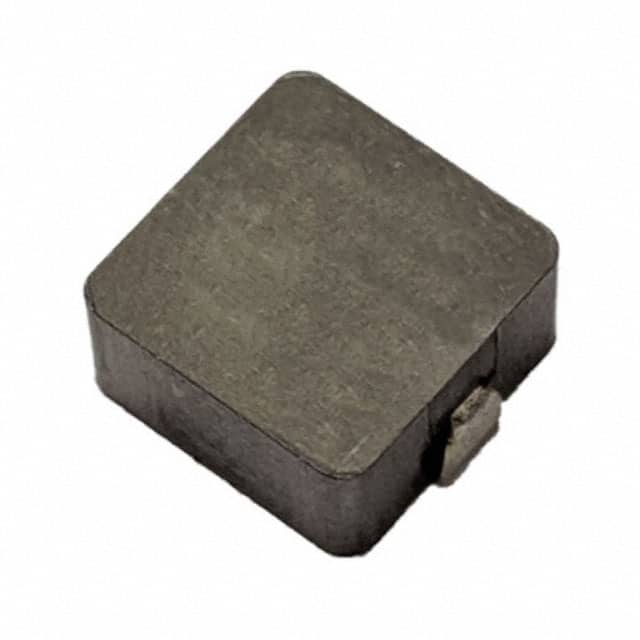

HCM1A1105V2-R47-RFIXED INDUCTOR 470NH SMD |
0 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.197" (5.00mm) |
|
|
PE-0402CD220JTTFIXED IND 22NH 400MA 300MOHM SMD |
0 |
|
Datasheet |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 400 mA | - | Unshielded | 300mOhm | 26 @ 250MHz | 2.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.61mm) |
|
|
CDRH12D77BT150NP-680MCFIXED IND 68UH 3.6A 77 MOHM SMD |
0 |
|
Datasheet |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 3.6 A | 3.7A | Shielded | 77mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDEP13D76T150NP-120MC-90FIXED IND 12.5UH 7A 15.2MOHM SMD |
0 |
|
Datasheet |
CDEP13D76/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 12.5 µH | ±20% | 7 A | 10.2A | Shielded | 15.2mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
|
|
CDEP13D76T150NP-220MC-105FIXED IND 22UH 5.3A 23.4MOHM SMD |
0 |
|
Datasheet |
CDEP13D76/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 5.3 A | 6.9A | Shielded | 23.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-2R2NCFIXED IND 2.2UH 11.7A 6.3MOHM SM |
0 |
|
Datasheet |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 11.7 A | 20.6A | Shielded | 6.3mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDEP13D76T150NP-1R6MC-105FIXED IND 1.6UH 17.8A 2.6MOHM SM |
0 |
|
Datasheet |
CDEP13D76/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.6 µH | ±20% | 17.8 A | 25A | Shielded | 2.6mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
|
|
CDEP13D76T150NP-2R2MC-90FIXED IND 2.2UH 16.1A 3.3MOHM SM |
0 |
|
Datasheet |
CDEP13D76/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 16.1 A | 24.5A | Shielded | 3.3mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
|
|
CDRH10D60BT150NP-6R8NCFIXED IND 6.8UH 7.9A 15 MOHM SMD |
0 |
|
Datasheet |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 7.9 A | 7.4A | Shielded | 15mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.250" (6.35mm) |
|
|
CDEP13D76T150NP-220MC-90FIXED IND 22UH 4.7A 30.4MOHM SMD |
0 |
|
Datasheet |
CDEP13D76/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 4.7 A | 7.5A | Shielded | 30.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
|
|
CDEP13D76T150NP-5R1MC-105FIXED IND 5.1UH 13A 4.8 MOHM SMD |
0 |
|
Datasheet |
CDEP13D76/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.1 µH | ±20% | 13 A | 14.6A | Shielded | 4.8mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-221MCFIXED IND 220UH 1.8A 318MOHM SMD |
0 |
|
Datasheet |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 1.8 A | 2.05A | Shielded | 318mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-151MCFIXED IND 150UH 2.45A 165MOHM SM |
0 |
|
Datasheet |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 2.45 A | 2.55A | Shielded | 165mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDEP13D76T150NP-6R8MC-105FIXED IND 6.8UH 11.5A 5.9MOHM SM |
0 |
|
Datasheet |
CDEP13D76/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 11.5 A | 12.7A | Shielded | 5.9mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-6R8NCFIXED IND 6.8UH 8.1A 13 MOHM SMD |
0 |
|
Datasheet |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 8.1 A | 11.7A | Shielded | 13mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-101MCFIXED IND 100UH 2.8A 138MOHM SMD |
0 |
|
Datasheet |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 2.8 A | 3.05A | Shielded | 138mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-220MCFIXED IND 22UH 5.1A 34 MOHM SMD |
0 |
|
Datasheet |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 5.1 A | 6.4A | Shielded | 34mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-150MCFIXED IND 15UH 6.4A 22 MOHM SMD |
0 |
|
Datasheet |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 6.4 A | 7.8A | Shielded | 22mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDRH12D77BT150NP-331MCFIXED IND 330UH 1.5A 370MOHM SMD |
0 |
|
Datasheet |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 1.5 A | 1.7A | Shielded | 370mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
Fixed Inductors Electronic Components
Explore Fixed Inductors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
