Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX13-14602FIXED INDUCTOR |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CTX33-4A-LFIXED IND 33UH |
0 |
|
- |
- | - | Bulk | Active | - | - | 33 µH | - | - | - | - | - | - | - | - | - | 100 kHz | - | - | - | - | - |
|

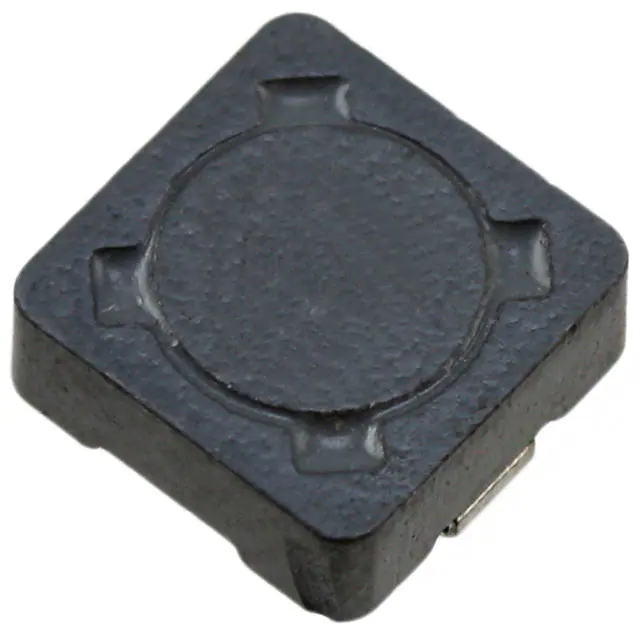

DR73-1R0-VFIXED IND 1UH 8A |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | 1 µH | - | - | - | - | - | - | - | - | - | 100 kHz | - | - | - | - | - |
|
|
FP0404R1-R065-IFIXED IND 65NH |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | 65 nH | - | - | - | - | - | - | - | - | - | 100 kHz | - | - | - | - | - |
|
|
FP1007R3-R15-IFIXED IND 150NH |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | 150 nH | - | - | - | - | - | - | - | - | - | 100 kHz | - | - | - | - | - |
|
|
HC6-R56-RFIXED INDUCTOR 560NH 30A |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | 560 nH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MPIA2512V1-1R0-RFIXED IND 1UH |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MDH12577C-330MA=P3FIXED IND 33UH 2.7A 39 MOHM SMD |
0 |
|
- |
MDH12577C | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.7 A | 4A | Unshielded | 39mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.315" (8.00mm) |
|
|
ETQ-P2H0R3BFNFIXED IND 290NH 36A 0.54MOHM SMD |
0 |
|
Datasheet |
PCC-D125H (NX2) | Nonstandard, 4 Lead | - | Obsolete | - | Ferrite | 290 nH | ±20% | 36 A | - | Shielded | 0.54mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.512" L x 0.508" W (13.00mm x 12.90mm) | 0.193" (4.90mm) |
|
|
ETQ-P2H1R8BFPFIXED IND 1.83UH 14A 3.48MOHM SM |
0 |
|
Datasheet |
PCC-D125H (NX2) | Nonstandard, 4 Lead | - | Obsolete | - | Ferrite | 1.83 µH | ±20% | 14 A | - | Shielded | 3.48mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.512" L x 0.508" W (13.00mm x 12.90mm) | 0.193" (4.90mm) |
|
|
ETQ-P2H2R6BFPFIXED IND 2.61UH 12A 4.98 MOHM |
0 |
|
Datasheet |
PCC-D125H (NX2) | Nonstandard, 4 Lead | - | Obsolete | - | Ferrite | 2.61 µH | ±20% | 12 A | - | Shielded | 4.98mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.512" L x 0.508" W (13.00mm x 12.90mm) | 0.193" (4.90mm) |
|
|
ETQ-PAF1R3EKFFIXED IND 1.3UH 17.7A 1.56 MOHM |
0 |
|
Datasheet |
PCC-F179F (S1) | 2-SMD, J-Lead | - | Obsolete | - | Ferrite | 1.3 µH | ±25% | 17.7 A | 35.2A | Shielded | 1.56mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.677" L x 0.661" W (17.20mm x 16.80mm) | 0.354" (9.00mm) |
Series.jpg)
|
PE-0201CC1N5STTFIXED IND 1.5NH 430MA 130MOHM SM |
0 |
|
Datasheet |
0201CC | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 1.5 nH | ±0.3nH | 430 mA | - | Unshielded | 130mOhm Max | 4 @ 100MHz | 10GHz | - | - | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
PE-0402CC4N36STTFIXED IND 4.3NH 300MA 200MOHM SM |
0 |
|
Datasheet |
0402CC | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 4.3 nH | ±0.3nH | 300 mA | - | Unshielded | 200mOhm Max | 8 @ 100MHz | 4GHz | - | - | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
PE-0402CH9N1JTTFIXED IND 9.1NH SMD |
0 |
|
Datasheet |
0402CH | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | - | - | 9.1 nH | - | - | - | Unshielded | - | 8 @ 100MHz | - | - | - | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
-0,22mm.jpg)
|
HKQ04020N5B-EFIXED IND 0.5NH 500MA 80MOHM SMD |
0 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 0.5 nH | ±0.1nH | 500 mA | - | Unshielded | 80mOhm Max | 8 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
HKQ04020N5C-EFIXED IND 0.5NH 500MA 80MOHM SMD |
0 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 0.5 nH | ±0.2nH | 500 mA | - | Unshielded | 80mOhm Max | 8 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
HKQ04020N5S-EFIXED IND 0.5NH 500MA 80MOHM SMD |
0 |
|
Datasheet |
HK, Q Type | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 0.5 nH | ±0.3nH | 500 mA | - | Unshielded | 80mOhm Max | 8 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
ASPIAIG-Q4020-1R0M-TFIXED IND 1UH 9.6A 14.6 MOHM SMD |
0 |
|
Datasheet |
ASPIAIG-Q4020 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 9.6 A | 8.8A | Shielded | 14.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ASPIAIG-Q4020-2R2M-TFIXED IND 2.2UH 5.6A 38.7MOHM SM |
0 |
|
Datasheet |
ASPIAIG-Q4020 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 5.6 A | 6A | Shielded | 38.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
