Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-2176086-4FIXED IND 51NH 360MA 700MOHM SMD |
0 |
|
- |
3654 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 51 nH | ±5% | 360 mA | - | Unshielded | 700mOhm Max | - | 2.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
.jpg)
|
36401E1N6ATDFFIXED IND 1.6NH 560MA 250MOHM SM |
0 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1.6 nH | ±0.2nH | 560 mA | - | Unshielded | 250mOhm Max | 13 @ 500MHz | 10GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
3630C332KTFIXED IND 3.3UH 0.1MA 10 OHM SMD |
0 |
|
Datasheet |
3630, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 0.1 A | - | Shielded | 10Ohm Max | 50 @ 252kHz | 1.2MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SMT-40-266-18-PFIXED IND |
0 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MGDH1-00011-PFIXED IND |
0 |
|
Datasheet |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3613C100KVFIXED IND 10UH 250MA 1.6 OHM SMD |
0 |
|
Datasheet |
3613C, Sigma Inductors | 1812 (4532 Metric) | Bulk | Active | - | Ferrite | 10 µH | ±10% | 250 mA | - | Unshielded | 1.6Ohm Max | 50 @ 2.52MHz | 20MHz | - | - | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
IHHP1008ABER100M01FIXED IND 10UH 1.1A 468 MOHM SMD |
0 |
|
Datasheet |
IHHP-1008AB-01 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 10 µH | ±20% | 1.1 A | 1.2A | Shielded | 468mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IHHP1008ABER4R7M01FIXED IND 4.7UH 1.6A 180MOHM SMD |
0 |
|
Datasheet |
IHHP-1008AB-01 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±20% | 1.6 A | 1.9A | Shielded | 180mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IHHP1008ABER6R8M01FIXED IND 6.8UH 1.3A 360MOHM SMD |
0 |
|
Datasheet |
IHHP-1008AB-01 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 6.8 µH | ±20% | 1.3 A | 1.3A | Shielded | 360mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IHHP1008AZER4R7M01FIXED IND 4.7UH 1.4A 288MOHM SMD |
0 |
|
Datasheet |
IHHP-1008AZ-01 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±20% | 1.4 A | 1.4A | Shielded | 288mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
ELL-8TP2R5NBFIXED IND 2.5UH 6.5A 7 MOHM SMD |
0 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.5 µH | ±30% | 6.5 A | 5.5A | Shielded | 7mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP4R7NBFIXED IND 4.7UH 4A 14 MOHM SMD |
0 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 4 A | 4A | Shielded | 14mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP6R8NBFIXED IND 6.8UH 3.5A 18 MOHM SMD |
0 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 3.5 A | 3.5A | Shielded | 18mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP150MBFIXED IND 15UH 2.3A 44 MOHM SMD |
0 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 2.3 A | 2.3A | Shielded | 44mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP220MBFIXED IND 22UH 2A 55 MOHM SMD |
0 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 2 A | 2.2A | Shielded | 55mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP330MBFIXED IND 33UH 1.6A 84 MOHM SMD |
0 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 1.6 A | 1.6A | Shielded | 84mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|
|
ELL-8TP181MBFIXED IND 180UH SMD |
0 |
|
Datasheet |
P | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | 180 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.197" (5.00mm) |
|

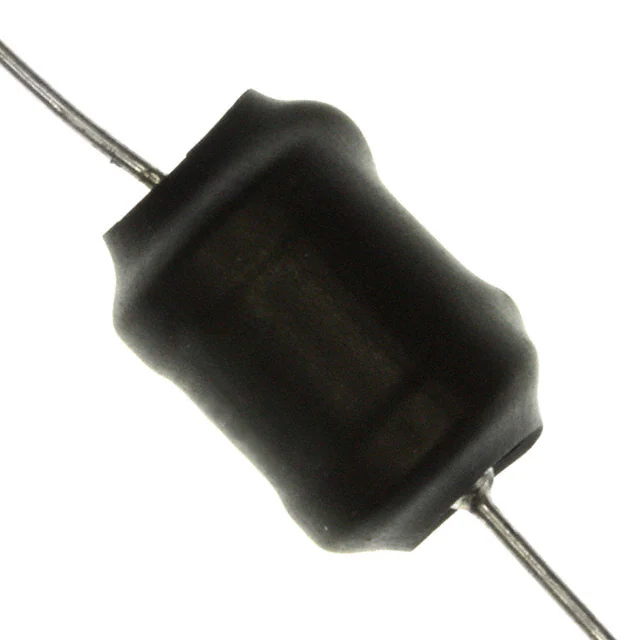

18106CFIXED IND 10MH 130MA 12 OHM TH |
0 |
|
Datasheet |
1800 | Axial | Tray | Obsolete | Wirewound | - | 10 mH | ±10% | 130 mA | - | Unshielded | 12Ohm Max | 143 @ 40kHz | 500kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18154CFIXED IND 150UH 1.1A 165MOHM TH |
0 |
|
Datasheet |
1800 | Axial | Tray | Obsolete | Wirewound | - | 150 µH | ±10% | 1.1 A | - | Unshielded | 165mOhm Max | 47 @ 100kHz | 4.4MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18155CFIXED IND 1.5MH 330MA 1.5 OHM TH |
0 |
|
Datasheet |
1800 | Axial | Tray | Obsolete | Wirewound | - | 1.5 mH | ±10% | 330 mA | - | Unshielded | 1.5Ohm Max | 107 @ 50kHz | 1.3MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
