Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM5020T-R47MFIXED IND 470NH 5.5A 24.4MOHM SM |
0 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | 5.5 A | - | Shielded | 24.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.079" (2.00mm) |
|

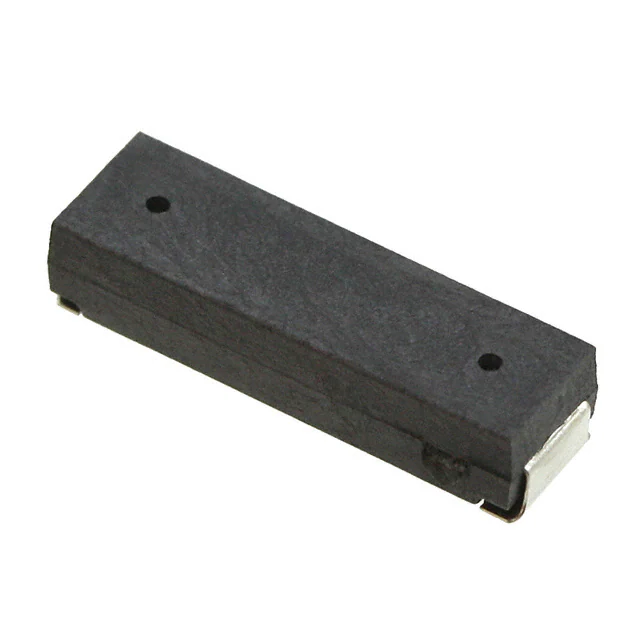

TPL1183525-262J-261NFIXED IND 2.61MH 26 OHM SMD |
0 |
|
Datasheet |
TPL | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.61 mH | ±5% | - | - | Unshielded | 26Ohm | 50 @ 125kHz | 650kHz | AEC-Q200 | -40°C ~ 125°C | 125 kHz | - | Surface Mount | - | 0.465" L x 0.138" W (11.80mm x 3.50mm) | 0.106" (2.70mm) |
|
|
IC1206B221R-10FIXED IND 220NH SMD |
0 |
|
Datasheet |
IC | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±10% | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
|
TYS60451R3N-10FIXED IND 1.3UH 5.4A 10 MOHM SMD |
0 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.3 µH | ±30% | 5.4 A | 8.35A | Shielded | 10mOhm | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
TYS60451R8N-10FIXED IND 1.8UH 4.95A 12MOHM SMD |
0 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±30% | 4.95 A | 7.6A | Shielded | 12mOhm | - | 74MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
74479897122FIXED IND 220NH 3.5A 16 MOHM SMD |
0 |
|
- |
WE-PMI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 220 nH | ±20% | 3.5 A | 1.6A | Shielded | 16mOhm | 22 @ 1MHz | 120MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.102" W (3.20mm x 2.60mm) | 0.028" (0.70mm) |
|
|
74479897150FIXED IND 500NH 2.9A 25 MOHM SMD |
0 |
|
- |
WE-PMI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 500 nH | ±20% | 2.9 A | 1.1A | Shielded | 25mOhm | 25 @ 1MHz | 90MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.102" W (3.20mm x 2.60mm) | 0.028" (0.70mm) |
|
74479899111FIXED IND 110NH 4A 7 MOHM SMD |
0 |
|
- |
WE-PMI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 110 nH | ±20% | 4 A | 4A | Shielded | 7mOhm | 12 @ 1MHz | 300MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.102" W (3.20mm x 2.60mm) | 0.047" (1.20mm) |
|
|
74479899130FIXED IND 300NH 3.9A 15 MOHM SMD |
0 |
|
- |
WE-PMI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 300 nH | ±20% | 3.9 A | 2.5A | Shielded | 15mOhm | 22 @ 1MHz | 115MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.102" W (3.20mm x 2.60mm) | 0.047" (1.20mm) |
|
|
74479899150FIXED IND 500NH 3.8A 18 MOHM SMD |
0 |
|
- |
WE-PMI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 500 nH | ±20% | 3.8 A | 1.8A | Shielded | 18mOhm | 22 @ 1MHz | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.102" W (3.20mm x 2.60mm) | 0.047" (1.20mm) |
|
|
74479899210FIXED IND 1UH 2.3A 50 MOHM SMD |
0 |
|
- |
WE-PMI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 2.3 A | 2.5A | Shielded | 50mOhm | 18 @ 1MHz | 75MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.102" W (3.20mm x 2.60mm) | 0.047" (1.20mm) |
|
1130-2R2M-RCFIXED IND 2.2UH 21A 3 MOHM TH |
0 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 21 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
.jpg)
|
36401E1N5ATDFFIXED IND 1.5NH 700MA 250MOHM SM |
0 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1.5 nH | ±0.2nH | 700 mA | - | Unshielded | 250mOhm Max | 13 @ 500MHz | 10GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E3N0ATDFFIXED IND 3NH 380MA 450MOHM SMD |
0 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3 nH | ±0.2nH | 380 mA | - | Unshielded | 450mOhm Max | 13 @ 500MHz | 6GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
IM02BH100KFIXED IND 10UH 130MA 3.7 OHM TH |
0 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Iron | 10 µH | ±10% | 130 mA | - | Unshielded | 3.7Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02BH1R0KFIXED IND 1UH 385MA 1 OHM TH |
0 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Phenolic | 1 µH | ±10% | 385 mA | - | Unshielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM04EB101JFIXED IND 100UH 133MA 4.5 OHM TH |
0 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Iron | 100 µH | ±5% | 133 mA | - | Unshielded | 4.5Ohm Max | 50 @ 2.5MHz | 9.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
IR02BH470KFIXED IND 47UH 110MA 4.5 OHM TH |
0 |
|
Datasheet |
IR | Axial | Bulk | Obsolete | - | Ferrite | 47 µH | ±10% | 110 mA | - | Unshielded | 4.5Ohm Max | 45 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.260" L (3.05mm x 6.60mm) | - |
|
MPI5451R1-150-RFIXED IND 15UH 1.1A 400 MOHM SMD |
0 |
|
Datasheet |
MPI5451 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 15 µH | ±15% | 1.1 A | 2.2A | Shielded | 400mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
|
MPI5451R3-4R7-RFIXED IND 4.7UH 3A 50 MOHM SMD |
0 |
|
Datasheet |
MPI5451 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 3 A | 3.8A | Shielded | 50mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
