Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDR63BNP-270MCFIXED IND 27UH 640MA 360MOHM SMD |
0 |
|
Datasheet |
CDR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 27 µH | ±20% | 640 mA | - | Shielded | 360mOhm Max | - | 20.8MHz | - | -40°C ~ 100°C | - | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
|
|
CDR63BNP-330LCFIXED IND 33UH 610MA 410MOHM SMD |
0 |
|
Datasheet |
CDR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 33 µH | ±15% | 610 mA | - | Shielded | 410mOhm Max | - | 18.2MHz | - | -40°C ~ 100°C | - | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
|
|
CDR63BNP-390LCFIXED IND 39UH 530MA 470MOHM SMD |
0 |
|
Datasheet |
CDR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 39 µH | ±15% | 530 mA | - | Shielded | 470mOhm Max | - | 17MHz | - | -40°C ~ 100°C | - | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
|
|
CDR63BNP-470LCFIXED IND 47UH 500MA 510MOHM SMD |
0 |
|
Datasheet |
CDR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 47 µH | ±15% | 500 mA | - | Shielded | 510mOhm Max | - | 15.3MHz | - | -40°C ~ 100°C | - | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
|
|
CDR63BNP-560LCFIXED IND 56UH 460MA 720MOHM SMD |
0 |
|
Datasheet |
CDR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 56 µH | ±15% | 460 mA | - | Shielded | 720mOhm Max | - | 14.1MHz | - | -40°C ~ 100°C | - | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
|

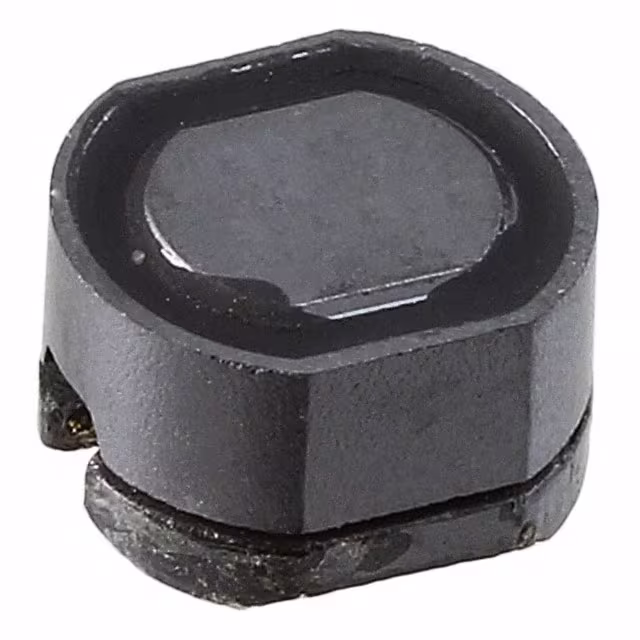

CDR74BNP-100MCFIXED IND 10UH 1.65A 70 MOHM SMD |
0 |
|
Datasheet |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 10 µH | ±20% | 1.65 A | - | Shielded | 70mOhm Max | - | 26.3MHz | - | -25°C ~ 80°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
CDR74BNP-101KCFIXED IND 100UH 550MA 490MOHM SM |
0 |
|
Datasheet |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 100 µH | ±10% | 550 mA | - | Shielded | 490mOhm Max | - | 8.3MHz | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
CDR74BNP-120MCFIXED IND 12UH 1.57A 70 MOHM SMD |
0 |
|
Datasheet |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 12 µH | ±20% | 1.57 A | - | Shielded | 70mOhm Max | - | 25.1MHz | - | -25°C ~ 80°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
CDR74BNP-121KCFIXED IND 120UH 490MA 680MOHM SM |
0 |
|
Datasheet |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 120 µH | ±10% | 490 mA | - | Shielded | 680mOhm Max | - | 7.3MHz | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
CDR74BNP-150MCFIXED IND 15UH 1.39A 80 MOHM SMD |
0 |
|
Datasheet |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 15 µH | ±20% | 1.39 A | - | Shielded | 80mOhm Max | - | 19.9MHz | - | -25°C ~ 80°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
CDR74BNP-151KCFIXED IND 150UH 440MA 940MOHM SM |
0 |
|
Datasheet |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 150 µH | ±10% | 440 mA | - | Shielded | 940mOhm Max | - | 6.4MHz | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
CDR74BNP-180MCFIXED IND 18UH 1.29A 100MOHM SMD |
0 |
|
Datasheet |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 18 µH | ±20% | 1.29 A | - | Shielded | 100mOhm Max | - | 19.3MHz | - | -25°C ~ 80°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
CDR74BNP-181KCFIXED IND 180UH 400MA 1 OHM SMD |
0 |
|
Datasheet |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 180 µH | ±10% | 400 mA | - | Shielded | 1Ohm Max | - | 5.6MHz | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
CDR74BNP-221KCFIXED IND 220UH 360MA 1.18OHM SM |
0 |
|
Datasheet |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 220 µH | ±10% | 360 mA | - | Shielded | 1.18Ohm Max | - | 5.4MHz | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
CDR74BNP-270MCFIXED IND 27UH 1.06A 160MOHM SMD |
0 |
|
Datasheet |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 27 µH | ±20% | 1.06 A | - | Shielded | 160mOhm Max | - | 15.7MHz | - | -25°C ~ 80°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
CDR74BNP-271KCFIXED IND 270UH 330MA 1.3OHM SMD |
0 |
|
Datasheet |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 270 µH | ±10% | 330 mA | - | Shielded | 1.3Ohm Max | - | 4.6MHz | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
CDR74BNP-330LCFIXED IND 33UH 970MA 180MOHM SMD |
0 |
|
Datasheet |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 33 µH | ±15% | 970 mA | - | Shielded | 180mOhm Max | - | 15.3MHz | - | -25°C ~ 80°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
CDR74BNP-390LCFIXED IND 39UH 910MA 180MOHM SMD |
0 |
|
Datasheet |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 39 µH | ±15% | 910 mA | - | Shielded | 180mOhm Max | - | 14MHz | - | -25°C ~ 80°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
CDR74BNP-470LCFIXED IND 47UH 800MA 270MOHM SMD |
0 |
|
Datasheet |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 47 µH | ±15% | 800 mA | - | Shielded | 270mOhm Max | - | 12.4MHz | - | -25°C ~ 80°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
CDR74BNP-560LCFIXED IND 56UH 760MA 290MOHM SMD |
0 |
|
Datasheet |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 56 µH | ±15% | 760 mA | - | Shielded | 290mOhm Max | - | 11.8MHz | - | -25°C ~ 80°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
