Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5501-RCFIXED IND 5UH 10A 13 MOHM TH |
0 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 10 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) | - |
|
5502-RCFIXED IND 10UH 9A 17 MOHM TH |
0 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 9 A | - | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.630" Dia x 1.120" L (16.00mm x 28.45mm) | - |
|

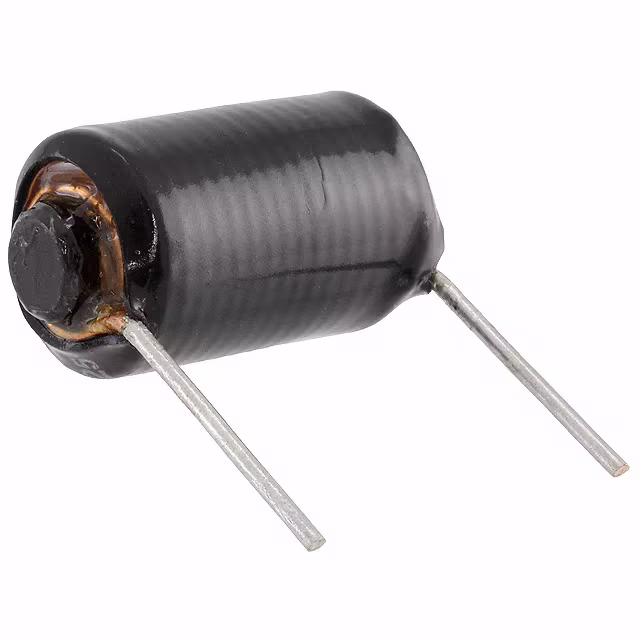

5520-RCFIXED IND 100UH 10A 27 MOHM TH |
0 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 10 A | - | Unshielded | 27mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.940" Dia x 1.620" L (23.88mm x 41.15mm) | - |
|
5607-RCFIXED IND 500UH 2A 378 MOHM TH |
0 |
|
Datasheet |
5600 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 2 A | - | Unshielded | 378mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.830" Dia (21.08mm) | 0.910" (23.11mm) |
|

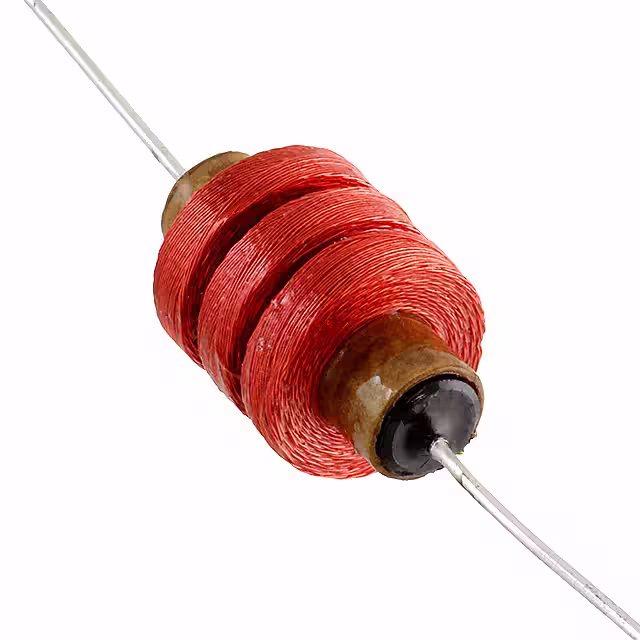

6310-RCFIXED IND 50MH 65MA 127 OHM TH |
0 |
|
Datasheet |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 50 mH | ±5% | 65 mA | - | Unshielded | 127Ohm Max | 100 @ 79.6kHz | 330kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.630" Dia x 0.875" L (16.00mm x 22.22mm) | - |
|
PT12133SLFIXED IND 8.2MH 50MA 26 OHM TH |
0 |
|
Datasheet |
PT121 | Radial, Vertical Cylinder | Bulk | Obsolete | Wirewound | - | 8.2 mH | ±10% | 50 mA | - | Unshielded | 26Ohm Max | 90 @ 252kHz | 500kHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.400" Dia (10.15mm) | 0.500" (12.70mm) |
|
CM201212-1R0KLFIXED IND 1UH 120MA 3.82 OHM SMD |
0 |
|
Datasheet |
CM201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Polymer | 1 µH | ±10% | 120 mA | - | Unshielded | 3.82Ohm Max | 8 @ 7.96MHz | 80MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.079" L x 0.050" W (2.00mm x 1.27mm) | 0.058" (1.47mm) |
|
CS321613-330KFIXED IND 33UH 25MA 1.5 OHM SMD |
0 |
|
Datasheet |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 33 µH | ±10% | 25 mA | - | Shielded | 1.5Ohm Max | 45 @ 400kHz | 13MHz | - | -55°C ~ 125°C | 400 kHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|

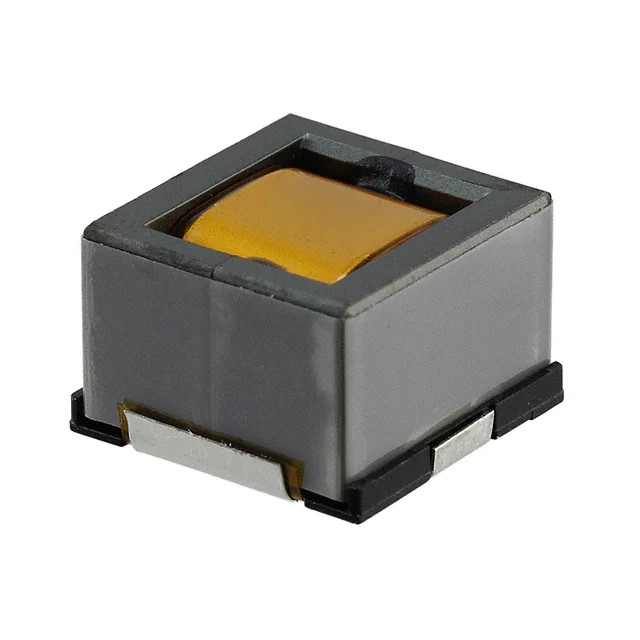

CDEP149NP-1R8MC-HFIXED IND 1.8UH 28A 2.3 MOHM SMD |
0 |
|
Datasheet |
CDEP149 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 1.8 µH | ±20% | 28 A | 20A | Shielded | 2.3mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.598" L x 0.598" W (15.20mm x 15.20mm) | 0.394" (10.00mm) |
|
CDPH45D13FHF-3R3MCFIXED IND 3.3UH 1.8A 96 MOHM SMD |
0 |
|
Datasheet |
CDPH | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 3.3 µH | ±20% | 1.8 A | 1.76A | Shielded | 96mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|
CDPH45D13FHF-4R7MCFIXED IND 4.7UH 1.46A 146MOHM SM |
0 |
|
Datasheet |
CDPH | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 4.7 µH | ±20% | 1.46 A | 1.66A | Shielded | 146mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|

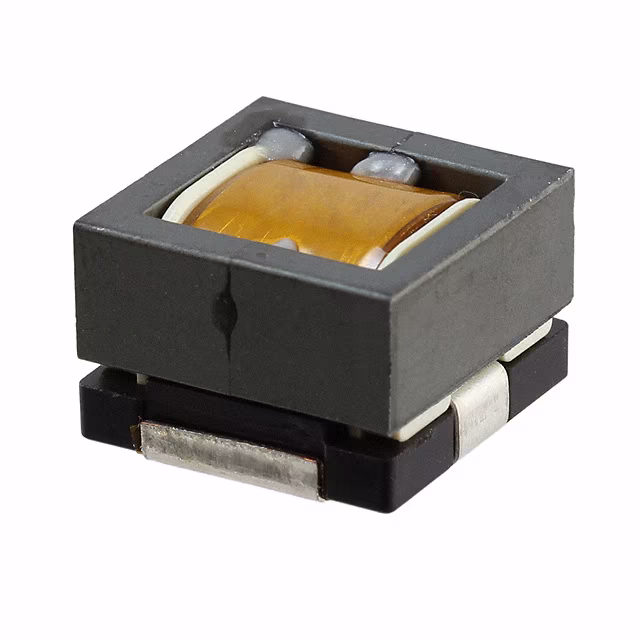

CEPH149NP-1R0MCFIXED IND 1UH 20A 1.2 MOHM SMD |
0 |
|
Datasheet |
CEPH | Nonstandard | Bulk | Obsolete | - | Ferrite | 1 µH | ±20% | 20 A | - | Shielded | 1.2mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.575" L x 0.575" W (14.60mm x 14.60mm) | 0.394" (10.00mm) |
|
|
CEPH149NP-1R6MCFIXED IND 1.6UH 15.5A 1.5MOHM SM |
0 |
|
Datasheet |
CEPH | Nonstandard | Bulk | Obsolete | - | Ferrite | 1.6 µH | ±20% | 15.5 A | - | Shielded | 1.5mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.575" L x 0.575" W (14.60mm x 14.60mm) | 0.394" (10.00mm) |
|
|
CEPH149NP-2R4MCFIXED IND 2.4UH 10A 1.5 MOHM SMD |
0 |
|
Datasheet |
CEPH | Nonstandard | Bulk | Obsolete | - | Ferrite | 2.4 µH | ±20% | 10 A | - | Shielded | 1.5mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.575" L x 0.575" W (14.60mm x 14.60mm) | 0.394" (10.00mm) |
|
54060472400FIXED IND 4.7NH 620MA 75MOHM SMD |
0 |
|
Datasheet |
5406 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.7 nH | ±10% | 620 mA | - | Unshielded | 75mOhm Max | 28 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0605 (1712 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
54068203400FIXED IND 82NH 220MA 590MOHM SMD |
0 |
|
Datasheet |
5406 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 220 mA | - | Unshielded | 590mOhm Max | 35 @ 150MHz | 1.7GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0605 (1712 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
TSL0809RA-331KR41-PFFIXED IND 330UH 410MA TH |
0 |
|
- |
TSL | Radial, Vertical Cylinder | Tape & Box (TB) | Obsolete | - | - | 330 µH | ±10% | 410 mA | - | Unshielded | - | - | - | - | - | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.346" (8.80mm) |
|
744030100FIXED IND 10UH 280MA 760MOHM SMD |
0 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 280 mA | 350mA | Shielded | 760mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.041" (1.05mm) |
|
|
744030220FIXED IND 22UH 220MA 1.45OHM SMD |
0 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 220 mA | 250mA | Shielded | 1.45Ohm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.041" (1.05mm) |
|
|
B78108T1102J009FIXED IND 1UH 630MA 250 MOHM TH |
0 |
|
Datasheet |
MCC | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 630 mA | - | Unshielded | 250mOhm Max | 35 @ 25.2MHz | 180MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
