Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR125B-470FIXED IND 47UH 2.82A 120MOHM SMD |
0 |
|
Datasheet |
SCR125B | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.82 A | 1.5A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 kHz | - | Surface Mount | - | 0.516" L x 0.476" W (13.10mm x 12.10mm) | 0.232" (5.90mm) |
|
SCRH105A-220FIXED IND 22UH 3.95A 70 MOHM SMD |
0 |
|
Datasheet |
SCRH105A | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.95 A | 3A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.236" (6.00mm) |
|
|
SCRH105A-47RFIXED IND 4.7UH 7.2A 17 MOHM SMD |
0 |
|
Datasheet |
SCRH105A | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 7.2 A | 6.5A | Shielded | 17mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.236" (6.00mm) |
|
|
SCRH105A-5R6FIXED IND 5.6UH 6A 21 MOHM SMD |
0 |
|
Datasheet |
SCRH105A | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±30% | 6 A | 6.2A | Shielded | 21mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.236" (6.00mm) |
|
7447471104FIXED IND 100MH 50MA 140 OHM TH |
0 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 100 mH | ±10% | 50 mA | 50mA | Shielded | 140Ohm Max | - | 90kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
7447471473FIXED IND 47MH 70MA 90 OHM TH |
0 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 47 mH | ±10% | 70 mA | 70mA | Shielded | 90Ohm Max | - | 150kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
ETQ-P3W1R0WFNFIXED IND 1UH 13A 7.9 MOHM SMD |
0 |
|
Datasheet |
PCC-M0630W | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Metal Composite | 1 µH | ±20% | 13 A | - | Shielded | 7.9mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

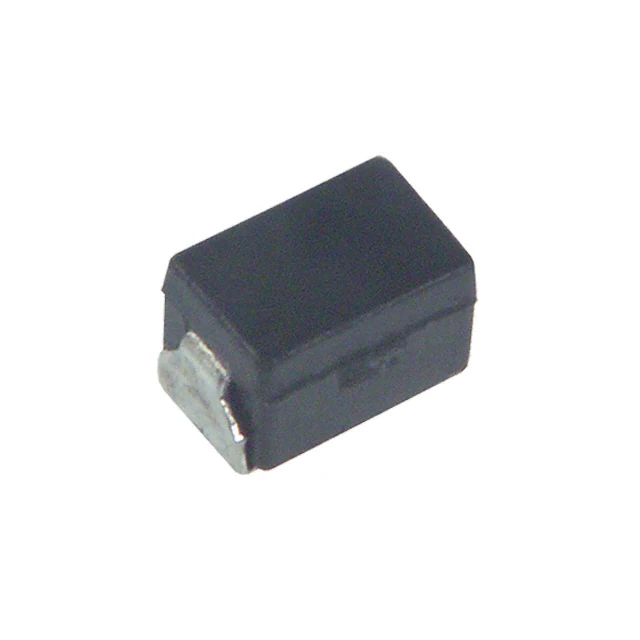

ELJ-PC2R2MF3FIXED IND 2.2UH 700MA 190MOHM SM |
0 |
|
Datasheet |
PC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 700 mA | 330mA | Unshielded | 190mOhm | - | 95MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-PC3R3MF3FIXED IND 3.3UH 650MA 220MOHM SM |
0 |
|
Datasheet |
PC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 650 mA | 260mA | Unshielded | 220mOhm | - | 75MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-PC4R7MF3FIXED IND 4.7UH 610MA 250MOHM SM |
0 |
|
Datasheet |
PC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 610 mA | 220mA | Unshielded | 250mOhm | - | 65MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-PC220MF3FIXED IND 22UH 275MA 1.22OHM SMD |
0 |
|
Datasheet |
PC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 275 mA | 100mA | Unshielded | 1.22Ohm | - | 21MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
ELJ-LC100KFFIXED IND 10UH 240MA 1.6 OHM SMD |
0 |
|
Datasheet |
LC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 240 mA | 470mA | Unshielded | 1.6Ohm | - | - | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
ELJ-LA2R2KFFIXED IND 2.2UH 740MA 200MOHM SM |
0 |
|
Datasheet |
LA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 740 mA | 1.4A | Unshielded | 200mOhm | - | - | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-LA3R3KFFIXED IND 3.3UH 670MA 240MOHM SM |
0 |
|
Datasheet |
LA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 670 mA | 1.2A | Unshielded | 240mOhm | - | - | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-LA6R8KFFIXED IND 6.8UH 460MA 550MOHM SM |
0 |
|
Datasheet |
LA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 460 mA | 800mA | Unshielded | 550mOhm | - | - | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-LA100KFFIXED IND 10UH 410MA 710MOHM SMD |
0 |
|
Datasheet |
LA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 410 mA | 600mA | Unshielded | 710mOhm | - | - | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-LA220KFFIXED IND 22UH 250MA 1.9 OHM SMD |
0 |
|
Datasheet |
LA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 250 mA | 420mA | Unshielded | 1.9Ohm | - | - | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-LA470KFFIXED IND 47UH 165MA 4.3 OHM SMD |
0 |
|
Datasheet |
LA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 165 mA | 300mA | Unshielded | 4.3Ohm | - | - | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-LA680KFFIXED IND 68UH 145MA 5.5 OHM SMD |
0 |
|
Datasheet |
LA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 145 mA | 260mA | Unshielded | 5.5Ohm | - | - | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
ELJ-PA1R0MF2FIXED IND 1UH 1.15A 85 MOHM SMD |
0 |
|
Datasheet |
PA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.15 A | 1.2A | Unshielded | 85mOhm | - | 130MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
