Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

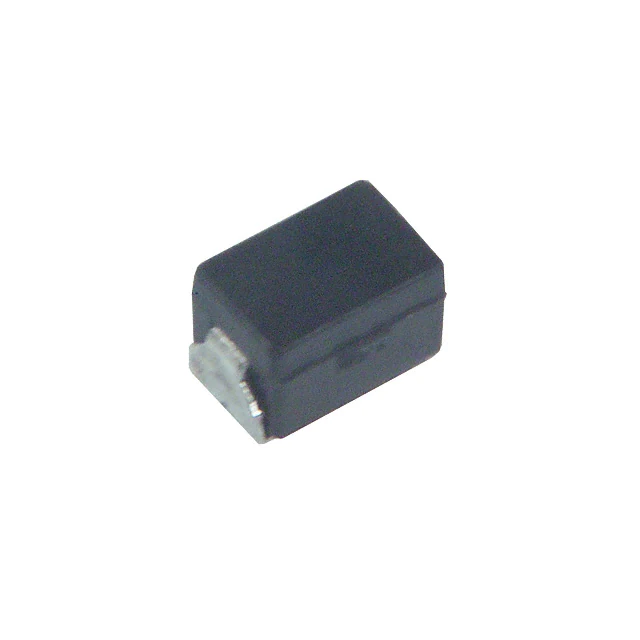

ELJ-NDR39KFFIXED IND 390NH 150MA 2.37OHM SM |
0 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 390 nH | ±10% | 150 mA | - | Unshielded | 2.37Ohm Max | 10 @ 25.2MHz | 150MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR47KFFIXED IND 470NH 145MA 2.56OHM SM |
0 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 470 nH | ±10% | 145 mA | - | Unshielded | 2.56Ohm Max | 10 @ 25.2MHz | 150MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR56KFFIXED IND 560NH 140MA 2.69OHM SM |
0 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 560 nH | ±10% | 140 mA | - | Unshielded | 2.69Ohm Max | 10 @ 25.2MHz | 100MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR68KFFIXED IND 680NH 130MA 3.02OHM SM |
0 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 680 nH | ±10% | 130 mA | - | Unshielded | 3.02Ohm Max | 10 @ 25.2MHz | 100MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR82KFFIXED IND 820NH 125MA 3.38OHM SM |
0 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 820 nH | ±10% | 125 mA | - | Unshielded | 3.38Ohm Max | 10 @ 25.2MHz | 80MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
RLB0912-821KLFIXED IND 820UH TH |
0 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
|
SDR0906-152KBFIXED IND 1.5MH 180MA 5 OHM SMD |
0 |
|
Datasheet |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 180 mA | 260mA | Unshielded | 5Ohm Max | 70 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.248" (6.30mm) |
|
SRP1040-1R2MFIXED IND 1.2UH 18A 4.7 MOHM SMD |
0 |
|
Datasheet |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 1.2 µH | ±20% | 18 A | 24A | Shielded | 4.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
SRP1040-1R5MFIXED IND 1.5UH 12A 7.5 MOHM SMD |
0 |
|
Datasheet |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 1.5 µH | ±20% | 12 A | 20A | Shielded | 7.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
SRP1040-1R7MFIXED IND 1.7UH 15A 7.5 MOHM SMD |
0 |
|
Datasheet |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 1.7 µH | ±20% | 15 A | 18A | Shielded | 7.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
SRP1040-3R9MFIXED IND 3.9UH 9A 12 MOHM SMD |
0 |
|
Datasheet |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 3.9 µH | ±20% | 9 A | 15A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
SRP1040-5R6MFIXED IND 5.6UH 7A 16 MOHM SMD |
0 |
|
Datasheet |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 5.6 µH | ±20% | 7 A | 12A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
SRP1040-R15MFIXED IND 150NH 34A 1.3 MOHM SMD |
0 |
|
Datasheet |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 150 nH | ±20% | 34 A | 40A | Shielded | 1.3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
SRP1040-R20MFIXED IND 200NH 32A 1 MOHM SMD |
0 |
|
Datasheet |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 200 nH | ±20% | 32 A | 40A | Shielded | 1mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
SRP1040-R50MFIXED IND 500NH 23A 1.9 MOHM SMD |
0 |
|
Datasheet |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 500 nH | ±20% | 23 A | 32A | Shielded | 1.9mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
SRP1040-R75MFIXED IND 750NH 22A 2.5 MOHM SMD |
0 |
|
Datasheet |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 750 nH | ±20% | 22 A | 28A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
|
SRP1040-R80MFIXED IND 800NH 21A 3 MOHM SMD |
0 |
|
Datasheet |
SRP1040 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 800 nH | ±20% | 21 A | 30A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | 0.165" (4.20mm) |
|
SRP1045-1R4MFIXED IND 1.4UH 13A 4.4 MOHM SMD |
0 |
|
Datasheet |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.4 µH | ±20% | 13 A | 14A | Shielded | 4.4mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
|
|
SRP1045-2R2MFIXED IND 2.2UH 9.5A 8.7MOHM SMD |
0 |
|
Datasheet |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 9.5 A | 10A | Shielded | 8.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
|
|
SRP1045-3R2MFIXED IND 3.2UH 8A 10.4 MOHM SMD |
0 |
|
Datasheet |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.2 µH | ±20% | 8 A | 8A | Shielded | 10.4mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
