Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-92115NLFIXED IND 95UH 7A 25 MOHM TH |
0 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 95 µH | ±20% | 7 A | - | Unshielded | 25mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.650" Dia x 0.700" W (41.91mm x 17.78mm) | - |
|
PF0504.403NLTFIXED IND 40UH 4A 50 MOHM SMD |
0 |
|
Datasheet |
PF0504NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 40 µH | ±20% | 4 A | 8A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.450" (11.43mm) |
|
|
PE-53801SNLFIXED IND 259UH 130MA 3.4OHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 259 µH | ±20% | 130 mA | - | Shielded | 3.4Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
P1174.604NLTFIXED IND 600UH 120MA 2.55OHM SM |
0 |
|
Datasheet |
P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 600 µH | ±20% | 120 mA | 120mA | Shielded | 2.55Ohm Max | - | 3.7MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
P1174.222NLTFIXED IND 2.2UH 1.7A 18 MOHM SMD |
0 |
|
Datasheet |
P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 1.7 A | 1.7A | Shielded | 18mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
PG0434.142NLTFIXED IND 1.4UH 27A 2.1 MOHM SMD |
0 |
|
Datasheet |
PG0434NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.4 µH | ±20% | 27 A | 28A | Shielded | 2.1mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|
PB2020.102NLTFIXED IND 1.2UH 23.7A 2.2MOHM SM |
0 |
|
Datasheet |
PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 23.7 A | 55A | Unshielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
PF0580.393NLTFIXED IND 39UH 550MA 490MOHM SMD |
0 |
|
Datasheet |
PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±15% | 550 mA | 550mA | Unshielded | 490mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
PA1494.162NLTFIXED IND 1.6UH 37A 1.8 MOHM SMD |
0 |
|
Datasheet |
PA1494NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1.6 µH | ±15% | 37 A | 55A | Shielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PF0504.392NLTFIXED IND 3.9UH 11.7A 6.7MOHM SM |
0 |
|
Datasheet |
PF0504NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±20% | 11.7 A | 26A | Unshielded | 6.7mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.450" (11.43mm) |
|
|
PF0504.473NLTFIXED IND 47UH 3.5A 55 MOHM SMD |
0 |
|
Datasheet |
PF0504NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 3.5 A | 7A | Unshielded | 55mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.450" (11.43mm) |
|
|
P0453NLTFIXED IND 2.3UH 5A 15 MOHM SMD |
0 |
|
Datasheet |
Ros 2 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 2.3 µH | ±15% | 5 A | - | Shielded | 15mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.545" L x 0.390" W (13.84mm x 9.91mm) | 0.215" (5.46mm) |
|
|
PG0437.601NLTFIXED IND 600NH 18A 0.85MOHM SMD |
0 |
|
Datasheet |
PG0437NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 600 nH | ±20% | 18 A | 21A | Unshielded | 0.85mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.433" W (12.50mm x 11.00mm) | 0.177" (4.50mm) |
|
P0762.334NLTFIXED IND 330UH 300MA 2.7OHM SMD |
0 |
|
Datasheet |
P0762NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 300 mA | 400mA | Unshielded | 2.7Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
P1174.102NLTFIXED IND 1UH 3A 13 MOHM SMD |
0 |
|
Datasheet |
P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 3 A | 3A | Shielded | 13mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
PE-53719NLTFIXED IND 4.03UH 6.4A 23MOHM SMD |
0 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 4.03 µH | - | 6.4 A | - | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.770" L x 0.670" W (19.56mm x 17.02mm) | 0.390" (9.91mm) |
|

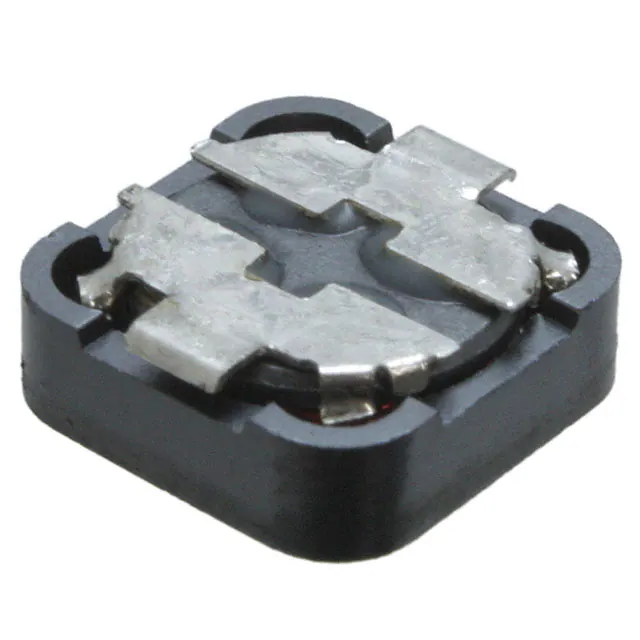

P1169.452NLTFIXED IND 4.5UH 6A 13 MOHM SMD |
0 |
|
Datasheet |
P1169NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.5 µH | ±30% | 6 A | 6.4A | Shielded | 13mOhm Max | - | 35MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
|
P1168.394NLTFIXED IND 390UH 620MA 1.087 OHM |
0 |
|
Datasheet |
P1168NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 390 µH | ±20% | 620 mA | 620mA | Shielded | 1.087Ohm Max | - | 2.6MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
|
|
P1169.162NLTFIXED IND 1.6UH 8.5A 6.3MOHM SMD |
0 |
|
Datasheet |
P1169NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.6 µH | ±30% | 8.5 A | 10A | Shielded | 6.3mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.177" (4.50mm) |
|
|
PA1393.152NLTFIXED IND 1.5UH 36A 1.43MOHM SMD |
0 |
|
Datasheet |
PA1393NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1.5 µH | ±15% | 36 A | 43A | Shielded | 1.43mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
