Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-6UH470MFIXED IND 47UH 900MA 160MOHM SMD |
0 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 900 mA | - | Shielded | 160mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH101MFIXED IND 100UH 600MA 360MOHM SM |
0 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 600 mA | - | Shielded | 360mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH121MFIXED IND 120UH 580MA 480MOHM SM |
0 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 120 µH | ±20% | 580 mA | - | Shielded | 480mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH391MFIXED IND 390UH 300MA 1.5OHM SMD |
0 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 µH | ±20% | 300 mA | - | Shielded | 1.5Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH561MFIXED IND 560UH 260MA 2.53OHM SM |
0 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 560 µH | ±20% | 260 mA | - | Shielded | 2.53Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH821MFIXED IND 820UH 200MA 3.14OHM SM |
0 |
|
Datasheet |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 820 µH | ±20% | 200 mA | - | Shielded | 3.14Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|

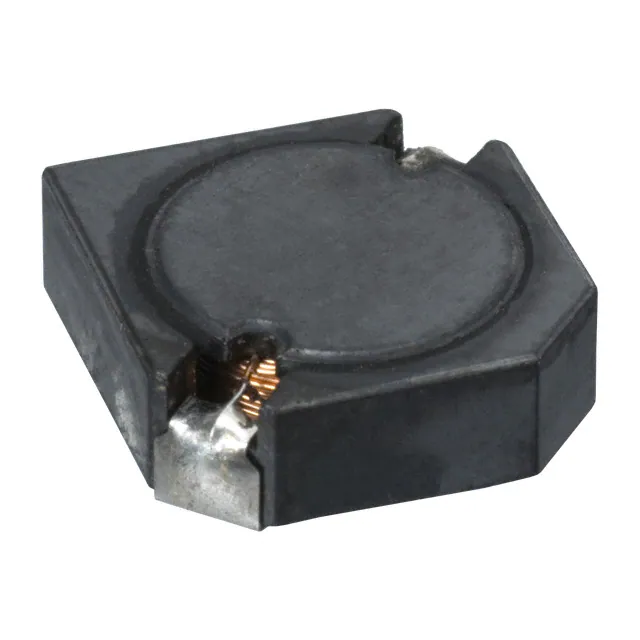

ELL-CTV1R2NFIXED IND 1.2UH 6.5A 4.6MOHM SMD |
0 |
|
Datasheet |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 6.5 A | - | Shielded | 4.6mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
ELL-CTV2R7NFIXED IND 2.7UH 5.7A 7 MOHM SMD |
0 |
|
Datasheet |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 5.7 A | - | Shielded | 7mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
ELL-CTV3R9NFIXED IND 3.9UH 5.6A 8.5MOHM SMD |
0 |
|
Datasheet |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 5.6 A | - | Shielded | 8.5mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
ELL-CTV150MFIXED IND 15UH 3.1A 25 MOHM SMD |
0 |
|
Datasheet |
V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.1 A | - | Shielded | 25mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
RL262-101J-RCFIXED IND 100UH 200MA 2 OHM TH |
0 |
|
Datasheet |
RL262 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 200 mA | - | Unshielded | 2Ohm Max | 60 @ 796kHz | 6.1MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) |
|
|
RL262-471J-RCFIXED IND 470UH 100MA 5 OHM TH |
0 |
|
Datasheet |
RL262 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 100 mA | - | Unshielded | 5Ohm Max | 60 @ 796kHz | 3.2MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) |
|
|
RL262-222J-RCFIXED IND 2.2MH 50MA 14 OHM TH |
0 |
|
Datasheet |
RL262 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 50 mA | - | Unshielded | 14Ohm Max | 80 @ 252kHz | 1.5MHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) |
|
|
RL262-103J-RCFIXED IND 10MH 20MA 55 OHM TH |
0 |
|
Datasheet |
RL262 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 20 mA | - | Unshielded | 55Ohm Max | 60 @ 79.6kHz | 600kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) |
|
|
RL262-153J-RCFIXED IND 15MH 20MA 80 OHM TH |
0 |
|
Datasheet |
RL262 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 15 mH | ±5% | 20 mA | - | Unshielded | 80Ohm Max | 60 @ 79.6kHz | 500kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) |
|
RL187-101J-RCFIXED IND 100UH 200MA 2 OHM TH |
0 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 200 mA | - | Unshielded | 2Ohm Max | 80 @ 796kHz | 5.3MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-151J-RCFIXED IND 150UH 200MA 2 OHM TH |
0 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 200 mA | - | Unshielded | 2Ohm Max | 80 @ 796kHz | 3.8MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-221J-RCFIXED IND 220UH 200MA 3 OHM TH |
0 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 200 mA | - | Unshielded | 3Ohm Max | 80 @ 796kHz | 2.9MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-331J-RCFIXED IND 330UH 200MA 4 OHM TH |
0 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 2.3MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
|
|
RL187-391J-RCFIXED IND 390UH 200MA 4 OHM TH |
0 |
|
Datasheet |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 390 µH | ±5% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 2.1MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.441" (11.20mm) |
