Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2300HT-121-V-RCFIXED IND 120UH 8A 45 MOHM TH |
161 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 120 µH | ±15% | 8 A | - | Shielded | 45mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
2300HT-330-H-RCFIXED IND 33UH 13.6A 15 MOHM TH |
150 |
|
Datasheet |
2300HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 33 µH | ±15% | 13.6 A | - | Shielded | 15mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300HT-181-V-RCFIXED IND 180UH 7.2A 55 MOHM TH |
149 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 180 µH | ±15% | 7.2 A | - | Shielded | 55mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300HT-471-H-RCFIXED IND 470UH 4.5A 140 MOHM TH |
138 |
|
Datasheet |
2300HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 470 µH | ±15% | 4.5 A | - | Shielded | 140mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300HT-470-V-RCFIXED IND 47UH 10A 28 MOHM TH |
108 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 47 µH | ±15% | 10 A | - | Shielded | 28mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
IHA505BAFIXED IND 100UH 5.9A 60 MOHM TH |
760 |
|
Datasheet |
IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 5.9 A | - | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.700" Dia x 1.300" L (17.78mm x 33.02mm) | - |
|
HC7-3R9-RFIXED IND 3.9UH 10.4A 7.9MOHM SM |
388 |
|
Datasheet |
HC7 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.9 µH | ±20% | 10.4 A | 20A | Unshielded | 7.9mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.512" W (13.80mm x 13.00mm) | 0.217" (5.50mm) |
|
B82559A5612A025FIXED IND 6.1UH 1.6 MOHM SMD |
584 |
|
Datasheet |
ERU25 - Flat Wire Inductor | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 6.1 µH | ±7% | - | 28A | Shielded | 1.6mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | 0.470" (11.95mm) |
|

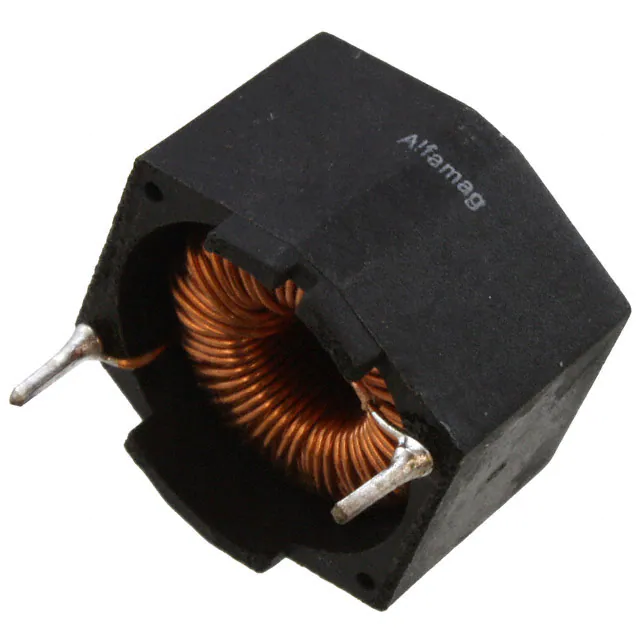

SH50F-1.4-220FIXED IND 220UH 1.4A 380 MOHM TH |
1,857 |
|
Datasheet |
SH50 | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
|
5713-RCFIXED IND 700UH 2.25A 420MOHM TH |
297 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 700 µH | ±15% | 2.25 A | - | Unshielded | 420mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | - |
|
|
5711-RCFIXED IND 50UH 9.5A 12 MOHM TH |
260 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±15% | 9.5 A | - | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | - |
|
|
5705-RCFIXED IND 450UH 1.5A 490 MOHM TH |
254 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 450 µH | ±15% | 1.5 A | - | Unshielded | 490mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - |
|
|
5701-RCFIXED IND 10UH 11A 8 MOHM TH |
144 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±15% | 11 A | - | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - |
|
78439370330WE-XHMA SMT POWER INDUCTOR 1510; |
165 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 8.5 A | 18.15A | Shielded | 18mOhm | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
|
78439370150WE-XHMA SMT POWER INDUCTOR 1510; |
110 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 10 A | 26.1A | Shielded | 10.5mOhm | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
PA4349.332ANLTFIXED IND 3.3UH 49A 1.75MOHM SMD |
1,047 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 47 A | 37A | Shielded | 1.75mOhm Max | - | 15MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.222ANLTFIXED IND 2.2UH 58A 1.25MOHM SMD |
544 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 52 A | 43A | Shielded | 1.25mOhm Max | - | 19MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
IHDF1300AEEH3R3K10FIXED IND 3.3UH 59A 1.11 MOHM TH |
288 |
|
Datasheet |
IHDF-1300AE-10 | Nonstandard | Tray | Active | - | Ferrite | 3.3 µH | ±10% | 59 A | 112A | Unshielded | 1.11mOhm Max | - | 18MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.299" W (33.00mm x 33.00mm) | 0.606" (15.40mm) |
|
|
PA4349.152ANLTFIXED IND 1.5UH 62A 1.15MOHM SMD |
741 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 57 A | 48A | Shielded | 1.15mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.823ANLTFIXED IND 82UH 12A 34.2 MOHM SMD |
557 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 82 µH | ±20% | 10 A | 7.7A | Shielded | 34.2mOhm Max | - | 1.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
