Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
894AT7503HCHORIZONTAL TOROIDAL POWER CHOKE |
0 |
|
Datasheet |
ATHC | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 750 µH | ±10% | 3 A | 4A | Shielded | 160mOhm Max | - | 400kHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.450" Dia (36.83mm) | 0.850" (21.59mm) |
|
|
894AT1503VCLFVERT TOROIDAL CHOKE |
0 |
|
Datasheet |
ATVC | Radial, Vertical | Bulk | Active | Toroidal | - | 150 µH | ±10% | 6.5 A | 9A | Shielded | 35mOhm Max | - | 1MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.450" L x 0.825" W (36.83mm x 20.95mm) | 0.312" (7.92mm) |
|

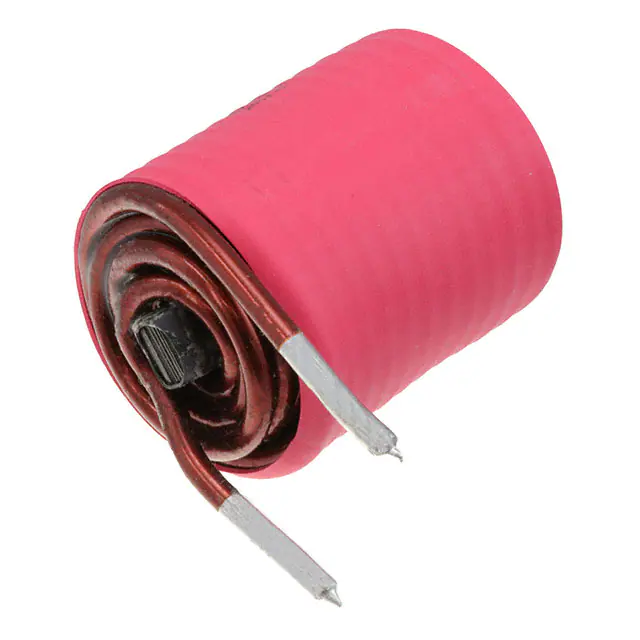

IHV45BZ92FIXED IND 92UH 45A 7.5 MOHM TH |
0 |
|
Datasheet |
IHV | Radial, Horizontal Cylinder | - | Active | - | Iron | 92 µH | ±10% | 45 A | - | Unshielded | 7.5mOhm Max | - | 2.9MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.920" Dia x 2.550" L (48.77mm x 64.77mm) | - |
|
|
GT10-115BVERTICAL MOUNT TOROIDAL CHOKE |
0 |
|
Datasheet |
GT10 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 96 µH | -12%, +30% | 7 A | - | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | - | - |
|
|
927T5006HIGH INDUCTANCE TOROID INDUCTOR |
0 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | 500 mH | ±2% | 130 mA | - | Unshielded | 30Ohm Max | - | 20MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 1.400" Dia (35.56mm) | 0.700" (17.78mm) |
|
|
047T5006HIGH INDUCTANCE TOROID INDUCTOR |
0 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | 500 mH | ±2% | 28 mA | - | Unshielded | 110Ohm Max | - | 25MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.700" Dia (17.78mm) | 0.400" (10.16mm) |
|
|
PFC383637B-181MHFPFC CHOKE 185.0UH 32.4AMP 11.0M |
5 |
|
Datasheet |
PFC | Vertical, 4 PC Pin | Bulk | Active | Wirewound | Alloy Powder | 185 µH | ±20% | 25.2 A | 16.7A | Unshielded | 11mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 1.476" L x 1.437" W (37.50mm x 36.50mm) | 1.417" (36.00mm) |
|
|
206T2007HIGH INDUCTANCE TOROID INDUCTOR |
0 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | 2 H | ±2% | 23 mA | - | Unshielded | 13Ohm Max | - | 480kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.500" (12.70mm) |
|
|
160-101HSFIXED IND 100NH 1.295A 75MOHM SM |
0 |
|
Datasheet |
160 | 2-SMD | Bulk | Active | - | Iron | 100 nH | ±3% | 1.295 A | - | Unshielded | 75mOhm Max | 50 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-121HSFIXED IND 120NH 1.295A 75MOHM SM |
0 |
|
Datasheet |
160 | 2-SMD | Bulk | Active | - | Iron | 120 nH | ±3% | 1.295 A | - | Unshielded | 75mOhm Max | 50 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-151HSFIXED IND 150NH 1.22A 85MOHM SMD |
0 |
|
Datasheet |
160 | 2-SMD | Bulk | Active | - | Iron | 150 nH | ±3% | 1.22 A | - | Unshielded | 85mOhm Max | 50 @ 25MHz | 420MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-181HSFIXED IND 180NH 1.125A 100 MOHM |
0 |
|
Datasheet |
160 | 2-SMD | Bulk | Active | - | Iron | 180 nH | ±3% | 1.125 A | - | Unshielded | 100mOhm Max | 50 @ 25MHz | 390MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-221HSFIXED IND 220NH 1.07A 110MOHM SM |
0 |
|
Datasheet |
160 | 2-SMD | Bulk | Active | - | Iron | 220 nH | ±3% | 1.07 A | - | Unshielded | 110mOhm Max | 50 @ 25MHz | 340MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-271HSFIXED IND 270NH 1.025A 120 MOHM |
0 |
|
Datasheet |
160 | 2-SMD | Bulk | Active | - | Iron | 270 nH | ±3% | 1.025 A | - | Unshielded | 120mOhm Max | 50 @ 25MHz | 290MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-301HSFIXED IND 300NH 985MA 130MOHM SM |
0 |
|
Datasheet |
160 | 2-SMD | Bulk | Active | - | Iron | 300 nH | ±3% | 985 mA | - | Unshielded | 130mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-331HSFIXED IND 330NH 950MA 140MOHM SM |
0 |
|
Datasheet |
160 | 2-SMD | Bulk | Active | - | Iron | 330 nH | ±3% | 950 mA | - | Unshielded | 140mOhm Max | 50 @ 25MHz | 230MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-361HSFIXED IND 360NH 915MA 150MOHM SM |
0 |
|
Datasheet |
160 | 2-SMD | Bulk | Active | - | Iron | 360 nH | ±3% | 915 mA | - | Unshielded | 150mOhm Max | 50 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-391HSFIXED IND 390NH 890MA 160MOHM SM |
0 |
|
Datasheet |
160 | 2-SMD | Bulk | Active | - | Iron | 390 nH | ±3% | 890 mA | - | Unshielded | 160mOhm Max | 50 @ 25MHz | 210MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-421HSFIXED IND 430NH 860MA 170MOHM SM |
0 |
|
Datasheet |
160 | 2-SMD | Bulk | Active | - | Iron | 430 nH | ±3% | 860 mA | - | Unshielded | 170mOhm Max | 50 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-471HSFIXED IND 470NH 835MA 180MOHM SM |
0 |
|
Datasheet |
160 | 2-SMD | Bulk | Active | - | Iron | 470 nH | ±3% | 835 mA | - | Unshielded | 180mOhm Max | 50 @ 25MHz | 190MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
