Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTHF25-30SMFIXED IND 25UH 2.16A 70 MOHM SMD |
0 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 25 µH | ±10% | 2.16 A | - | Shielded | 70mOhm Max | - | 25MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
|

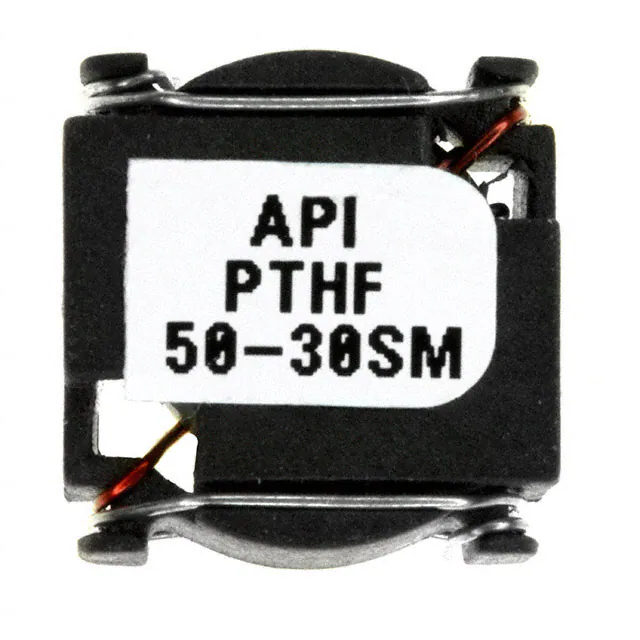

PTHF50-30SMFIXED IND 50UH 1.81A 100MOHM SMD |
0 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | - | 50 µH | ±10% | 1.81 A | - | Shielded | 100mOhm Max | - | 10MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
|
|
PTHF75-30SMFIXED IND 75UH 1.62A 130MOHM SMD |
0 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 75 µH | ±10% | 1.62 A | - | Shielded | 130mOhm Max | - | 7MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
|
|
PTHF100-30SMFIXED IND 100UH 1.5A 150MOHM SMD |
0 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 100 µH | ±10% | 1.5 A | - | Shielded | 150mOhm Max | - | 6MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
|
|
PTHF150-30SMFIXED IND 150UH 1.33A 190MOHM SM |
0 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 150 µH | ±10% | 1.33 A | - | Shielded | 190mOhm Max | - | 3.5MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
|
|
PTHF200-30SMFIXED IND 200UH 1.04A 300MOHM SM |
0 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 200 µH | ±10% | 1.04 A | - | Shielded | 300mOhm Max | - | 3MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
|
|
PTHF250-30SMFIXED IND 250UH 960MA 360MOHM SM |
0 |
|
Datasheet |
PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 250 µH | ±10% | 960 mA | - | Shielded | 360mOhm Max | - | 3MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
|
|
2534R-00JFIXED IND 100UH 330MA 1.5 OHM TH |
0 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 100 µH | ±5% | 330 mA | - | Unshielded | 1.5Ohm Max | 100 @ 790kHz | 4MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-02JFIXED IND 120UH 300MA 1.8 OHM TH |
0 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 120 µH | ±5% | 300 mA | - | Unshielded | 1.8Ohm Max | 95 @ 790kHz | 3.3MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-04JFIXED IND 150UH 285MA 2 OHM TH |
0 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 150 µH | ±5% | 285 mA | - | Unshielded | 2Ohm Max | 90 @ 790kHz | 3.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-06JFIXED IND 180UH 277MA 2.2 OHM TH |
0 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 180 µH | ±5% | 277 mA | - | Unshielded | 2.2Ohm Max | 85 @ 790kHz | 2.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-08JFIXED IND 220UH 265MA 2.4 OHM TH |
0 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 220 µH | ±5% | 265 mA | - | Unshielded | 2.4Ohm Max | 90 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-10JFIXED IND 270UH 229MA 3.2 OHM TH |
0 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 270 µH | ±5% | 229 mA | - | Unshielded | 3.2Ohm Max | 95 @ 790kHz | 2.3MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-12JFIXED IND 330UH 220MA 3.4 OHM TH |
0 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 330 µH | ±5% | 220 mA | - | Unshielded | 3.4Ohm Max | 90 @ 790kHz | 2.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-14JFIXED IND 390UH 203MA 4.1 OHM TH |
0 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 390 µH | ±5% | 203 mA | - | Unshielded | 4.1Ohm Max | 80 @ 790kHz | 2MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-16JFIXED IND 470UH 193MA 4.5 OHM TH |
0 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 470 µH | ±5% | 193 mA | - | Unshielded | 4.5Ohm Max | 70 @ 790kHz | 1.9MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-18JFIXED IND 560UH 187MA 4.8 OHM TH |
0 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 560 µH | ±5% | 187 mA | - | Unshielded | 4.8Ohm Max | 65 @ 790kHz | 1.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-20JFIXED IND 680UH 175MA 5.4 OHM TH |
0 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 680 µH | ±5% | 175 mA | - | Unshielded | 5.4Ohm Max | 65 @ 790kHz | 1.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-22JFIXED IND 820UH 170MA 5.8 OHM TH |
0 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 820 µH | ±5% | 170 mA | - | Unshielded | 5.8Ohm Max | 65 @ 790kHz | 1.6MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-24JFIXED IND 1MH 160MA 6.4 OHM TH |
0 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 1 mH | ±5% | 160 mA | - | Unshielded | 6.4Ohm Max | 65 @ 790kHz | 1.4MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
