Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744309012FIXED IND 120NH 47.5A 0.000165OH |
263 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 120 nH | ±20% | 47.5 A | 125A | Shielded | 0.165mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1390 | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.374" (9.50mm) |
|
PM5432.153NLTFIXED IND 15UH 6A 43.75MOHM SMD |
116 |
|
Datasheet |
PM5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 6 A | - | Shielded | 43.75mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
|
CDEIR6D31FHF-4R7MCFIXED IND 4.7UH 4.7A 26 MOHM SMD |
3,897 |
|
Datasheet |
CDEIR6D31F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 4.7 A | 4A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|

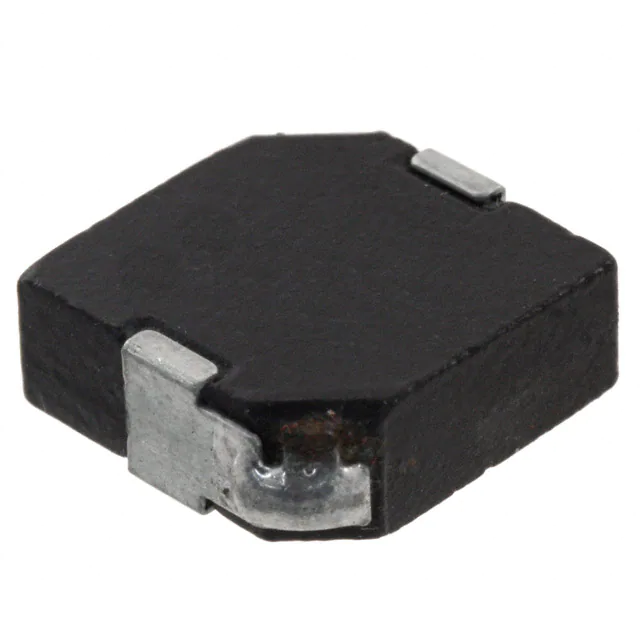

PM12651S-4R7M-RCFIXED IND 4.7UH 12A 15 MOHM SMD |
2,399 |
|
Datasheet |
PM12651S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 4.7 µH | ±20% | 12 A | 27A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
SLF12575T-221M1R3-HFIXED IND 220UH 1.3A 309.6 MOHM |
1,614 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.3 A | 1.3A | Shielded | 309.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
PM12645S-2R7M-RCFIXED IND 2.7UH 17A 7.3 MOHM SMD |
1,500 |
|
Datasheet |
PM12645S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 2.7 µH | ±20% | 17 A | 32A | Shielded | 7.3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
IHLP5050FDERR82M01FIXED IND 820NH 33A 1.9 MOHM SMD |
1,261 |
|
Datasheet |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 33 A | 50A | Shielded | 1.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|

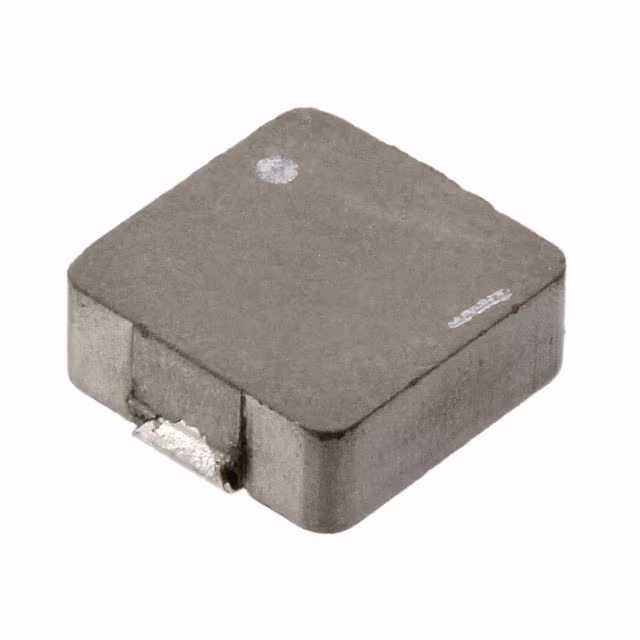

MPC1040LR56CFIXED IND 560NH 23A 1.3 MOHM SMD |
1,138 |
|
Datasheet |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 560 nH | ±20% | 23 A | 25A | Shielded | 1.3mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
744776333FIXED IND 3MH 350MA 7 OHM SMD |
979 |
|
Datasheet |
WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 mH | ±10% | 350 mA | 400mA | Unshielded | 7Ohm Max | - | 900kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.354" W (10.20mm x 9.00mm) | 0.272" (6.90mm) |
|
|
SLF12575T-680M2R0-HFIXED IND 68UH 2A 93.36 MOHM SMD |
500 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2 A | 2A | Shielded | 93.36mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
IHLP5050EZER820M5AFIXED IND 82UH 3A 201 MOHM SMD |
206 |
|
Datasheet |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 82 µH | ±20% | 3 A | 3.1A | Shielded | 201mOhm Max | - | 2.9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|

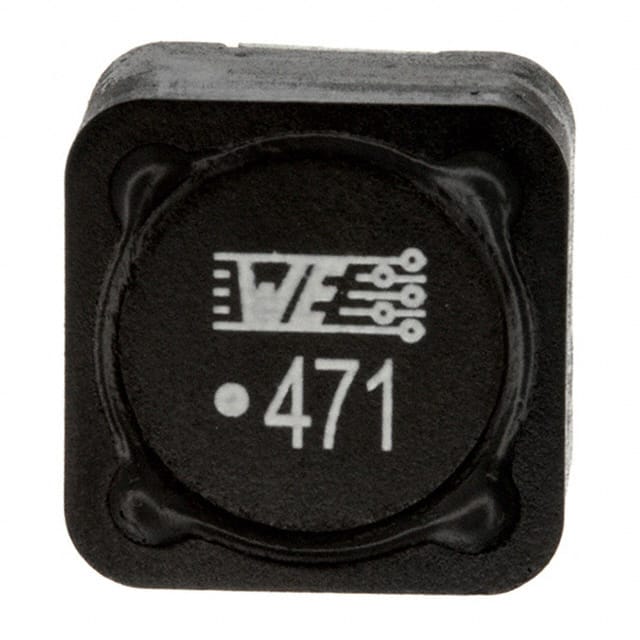

744770247FIXED IND 470UH 900MA 980MOHM SM |
6,583 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 900 mA | 900mA | Shielded | 980mOhm Max | - | 2.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

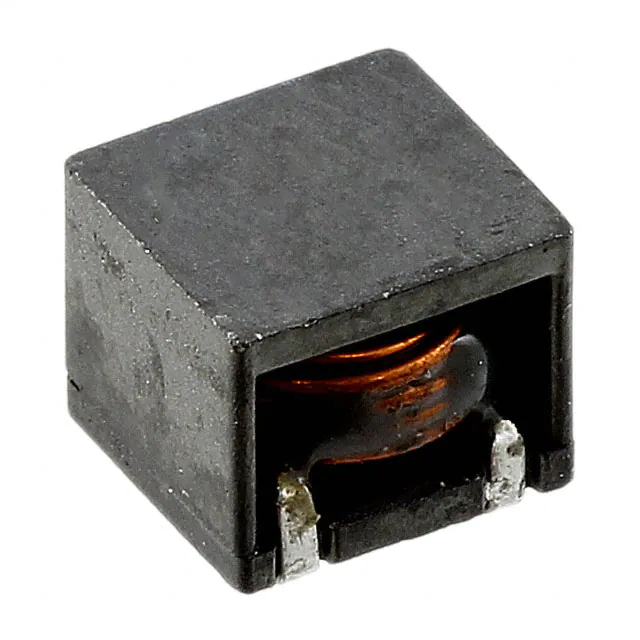

PG0871.102NLTFIXED IND 1UH 17.5A 2.3 MOHM SMD |
2,775 |
|
Datasheet |
PG0871NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 17.5 A | 17.5A | Shielded | 2.3mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|
744770215FIXED IND 150UH 1.8A 280MOHM SMD |
2,342 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.8 A | 1.8A | Shielded | 280mOhm Max | - | 3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

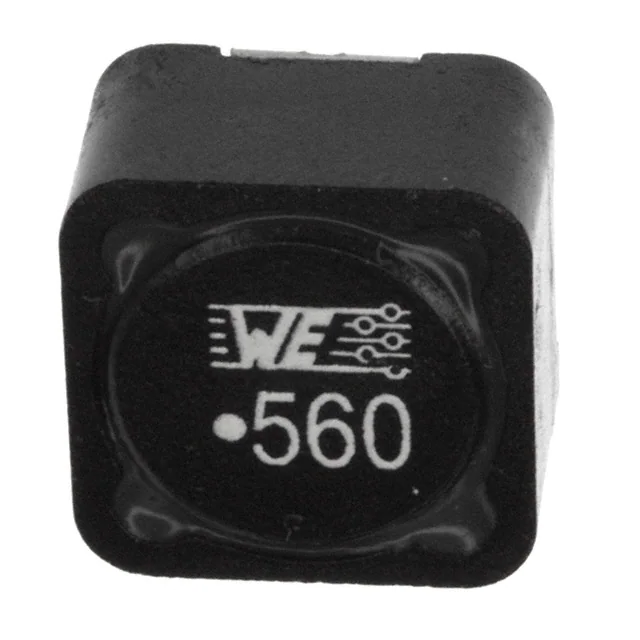

744770156FIXED IND 56UH 2.4A 110 MOHM SMD |
2,112 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 2.4 A | 2.9A | Shielded | 110mOhm Max | - | 7.1MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

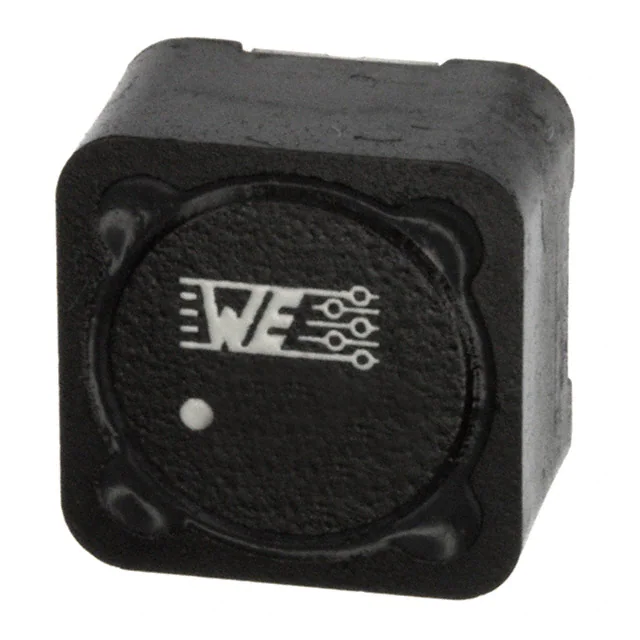

74477002FIXED IND 2.4UH 10.1A 12MOHM SMD |
1,511 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.4 µH | -20%, +40% | 10.1 A | 14.3A | Shielded | 12mOhm Max | - | 41MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
UP2B-471-RFIXED IND 470UH 553MA 1.31OHM SM |
1,457 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 553 mA | 427mA | Unshielded | 1.31Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
|
PG0871.222NLTFIXED IND 2.2UH 9.5A 7.6MOHM SMD |
1,391 |
|
Datasheet |
PG0871NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 9.5 A | 12A | Shielded | 7.6mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|
DRA73-471-RFIXED IND 470UH 326MA 2.67OHM SM |
1,374 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 326 mA | 354mA | Shielded | 2.67Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SBCP-14HY471BFIXED IND 470UH 800MA 540MOHM TH |
1,308 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 800 mA | 1.48A | Unshielded | 540mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
