Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1944R-14FFIXED IND 1.2UH 1A 280 MOHM TH |
0 |
|
Datasheet |
1944R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.2 µH | ±1% | 1 A | - | Unshielded | 280mOhm Max | 45 @ 20MHz | 176MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.193" Dia x 0.447" L (4.90mm x 11.35mm) | - |
|
PL8505FIXED IND 100UH 1.2A 285MOHM SMD |
0 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 100 µH | ±10% | 1.2 A | - | Unshielded | 285mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8505NLFIXED IND 100UH 1.2A 285MOHM SMD |
0 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 100 µH | ±10% | 1.2 A | - | Unshielded | 285mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8502NLFIXED IND 25UH 2.4A 74 MOHM SMD |
0 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 25 µH | ±10% | 2.4 A | - | Unshielded | 74mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
IHM2EB1R2KFIXED IND 1.2UH 17A 5 MOHM TH |
0 |
|
Datasheet |
IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 1.2 µH | ±10% | 17 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2EB1R8KFIXED IND 1.8UH 15.6A 6 MOHM TH |
0 |
|
Datasheet |
IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 1.8 µH | ±10% | 15.6 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2EB2R2KFIXED IND 2.2UH 15A 7 MOHM TH |
0 |
|
Datasheet |
IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 2.2 µH | ±10% | 15 A | - | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM1R0KFIXED IND 1UH 17.8A 5 MOHM TH |
0 |
|
Datasheet |
IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 1 µH | ±10% | 17.8 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM1R2KFIXED IND 1.2UH 17A 5 MOHM TH |
0 |
|
Datasheet |
IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 1.2 µH | ±10% | 17 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM1R8KFIXED IND 1.8UH 15.6A 6 MOHM TH |
0 |
|
Datasheet |
IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 1.8 µH | ±10% | 15.6 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM2R2KFIXED IND 2.2UH 15A 7 MOHM TH |
0 |
|
Datasheet |
IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 2.2 µH | ±10% | 15 A | - | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM2R7KFIXED IND 2.7UH 14.5A 8 MOHM TH |
0 |
|
Datasheet |
IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 2.7 µH | ±10% | 14.5 A | - | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM3R9KFIXED IND 3.9UH 13.5A 9 MOHM TH |
0 |
|
Datasheet |
IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 3.9 µH | ±10% | 13.5 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM4R7KFIXED IND 4.7UH 13A 10 MOHM TH |
0 |
|
Datasheet |
IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 4.7 µH | ±10% | 13 A | - | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM5R6KFIXED IND 5.6UH 12.75A 11MOHM TH |
0 |
|
Datasheet |
IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 5.6 µH | ±10% | 12.75 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM6R8KFIXED IND 6.8UH 12.5A 12 MOHM TH |
0 |
|
Datasheet |
IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 6.8 µH | ±10% | 12.5 A | - | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
IHM2PM8R2KFIXED IND 8.2UH 11.25A 13MOHM TH |
0 |
|
Datasheet |
IHM-2 | Radial, Horizontal | - | Active | - | Ferrite | 8.2 µH | ±10% | 11.25 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" L x 0.500" W (25.40mm x 12.70mm) | 0.560" (14.22mm) |
|
|
CLB1108-3-50TR-RFIXED IND 200NH 0.00028OHM SMD |
0 |
|
Datasheet |
CLB | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 200 nH | ±20% | - | 25A | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 3 Phase | Surface Mount | - | 1.063" L x 0.433" W (27.00mm x 11.00mm) | 0.315" (8.00mm) |
|

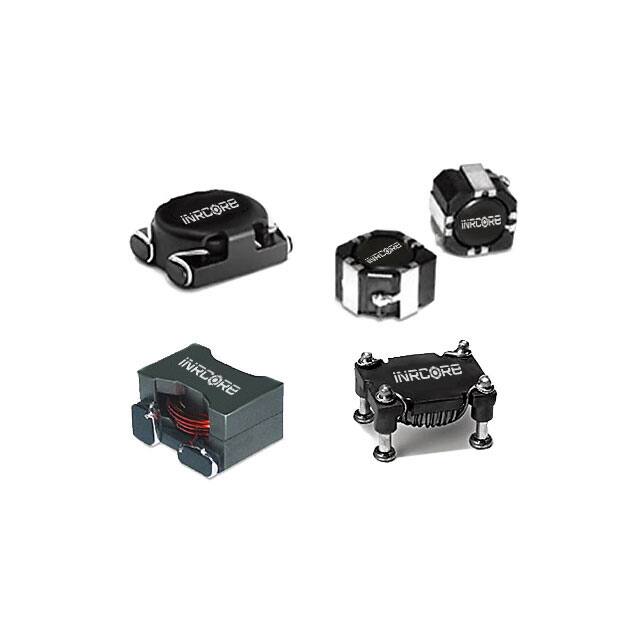

PL8507FIXED IND 220UH 820MA 673MOHM SM |
0 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 220 µH | ±10% | 820 mA | - | Unshielded | 673mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8507NLFIXED IND 220UH 820MA 673MOHM SM |
0 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 220 µH | ±10% | 820 mA | - | Unshielded | 673mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
