Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT150-1040FIXED IND 150UH 3.4A 100 MOHM TH |
0 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 3.4 A | - | Shielded | 100mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.040" Dia x 0.500" W (26.42mm x 12.70mm) | - |
|
|
PT150-1250FIXED IND 150UH 5.7A 60 MOHM TH |
0 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 5.7 A | - | Shielded | 60mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.250" Dia x 0.700" W (31.75mm x 17.78mm) | - |
|
|
PT150-1500FIXED IND 150UH 7.7A 50 MOHM TH |
0 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 7.7 A | - | Shielded | 50mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia x 0.620" W (38.10mm x 15.75mm) | - |
|
|
PT150-2050FIXED IND 150UH 12.3A 40 MOHM TH |
0 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 12.3 A | - | Shielded | 40mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 2.050" Dia x 0.920" W (52.07mm x 23.37mm) | - |
|
|
PT150R-1040FIXED IND 150UH 3.4A 100 MOHM TH |
0 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 3.4 A | - | Unshielded | 100mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.040" Dia x 0.500" W (26.42mm x 12.70mm) | - |
|
|
PT150R-1250FIXED IND 150UH 5.7A 60 MOHM TH |
0 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 5.7 A | - | Unshielded | 60mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.250" Dia x 0.580" W (31.75mm x 14.73mm) | - |
|
|
PT150R-1500FIXED IND 150UH 7.7A 50 MOHM TH |
0 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 7.7 A | - | Unshielded | 50mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia x 0.620" W (38.10mm x 15.75mm) | - |
|
|
PT150R-2050FIXED IND 150UH 12.3A 40 MOHM TH |
0 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 12.3 A | - | Unshielded | 40mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 2.050" Dia x 0.920" W (52.07mm x 23.37mm) | - |
|
|
050KM5002HHORIZONTAL TOROIDAL INDUCTOR |
0 |
|
Datasheet |
KM | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 50 µH | ±10% | 3.93 A | 1.3A | Shielded | 35mOhm Max | - | 7MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia (15.88mm) | 0.300" (7.62mm) |
|
|
SMG8527-471MLFMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 4.7 µH | ±20% | 810 mA | - | Unshielded | 648mOhm Max | 35 @ 7.9MHz | 87MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.870" L x 0.270" W (22.10mm x 6.86mm) | 0.290" (7.37mm) |
|
PL8300FIXED IND 38UH 9.5A 19.3MOHM SMD |
0 |
|
Datasheet |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 38 µH | - | 9.5 A | - | Unshielded | 19.3mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
PL8300NLFIXED IND 38UH 9.5A 19.3MOHM SMD |
0 |
|
Datasheet |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 38 µH | - | 9.5 A | - | Unshielded | 19.3mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|

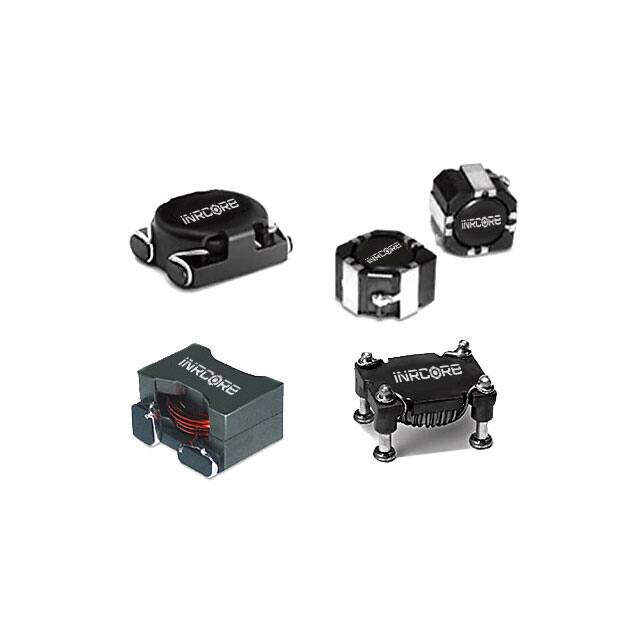

PL8304FIXED IND 8.4UH 19A 5.1 MOHM SMD |
0 |
|
Datasheet |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 8.4 µH | - | 19 A | - | Unshielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
PL8304NLFIXED IND 8.4UH 19A 5.1 MOHM SMD |
0 |
|
Datasheet |
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 8.4 µH | - | 19 A | - | Unshielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
SP1008-102GFIXED IND 1UH 705MA 228 MOHM SMD |
0 |
|
Datasheet |
SP1008 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±2% | 705 mA | - | Shielded | 228mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
SP1008-103GFIXED IND 10UH 258MA 1.7 OHM SMD |
0 |
|
Datasheet |
SP1008 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±2% | 258 mA | - | Shielded | 1.7Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
SP1008-104GFIXED IND 100UH 102MA 10.9OHM SM |
0 |
|
Datasheet |
SP1008 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±2% | 102 mA | - | Shielded | 10.9Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
SP1008-122GFIXED IND 1.2UH 671MA 252MOHM SM |
0 |
|
Datasheet |
SP1008 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±2% | 671 mA | - | Shielded | 252mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
SP1008-123GFIXED IND 12UH 246MA 1.87OHM SMD |
0 |
|
Datasheet |
SP1008 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±2% | 246 mA | - | Shielded | 1.87Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
SP1008-152GFIXED IND 1.5UH 627MA 288MOHM SM |
0 |
|
Datasheet |
SP1008 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±2% | 627 mA | - | Shielded | 288mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
