Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIL1331-562KFIXED IND 5.6UH 124MA 2.9OHM SMD |
0 |
|
Datasheet |
MIL1331 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 5.6 µH | ±10% | 124 mA | 124mA | Shielded | 2.9Ohm Max | 50 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
MIL1331-681KFIXED IND 680NH 430MA 240MOHM SM |
0 |
|
Datasheet |
MIL1331 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 680 nH | ±10% | 430 mA | 430mA | Shielded | 240mOhm Max | 39 @ 25MHz | 180MHz | - | -55°C ~ 105°C | 25 MHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
MIL1331-682KFIXED IND 6.8UH 118MA 3.2OHM SMD |
0 |
|
Datasheet |
MIL1331 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 6.8 µH | ±10% | 118 mA | 118mA | Shielded | 3.2Ohm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
MIL1331-821KFIXED IND 820NH 405MA 270MOHM SM |
0 |
|
Datasheet |
MIL1331 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 820 nH | ±10% | 405 mA | 405mA | Shielded | 270mOhm Max | 38 @ 25MHz | 165MHz | - | -55°C ~ 105°C | 25 MHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|
|
MIL1331-822KFIXED IND 8.2UH 111MA 3.6OHM SMD |
0 |
|
Datasheet |
MIL1331 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 8.2 µH | ±10% | 111 mA | 111mA | Shielded | 3.6Ohm Max | 50 @ 7.9MHz | 53MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.325" L x 0.125" W (8.26mm x 3.18mm) | 0.145" (3.68mm) |
|

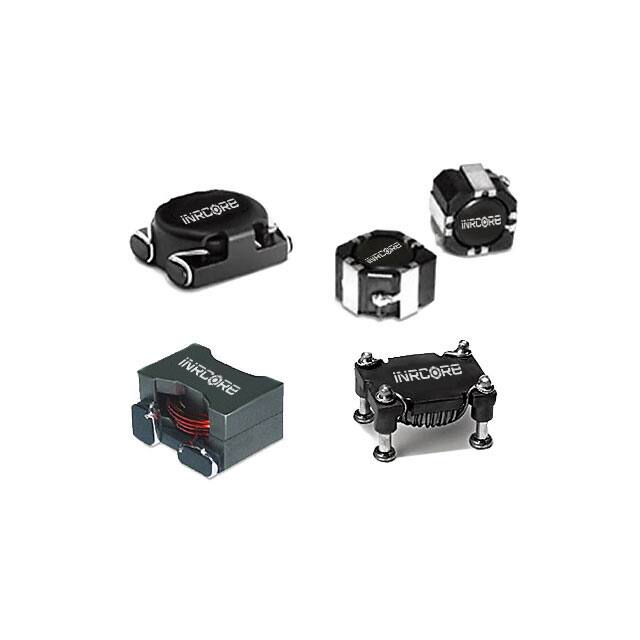

PL8161FIXED IND 4.2UH 11.4A 5.4MOHM SM |
0 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 4.2 µH | - | 11.4 A | - | Unshielded | 5.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
|
PL8161NLFIXED IND 4.2UH 11.4A 5.4MOHM SM |
0 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 4.2 µH | - | 11.4 A | - | Unshielded | 5.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
|
050AT7502VSMVERTICAL MOUNT TOROIDAL INDUCTOR |
0 |
|
Datasheet |
ATVSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 75 µH | ±10% | 3.47 A | 2.5A | Shielded | 45mOhm Max | - | 5MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.625" L x 0.550" W (15.87mm x 13.97mm) | 0.550" (13.97mm) |
|
|
SMP3316LP-332MLOW PROFILE UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
SMP3316LP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 2.3 A | 2.4A | Unshielded | 91.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.197" (5.00mm) |
|
|
SMP3316LP-682MLOW PROFILE UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
SMP3316LP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 1.7 A | 1.6A | Unshielded | 178mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.197" (5.00mm) |
|
|
SMP3316LP-102MLOW PROFILE UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
SMP3316LP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 4.4 A | 4.2A | Unshielded | 26.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.197" (5.00mm) |
|
|
SMP3316LP-152MLOW PROFILE UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
SMP3316LP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 3.5 A | 3.4A | Unshielded | 41mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.197" (5.00mm) |
|
|
SMP3316LP-222MLOW PROFILE UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
SMP3316LP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.9 A | 3A | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.197" (5.00mm) |
|
|
SMP3316LP-472MLOW PROFILE UNSHIELDED INDUCTOR |
0 |
|
Datasheet |
SMP3316LP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 2 A | 1.8A | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.197" (5.00mm) |
|
|
IHB3BV1R0MFIXED IND 1UH 20.3A 3 MOHM TH |
0 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 1 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3BV3R3MFIXED IND 3.3UH 20.3A 3 MOHM TH |
0 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 3.3 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3BV4R7MFIXED IND 4.7UH 20.3A 3 MOHM TH |
0 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 4.7 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3BV5R6MFIXED IND 5.6UH 20.3A 3 MOHM TH |
0 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 5.6 µH | ±20% | 20.3 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
IHB3BV8R2MFIXED IND 8.2UH 17.6A 4 MOHM TH |
0 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 8.2 µH | ±20% | 17.6 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|

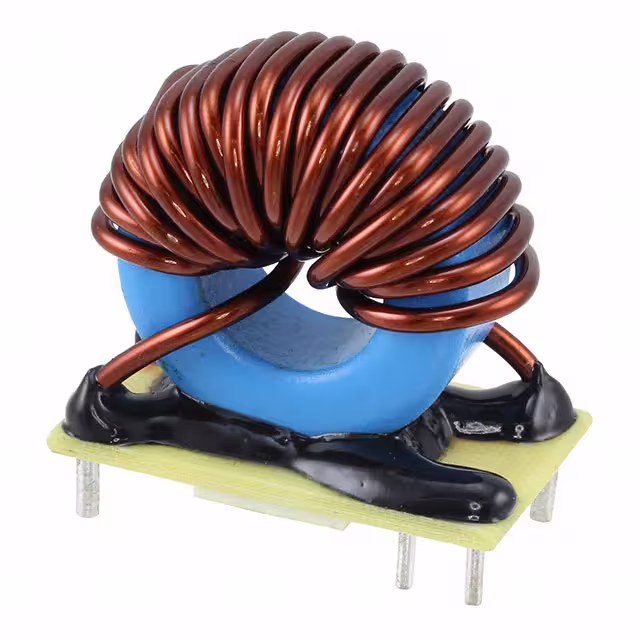

S14100036FIXED IND 56UH 17A 8.5 MOHM TH |
0 |
|
Datasheet |
WE-LCB | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 56 µH | ±20% | 17 A | - | Unshielded | 8.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 0.906" W (36.00mm x 23.00mm) | 1.378" (35.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
