Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HF1008R-392FFIXED IND 3.9UH 275MA 1.95OHM SM |
0 |
|
Datasheet |
HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±1% | 275 mA | - | Unshielded | 1.95Ohm Max | 30 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-471FFIXED IND 470NH 310MA 1.55OHM SM |
0 |
|
Datasheet |
HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±1% | 310 mA | - | Unshielded | 1.55Ohm Max | 30 @ 25MHz | 425MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-472FFIXED IND 4.7UH 273MA 2 OHM SMD |
0 |
|
Datasheet |
HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±1% | 273 mA | - | Unshielded | 2Ohm Max | 30 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-561FFIXED IND 560NH 300MA 1.65OHM SM |
0 |
|
Datasheet |
HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 560 nH | ±1% | 300 mA | - | Unshielded | 1.65Ohm Max | 30 @ 25MHz | 415MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-621FFIXED IND 620NH 290MA 1.75OHM SM |
0 |
|
Datasheet |
HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 620 nH | ±1% | 290 mA | - | Unshielded | 1.75Ohm Max | 30 @ 25MHz | 375MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-681FFIXED IND 680NH 280MA 1.85OHM SM |
0 |
|
Datasheet |
HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 nH | ±1% | 280 mA | - | Unshielded | 1.85Ohm Max | 30 @ 25MHz | 340MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-751FFIXED IND 750NH 275MA 1.95OHM SM |
0 |
|
Datasheet |
HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 750 nH | ±1% | 275 mA | - | Unshielded | 1.95Ohm Max | 30 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-821FFIXED IND 820NH 273MA 2 OHM SMD |
0 |
|
Datasheet |
HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 820 nH | ±1% | 273 mA | - | Unshielded | 2Ohm Max | 30 @ 25MHz | 325MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
HF1008R-911FFIXED IND 910NH 270MA 2.05OHM SM |
0 |
|
Datasheet |
HF1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 910 nH | ±1% | 270 mA | - | Unshielded | 2.05Ohm Max | 30 @ 25MHz | 305MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
SMRF2007-332MMOLDED VERT TOROIDAL INDUCTOR |
0 |
|
Datasheet |
SMRF2007 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 743 mA | 78mA | Unshielded | 330mOhm Max | - | 25MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.175" (4.44mm) |
|
|
SMRF2007-151MMOLDED VERT TOROIDAL INDUCTOR |
0 |
|
Datasheet |
SMRF2007 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.5 µH | ±20% | 1.59 A | 1.2A | Unshielded | 72mOhm Max | - | 125MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.175" (4.44mm) |
|
|
ER5025S-100JMINDUCTOR RF SMD |
0 |
|
Datasheet |
ER5025S | Nonstandard | Tape & Reel (TR) | Active | Molded | Phenolic | 100 nH | ±5% | 2.245 A | - | Shielded | 25mOhm Max | 45 @ 25MHz | 450MHz | - | -55°C ~ 105°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
ER5025S-152JMINDUCTOR RF SMD |
0 |
|
Datasheet |
ER5025S | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 15 µH | ±5% | 395 mA | - | Shielded | 800mOhm Max | 40 @ 2.5MHz | 42MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
PL8304NLTFIXED IND 8.4UH 19A 5.1 MOHM SMD |
0 |
|
Datasheet |
HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 8.4 µH | - | 19 A | - | Unshielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|

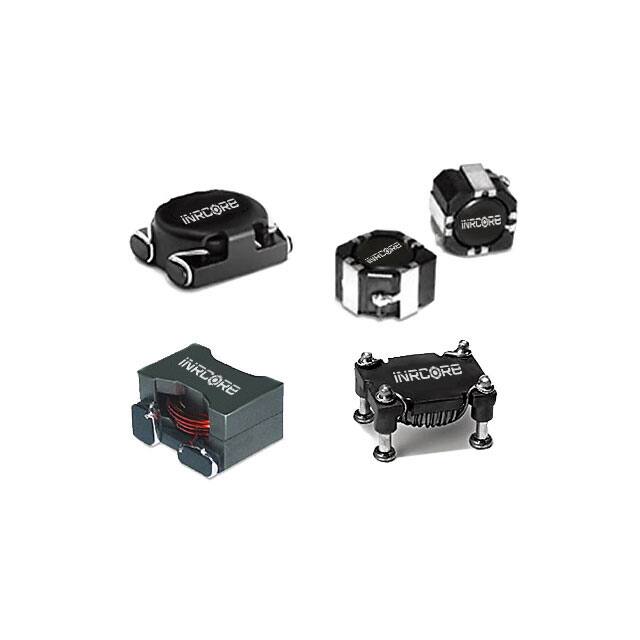

PL8304TFIXED IND 8.4UH 19A 5.1 MOHM SMD |
0 |
|
- |
HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 8.4 µH | - | 19 A | - | Unshielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PL9118TFIXED IND 68UH 1.8A 120 MOHM SMD |
0 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.8 A | 1.8A | Shielded | 120mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
030AT1503SMLFWIREWOUND TOROIDAL INDUCTOR |
0 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 150 µH | ±10% | 1.33 A | 1A | Shielded | 185mOhm Max | - | 3.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
030AT1503SMWIREWOUND TOROIDAL INDUCTOR |
0 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 150 µH | ±10% | 1.33 A | 1A | Shielded | 185mOhm Max | - | 3.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
CPCF2920AS-101MTHT HIGH CURRENT POWER INDUCTOR |
18 |
|
Datasheet |
CPCF2920AS | Vertical, 4 PC Pin | Tray | Active | Wirewound | Metal Composite | 100 µH | ±20% | 10.5 A | 9A | Shielded | 25.19mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 1.142" L x 0.945" W (29.00mm x 24.00mm) | 0.846" (21.50mm) |
|
|
CPCF2920LS-101MTHT HIGH CURRENT POWER INDUCTOR |
17 |
|
Datasheet |
CPCF2920LS | Vertical, 4 PC Pin | Tray | Active | Wirewound | Metal Composite | 100 µH | ±20% | 8.2 A | 9.48A | Shielded | 39.49mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 1.142" L x 0.945" W (29.00mm x 24.00mm) | 0.846" (21.50mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
