Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9250A-153-RCFIXED IND 15UH 315MA 800 MOHM TH |
3,805 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 15 µH | ±10% | 315 mA | 250mA | Shielded | 800mOhm Max | 45 @ 2.5MHz | 49MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-122-RCFIXED IND 1.2UH 895MA 100MOHM TH |
2,192 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 1.2 µH | ±10% | 895 mA | 895mA | Shielded | 100mOhm Max | 44 @ 7.9MHz | 130MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
ETQ-P6M1R5YLCFIXED IND 1.5UH 23.3A 3.52 MOHM |
1,864 |
|
Datasheet |
PCC-M1060ML | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 23.3 A | 32A | Shielded | 3.52mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.236" (6.00mm) |
|
9250A-224-TR-RCFIXED IND 220UH 120MA 5 OHM TH |
1,623 |
|
Datasheet |
9250A | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 220 µH | ±10% | 120 mA | 80mA | Shielded | 5Ohm Max | 55 @ 790kHz | 7.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-222-RCFIXED IND 2.2UH 650MA 190MOHM TH |
1,440 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 2.2 µH | ±10% | 650 mA | 650mA | Shielded | 190mOhm Max | 44 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-273-RCFIXED IND 27UH 260MA 1.19 OHM TH |
1,418 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 27 µH | ±10% | 260 mA | 200mA | Shielded | 1.19Ohm Max | 45 @ 2.5MHz | 38MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-334-RCFIXED IND 330UH 110MA 6.4 OHM TH |
1,367 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 330 µH | ±10% | 110 mA | 65mA | Shielded | 6.4Ohm Max | 55 @ 790kHz | 6.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-392-RCFIXED IND 3.9UH 450MA 400MOHM TH |
1,046 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 3.9 µH | ±10% | 450 mA | 450mA | Shielded | 400mOhm Max | 44 @ 7.9MHz | 75MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-685-RCFIXED IND 6.8MH 27MA 111 OHM TH |
994 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 6.8 mH | ±10% | 27 mA | 16mA | Shielded | 111Ohm Max | 40 @ 250kHz | 660kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-391-RCFIXED IND 390NH 670MA 180MOHM TH |
959 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 390 nH | ±10% | 670 mA | 670mA | Shielded | 180mOhm Max | 44 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-333-RCFIXED IND 33UH 240MA 1.37 OHM TH |
955 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 33 µH | ±10% | 240 mA | 190mA | Shielded | 1.37Ohm Max | 45 @ 2.5MHz | 34MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-185-RCFIXED IND 1.8MH 50MA 29.9 OHM TH |
932 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 1.8 mH | ±10% | 50 mA | 30mA | Shielded | 29.9Ohm Max | 45 @ 250kHz | 1MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-155-RCFIXED IND 1.5MH 55MA 26.5 OHM TH |
899 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 1.5 mH | ±10% | 55 mA | 33mA | Shielded | 26.5Ohm Max | 45 @ 250kHz | 1.2MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250A-224-RCFIXED IND 220UH 125MA 5 OHM TH |
872 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 220 µH | ±10% | 125 mA | 80mA | Shielded | 5Ohm Max | 55 @ 790kHz | 7.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-335-RCFIXED IND 3.3MH 40MA 53 OHM TH |
859 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 3.3 mH | ±10% | 40 mA | 22mA | Shielded | 53Ohm Max | 45 @ 250kHz | 840kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-684-RCFIXED IND 680UH 80MA 11.8 OHM TH |
819 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 680 µH | ±10% | 80 mA | 50mA | Shielded | 11.8Ohm Max | 60 @ 790kHz | 4.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
8230-30-RCFIXED IND 2.7UH 495MA 500MOHM TH |
797 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 495 mA | - | Unshielded | 500mOhm Max | 37 @ 7.9MHz | 100MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
9250A-274-RCFIXED IND 270UH 115MA 5.8 OHM TH |
796 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 270 µH | ±10% | 115 mA | 70mA | Shielded | 5.8Ohm Max | 55 @ 790kHz | 7MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

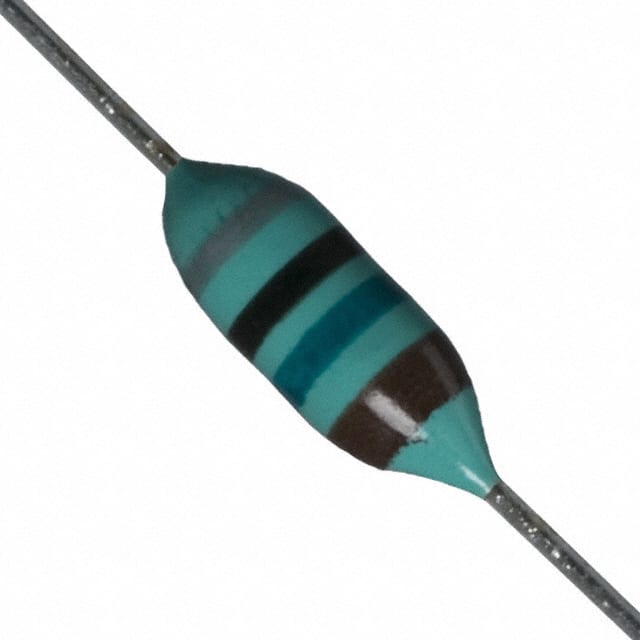

8230-48-RCFIXED IND 15UH 205MA 2.8 OHM TH |
793 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 205 mA | - | Unshielded | 2.8Ohm Max | 45 @ 2.5MHz | 35MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
9250A-562-RCFIXED IND 5.6UH 335MA 720MOHM TH |
744 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 5.6 µH | ±10% | 335 mA | 335mA | Shielded | 720mOhm Max | 44 @ 7.9MHz | 65MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
