Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB2-253RADIAL POWER LINE CHOKE |
0 |
|
Datasheet |
DB2 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 250 µH | ±15% | 2.4 A | 6.5A | Unshielded | 135mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.712" (18.08mm) |
|
|
DB2-193RADIAL POWER LINE CHOKE |
0 |
|
Datasheet |
DB2 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 190 µH | ±10% | 3 A | 7.6A | Unshielded | 110mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.712" (18.08mm) |
|
|
DB2-183RADIAL POWER LINE CHOKE |
0 |
|
Datasheet |
DB2 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 180 µH | ±10% | 4 A | 7.8A | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.712" (18.08mm) |
|

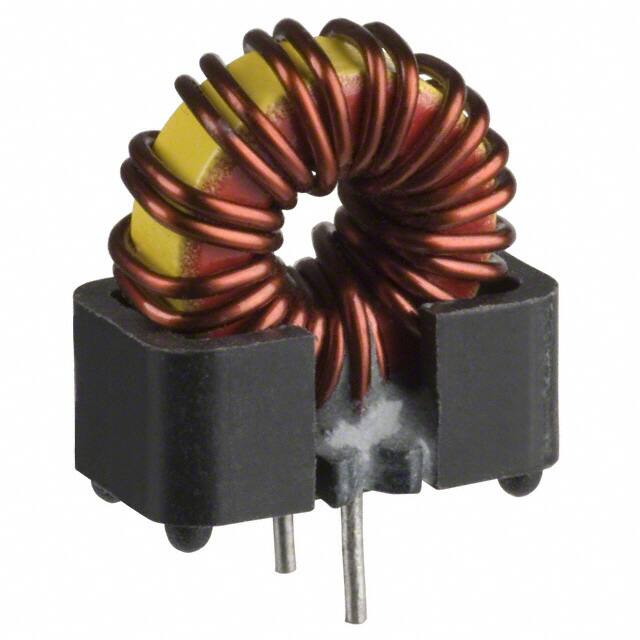

SWC-4.3-10FIXED IND 10.2UH 4.3A 26 MOHM TH |
0 |
|
Datasheet |
SW260 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 10.2 µH | ±20% | 4.3 A | - | Unshielded | 26mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
|
|
SH260C-4.3-10FIXED IND 10.2UH 4.3A 26 MOHM TH |
0 |
|
Datasheet |
SH260 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 10.2 µH | ±20% | 4.3 A | - | Unshielded | 26mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.580" L x 0.340" W (14.73mm x 8.64mm) | 0.690" (17.53mm) |
|
|
1025-74FFIXED IND 180UH 57MA 17 OHM TH |
0 |
|
Datasheet |
1025 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 180 µH | ±1% | 57 mA | - | Unshielded | 17Ohm Max | 30 @ 790kHz | 10MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-76FFIXED IND 220UH 52MA 21 OHM TH |
0 |
|
Datasheet |
1025 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 220 µH | ±1% | 52 mA | - | Unshielded | 21Ohm Max | 30 @ 790kHz | 9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-56FFIXED IND 33UH 130MA 3.4 OHM TH |
0 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 33 µH | ±1% | 130 mA | - | Unshielded | 3.4Ohm Max | 45 @ 2.5MHz | 24MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-58FFIXED IND 39UH 125MA 3.6 OHM TH |
0 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 39 µH | ±1% | 125 mA | - | Unshielded | 3.6Ohm Max | 45 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-60FFIXED IND 47UH 110MA 4.5 OHM TH |
0 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 47 µH | ±1% | 110 mA | - | Unshielded | 4.5Ohm Max | 45 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-62FFIXED IND 56UH 100MA 5.7 OHM TH |
0 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 56 µH | ±1% | 100 mA | - | Unshielded | 5.7Ohm Max | 45 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-64FFIXED IND 68UH 92MA 6.7 OHM TH |
0 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 68 µH | ±1% | 92 mA | - | Unshielded | 6.7Ohm Max | 50 @ 2.5MHz | 15MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-66FFIXED IND 82UH 88MA 7.3 OHM TH |
0 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 82 µH | ±1% | 88 mA | - | Unshielded | 7.3Ohm Max | 50 @ 2.5MHz | 14MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-68FFIXED IND 100UH 84MA 8 OHM TH |
0 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 100 µH | ±1% | 84 mA | - | Unshielded | 8Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-70FFIXED IND 120UH 66MA 13 OHM TH |
0 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 120 µH | ±1% | 66 mA | - | Unshielded | 13Ohm Max | 30 @ 790kHz | 12MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-72FFIXED IND 150UH 61MA 15 OHM TH |
0 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 150 µH | ±1% | 61 mA | - | Unshielded | 15Ohm Max | 30 @ 790kHz | 11MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-74FFIXED IND 180UH 57MA 17 OHM TH |
0 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 180 µH | ±1% | 57 mA | - | Unshielded | 17Ohm Max | 30 @ 790kHz | 10MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-76FFIXED IND 220UH 52MA 21 OHM TH |
0 |
|
Datasheet |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 220 µH | ±1% | 52 mA | - | Unshielded | 21Ohm Max | 30 @ 790kHz | 9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
IHSM5832ER102LFIXED IND 1MH 370MA 4.2 OHM SMD |
0 |
|
Datasheet |
IHSM-5832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±15% | 370 mA | 210mA | Unshielded | 4.2Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
|
GA40-562KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA40 | Axial | Tape & Reel (TR) | Active | Wirewound | Ferrite | 56 µH | ±10% | 3.506 mA | 3.66A | Unshielded | 37mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
