Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB1-103LFRADIAL POWR LINE CHOKE |
0 |
|
Datasheet |
DB1 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 100 µH | ±10% | 2.8 A | 7.5A | Unshielded | 72mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.650" Dia (16.51mm) | 0.712" (18.08mm) |
|
|
MLRF0603-0039GSMIL CERAMIC CHIP INDUCTOR |
0 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 3.9 nH | ±2% | 1 A | - | Unshielded | 70mOhm Max | 22 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
SWS-2.70-77FIXED IND 77UH 2.7A 90 MOHM SMD |
0 |
|
Datasheet |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 77 µH | ±20% | 2.7 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.506" (12.85mm) |
|
|
SWS-3.00-53FIXED IND 53UH 3A 80 MOHM SMD |
0 |
|
Datasheet |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 53 µH | ±20% | 3 A | - | Unshielded | 80mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.506" (12.85mm) |
|

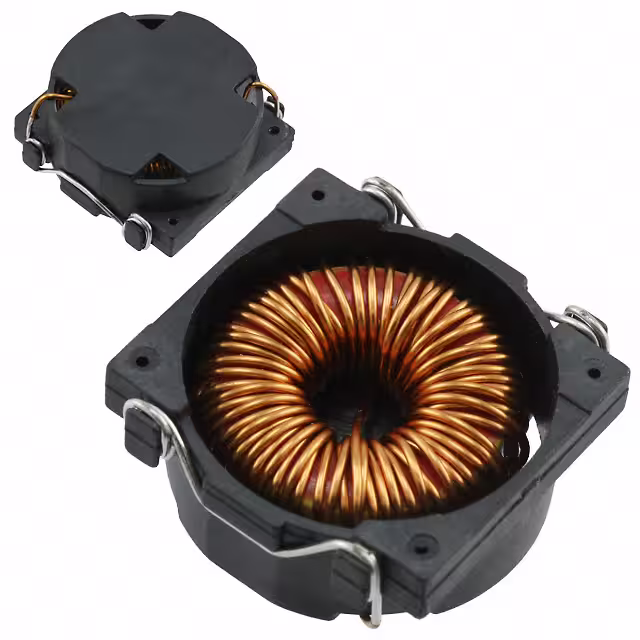

SH150S-2.70-77FIXED IND 77UH 2.7A 90 MOHM SMD |
0 |
|
Datasheet |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 77 µH | ±20% | 2.7 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.427" (10.85mm) |
|
5716FIXED IND 125UH 7.75A 32 MOHM TH |
0 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 125 µH | ±15% | 7.75 A | - | Unshielded | 32mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - |
|
|
5717FIXED IND 500UH 4A 150 MOHM TH |
0 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 500 µH | ±15% | 4 A | - | Unshielded | 150mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - |
|
|
5718FIXED IND 1.1MH 2.5A 330 MOHM TH |
0 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 1.1 mH | ±15% | 2.5 A | - | Unshielded | 330mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - |
|
|
5719FIXED IND 2.25MH 1.75A 920MOHM |
0 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 2.25 mH | ±15% | 1.75 A | - | Unshielded | 920mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - |
|
|
5720FIXED IND 4.5MH 1.25A 2.64OHM TH |
0 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 4.5 mH | ±15% | 1.25 A | - | Unshielded | 2.64Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - |
|
1812-101FFIXED IND 100NH 818MA 300MOHM SM |
0 |
|
Datasheet |
1812 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 100 nH | ±1% | 818 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 650MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812-121FFIXED IND 120NH 818MA 300MOHM SM |
0 |
|
Datasheet |
1812 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 120 nH | ±1% | 818 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812-151FFIXED IND 150NH 818MA 300MOHM SM |
0 |
|
Datasheet |
1812 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±1% | 818 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 500MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812-181FFIXED IND 180NH 757MA 350MOHM SM |
0 |
|
Datasheet |
1812 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 180 nH | ±1% | 757 mA | - | Unshielded | 350mOhm Max | 30 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812-221FFIXED IND 220NH 708MA 400MOHM SM |
0 |
|
Datasheet |
1812 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±1% | 708 mA | - | Unshielded | 400mOhm Max | 30 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812-271FFIXED IND 270NH 668MA 450MOHM SM |
0 |
|
Datasheet |
1812 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 270 nH | ±1% | 668 mA | - | Unshielded | 450mOhm Max | 30 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812-331FFIXED IND 330NH 604MA 550MOHM SM |
0 |
|
Datasheet |
1812 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 330 nH | ±1% | 604 mA | - | Unshielded | 550mOhm Max | 30 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812-391FFIXED IND 390NH 535MA 700MOHM SM |
0 |
|
Datasheet |
1812 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 390 nH | ±1% | 535 mA | - | Unshielded | 700mOhm Max | 30 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812-471FFIXED IND 470NH 501MA 800MOHM SM |
0 |
|
Datasheet |
1812 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 470 nH | ±1% | 501 mA | - | Unshielded | 800mOhm Max | 30 @ 25MHz | 190MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812-561FFIXED IND 560NH 409MA 1.2OHM SMD |
0 |
|
Datasheet |
1812 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 560 nH | ±1% | 409 mA | - | Unshielded | 1.2Ohm Max | 30 @ 25MHz | 170MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
