Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4470R-42HFIXED IND 2.7MH 112MA 40 OHM TH |
0 |
|
Datasheet |
4470R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 2.7 mH | ±3% | 112 mA | - | Unshielded | 40Ohm Max | 65 @ 250kHz | 1.04MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
4470R-43HFIXED IND 3.3MH 105MA 45 OHM TH |
0 |
|
Datasheet |
4470R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 3.3 mH | ±3% | 105 mA | - | Unshielded | 45Ohm Max | 65 @ 250kHz | 960kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
4470R-44HFIXED IND 3.9MH 100MA 49 OHM TH |
0 |
|
Datasheet |
4470R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 3.9 mH | ±3% | 100 mA | - | Unshielded | 49Ohm Max | 65 @ 250kHz | 800kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
4470R-45HFIXED IND 4.7MH 95MA 53 OHM TH |
0 |
|
Datasheet |
4470R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 4.7 mH | ±3% | 95 mA | - | Unshielded | 53Ohm Max | 65 @ 250kHz | 760kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
4470R-46HFIXED IND 5.6MH 90MA 60 OHM TH |
0 |
|
Datasheet |
4470R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 5.6 mH | ±3% | 90 mA | - | Unshielded | 60Ohm Max | 65 @ 250kHz | 680kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
4470R-47HFIXED IND 6.8MH 85MA 67 OHM TH |
0 |
|
Datasheet |
4470R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 6.8 mH | ±3% | 85 mA | - | Unshielded | 67Ohm Max | 65 @ 250kHz | 600kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
4470R-48HFIXED IND 8.2MH 82MA 75 OHM TH |
0 |
|
Datasheet |
4470R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 8.2 mH | ±3% | 82 mA | - | Unshielded | 75Ohm Max | 65 @ 250kHz | 520kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
4470R-49HFIXED IND 10MH 80MA 80 OHM TH |
0 |
|
Datasheet |
4470R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 10 mH | ±3% | 80 mA | - | Unshielded | 80Ohm Max | 65 @ 250kHz | 470kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
PL9503TFIXED IND 4UH 2.1A 27 MOHM SMD |
0 |
|
Datasheet |
PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 4 µH | ±30% | 2.1 A | 2.1A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|
|
2B103LFWW HIGH CURRENT POWER CHOKE |
0 |
|
Datasheet |
BLF | Axial | Bulk | Active | Toroidal | - | 100 µH | ±10% | 2 A | - | Unshielded | 155mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.850" L (11.43mm x 21.59mm) | - |
|
|
2B103WW HIGH CURRENT POWER CHOKE |
0 |
|
Datasheet |
B | Axial | Bulk | Active | Toroidal | - | 100 µH | ±10% | 2 A | - | Unshielded | 155mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.850" L (11.43mm x 21.59mm) | - |
|

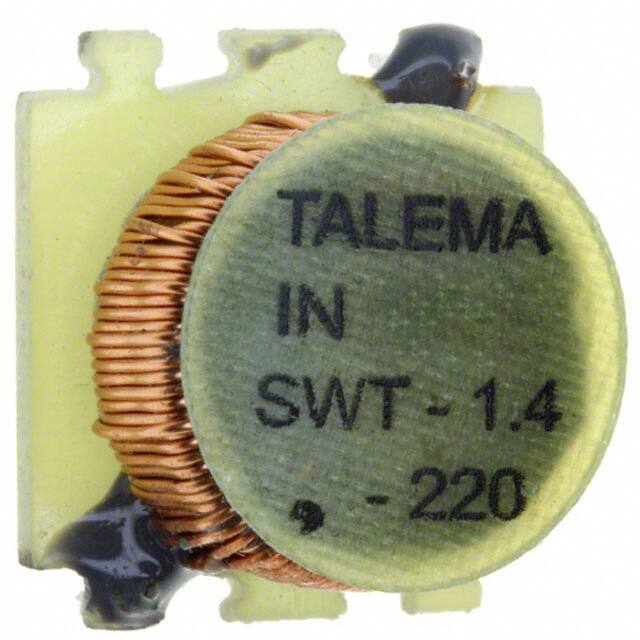

SWT-1.4-220FIXED IND 220UH 1.4A 380 MOHM TH |
0 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Tray | Obsolete | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.422" (10.71mm) |
|
|
SMG5025-270KLFMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 270 nH | ±10% | 2.285 A | - | Unshielded | 70mOhm Max | 45 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
|
SMG5025-470KMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 470 nH | ±10% | 1.75 A | - | Unshielded | 120mOhm Max | 45 @ 25MHz | 310MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
|
SMG5025-270KMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 270 nH | ±10% | 2.285 A | - | Unshielded | 70mOhm Max | 45 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
|
SMG5025-560KLFMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 560 nH | ±10% | 1.645 A | - | Unshielded | 135mOhm Max | 50 @ 25MHz | 280MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
|
SMG5025-180KMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 180 nH | ±10% | 3.032 A | - | Unshielded | 40mOhm Max | 50 @ 25MHz | 500MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
|
SMG5025-680KLFMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 680 nH | ±10% | 1.555 A | - | Unshielded | 150mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
|
SMG5025-120KMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 120 nH | ±10% | 3.624 A | - | Unshielded | 28mOhm Max | 50 @ 25MHz | 530MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
|
SMG5025-390KMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 390 nH | ±10% | 1.915 A | - | Unshielded | 100mOhm Max | 45 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
