Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFDI003030121R0M04INDUCTOR CHOKE |
0 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 90 A | 65A | Shielded | 0.48mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012150M04INDUCTOR CHOKE |
0 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 28 A | 28A | Shielded | 4.6mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012330M04INDUCTOR CHOKE |
0 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 33 µH | ±20% | 18 A | 18A | Shielded | 11.3mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI003030126R8M04INDUCTOR CHOKE |
0 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 45 A | 44A | Shielded | 1.9mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI003030124R7M04INDUCTOR CHOKE |
0 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 54 A | 53A | Shielded | 1.4mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012680M04INDUCTOR CHOKE |
0 |
|
Datasheet |
AFDI | Radial, 3 Leads | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 68 µH | ±20% | 12 A | 11A | Shielded | 27mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial - 3 Leads | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012470M04INDUCTOR CHOKE |
0 |
|
Datasheet |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 47 µH | ±20% | 16 A | 16.2A | Shielded | 14.6mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012100M04INDUCTOR CHOKE |
0 |
|
- |
AFDI | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 34 A | 32A | Shielded | 3.6mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012101M04INDUCTOR CHOKE |
0 |
|
Datasheet |
AFDI | Radial, 3 Leads | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 100 µH | ±20% | 11 A | 9A | Shielded | 32mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial - 3 Leads | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
|
AFDI00303012121M04INDUCTOR CHOKE |
0 |
|
Datasheet |
AFDI | Radial, 3 Leads | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 120 µH | ±20% | 9 A | 8A | Shielded | 36mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Through Hole | Radial - 3 Leads | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.500" (12.70mm) |
|
SWT-0.90-330FIXED IND 330UH 900MA 740MOHM TH |
0 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Tray | Obsolete | Toroidal | Iron Powder | 330 µH | ±20% | 900 mA | - | Unshielded | 740mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.422" (10.71mm) |
|
SWC-3.00-38FIXED IND 38UH 3A 50 MOHM TH |
0 |
|
Datasheet |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 38 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
SH50T-1.4-176FIXED IND 176UH 1.4A 140 MOHM TH |
0 |
|
Datasheet |
SH50 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 176 µH | ±20% | 1.4 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.492" (12.50mm) |
|

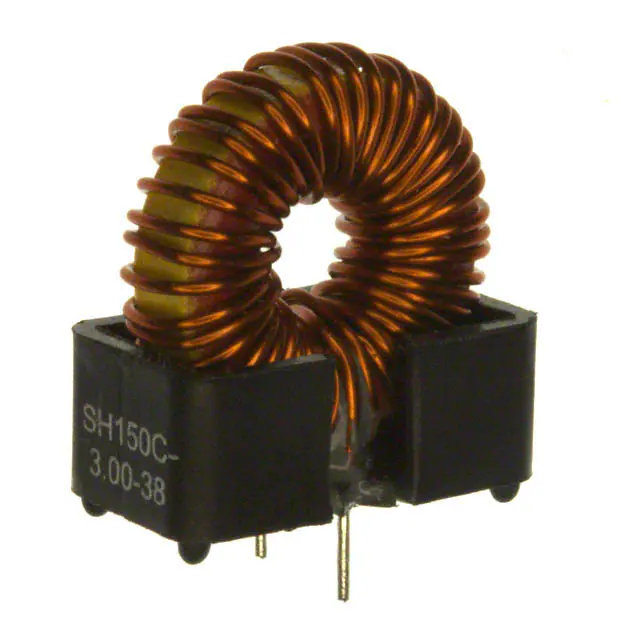

SH150C-3.00-38FIXED IND 38UH 3A 50 MOHM TH |
0 |
|
Datasheet |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 38 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
|
SH50T-0.9-267FIXED IND 267UH 900MA 180MOHM TH |
0 |
|
Datasheet |
SH50 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 267 µH | ±20% | 900 mA | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.492" (12.50mm) |
|
LDZ2817220K-10FIXED IND 22UH 26A 3 MOHM TH |
0 |
|
Datasheet |
LDZ2817 | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 26 A | 16.4A | Shielded | 3mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.669" W (27.00mm x 17.00mm) | 0.906" (23.00mm) |
|
|
LDZ2817330K-10FIXED IND 33UH 26A 3 MOHM TH |
0 |
|
Datasheet |
LDZ2817 | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 26 A | 10.3A | Shielded | 3mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.669" W (27.00mm x 17.00mm) | 0.906" (23.00mm) |
|
HCV1605R1-R500-RIND ER 15.5X5 0.500UH 50A SMT |
0 |
|
- |
HCVR1 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 500 nH | ±10% | 20 A | 45A | Unshielded | 1.98mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.196" (4.98mm) |
|
HCM1707-100-RFIXED IND 10UH 14A 10 MOHM SMD |
0 |
|
Datasheet |
HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 14 A | 18A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCM1707-1R5-RFIXED IND 1.5UH 40A 2.15MOHM SMD |
0 |
|
Datasheet |
HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 40 A | 40A | Shielded | 2.15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
Fixed Inductors Electronic Components
Explore Fixed Inductors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
