Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GA10-474KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 4.7 mH | ±10% | 0.164 mA | 115mA | Unshielded | 10.3Ohm Max | - | 380kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-684KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 6.8 mH | ±10% | 0.136 mA | 84mA | Unshielded | 15Ohm Max | - | 290kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-824KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 8.2 mH | ±10% | 116 mA | 138mA | Unshielded | 20.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
SMG5025-470KLFMOLDED NON-MAGNETIC SMT INDUCTOR |
0 |
|
Datasheet |
SMG5025 | Nonstandard | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 470 nH | ±10% | 1.75 A | - | Unshielded | 120mOhm Max | 45 @ 25MHz | 310MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
|
1026-02GFIXED IND 27NH 2.2A 30 MOHM TH |
0 |
|
Datasheet |
1026 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 27 nH | ±2% | 2.2 A | - | Unshielded | 30mOhm Max | 40 @ 25MHz | 875MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026-04GFIXED IND 33NH 2A 35 MOHM TH |
0 |
|
Datasheet |
1026 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 33 nH | ±2% | 2 A | - | Unshielded | 35mOhm Max | 40 @ 25MHz | 850MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026-06GFIXED IND 39NH 1.9A 40 MOHM TH |
0 |
|
Datasheet |
1026 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 39 nH | ±2% | 1.9 A | - | Unshielded | 40mOhm Max | 40 @ 25MHz | 825MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026-08GFIXED IND 47NH 1.8A 45 MOHM TH |
0 |
|
Datasheet |
1026 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 47 nH | ±2% | 1.8 A | - | Unshielded | 45mOhm Max | 40 @ 25MHz | 800MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026-10GFIXED IND 56NH 1.7A 50 MOHM TH |
0 |
|
Datasheet |
1026 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 56 nH | ±2% | 1.7 A | - | Unshielded | 50mOhm Max | 40 @ 25MHz | 775MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026-12GFIXED IND 68NH 1.5A 60 MOHM TH |
0 |
|
Datasheet |
1026 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 68 nH | ±2% | 1.5 A | - | Unshielded | 60mOhm Max | 40 @ 25MHz | 750MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1026-14GFIXED IND 82NH 1.4A 70 MOHM TH |
0 |
|
Datasheet |
1026 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 82 nH | ±2% | 1.4 A | - | Unshielded | 70mOhm Max | 40 @ 25MHz | 725MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
SWV-0.9-330FIXED IND 330UH 900MA 740MOHM TH |
0 |
|
Datasheet |
SW | Radial, Vertical | Bulk | Obsolete | Toroidal | Iron Powder | 330 µH | ±20% | 900 mA | - | Unshielded | 740mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.709" (18.00mm) |
|
SWF-0.85-680FIXED IND 680UH 850MA 1.25OHM TH |
0 |
|
Datasheet |
SW | Radial, Vertical Cylinder | Bulk | Obsolete | Toroidal | Iron Powder | 680 µH | ±20% | 850 mA | - | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
|
SWT-2.24-37FIXED IND 37UH 2.24A 100 MOHM TH |
0 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Tray | Obsolete | Toroidal | Iron Powder | 37 µH | ±20% | 2.24 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.346" (8.80mm) |
|
SH150T-2.74-24FIXED IND 24UH 2.74A 70 MOHM TH |
0 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 24 µH | ±20% | 2.74 A | - | Unshielded | 70mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|

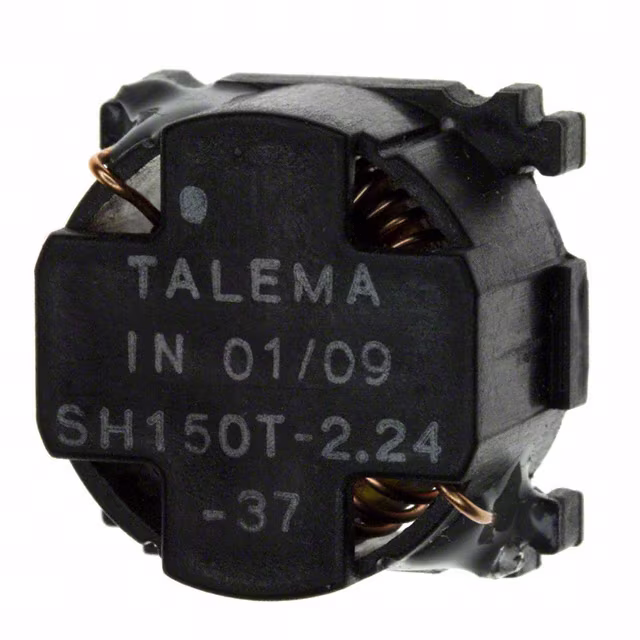

SH150T-2.24-37FIXED IND 37UH 2.24A 100 MOHM TH |
0 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 37 µH | ±20% | 2.24 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
|
SH150T-3.00-17FIXED IND 17UH 3A 50 MOHM TH |
0 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 17 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
IH10BQ100KFIXED IND 10UH 16A 12 MOHM TH |
0 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 16 A | 19A | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.635" Dia x 1.375" L (16.13mm x 34.93mm) | - |
|
|
SMT1803-152MHIGH EFFICIENCY LOW PRO TOROID |
0 |
|
- |
SMT1803 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 15 µH | ±20% | 900 mA | 1.16A | Unshielded | 214mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.205" W (7.90mm x 5.21mm) | 0.080" (2.03mm) |
|
|
DB1-122RADIAL POWR LINE CHOKE |
0 |
|
Datasheet |
DB1 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 12 µH | ±20% | 9 A | 19A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.650" Dia (16.51mm) | 0.712" (18.08mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
