Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78404064047WE-LQSA SMT SEMI-SHIELDED POWER |
862 |
|
Datasheet |
WE-LQSA | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 3.7 A | 5.5A | Shielded | 34mOhm Max | - | 36MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.181" (4.60mm) |
|
9230-08-RCFIXED IND 330NH 780MA 200MOHM TH |
830 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Phenolic | 330 nH | ±10% | 780 mA | - | Unshielded | 200mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

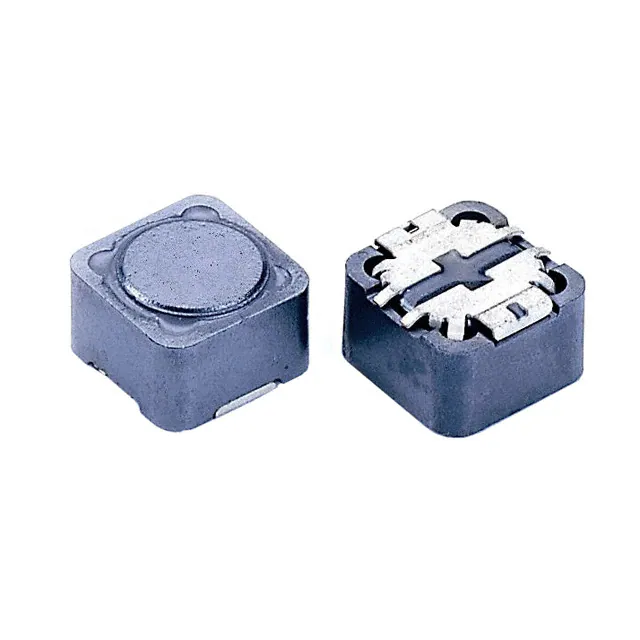

SCRH127-220FIXED IND 22UH 4A 43.2 MOHM SMD |
794 |
|
Datasheet |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 4 A | 3.6A | Shielded | 43.2mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
B82477G4683M000FIXED IND 68UH 2.1A 120 MOHM SMD |
792 |
|
Datasheet |
B82477G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.1 A | 2.45A | Shielded | 120mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.315" (8.00mm) |
|
CLF10040T-220M-HFIXED IND 22UH 2.7A 55 MOHM SMD |
788 |
|
Datasheet |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.7 A | 2.2A | Shielded | 55mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
9230-38-RCFIXED IND 5.6UH 260MA 1.8 OHM TH |
786 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Ferrite | 5.6 µH | ±10% | 260 mA | - | Unshielded | 1.8Ohm Max | 50 @ 7.9MHz | 68MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
B82477G4153M000FIXED IND 15UH 4.5A 27 MOHM SMD |
764 |
|
Datasheet |
B82477G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.5 A | 5.25A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.315" (8.00mm) |
|
|
9230-12-RCFIXED IND 470NH 590MA 350MOHM TH |
755 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Phenolic | 470 nH | ±10% | 590 mA | - | Unshielded | 350mOhm Max | 30 @ 25MHz | 340MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-28-RCFIXED IND 2.2UH 550MA 400MOHM TH |
744 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Ferrite | 2.2 µH | ±10% | 550 mA | - | Unshielded | 400mOhm Max | 30 @ 7.9MHz | 115MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
SRP7050TA-R47MFIXED IND 470NH 22A 3.9 MOHM SMD |
718 |
|
Datasheet |
SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 470 nH | ±20% | 22 A | 30A | Shielded | 3.9mOhm Max | 10 @ 100kHz | 95MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
SRP7050TA-560MFIXED IND 56UH 1.6A 396 MOHM SMD |
715 |
|
Datasheet |
SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 56 µH | ±20% | 1.6 A | 2.1A | Shielded | 396mOhm Max | 15 @ 100kHz | 7MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
9230-00-RCFIXED IND 150NH 1.1A 100 MOHM TH |
493 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Phenolic | 150 nH | ±10% | 1.1 A | - | Unshielded | 100mOhm Max | 38 @ 25MHz | 600MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
SBC9-2R2-792FIXED IND 2.2UH 7.9A 10 MOHM TH |
437 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 7.9 A | 21.5A | Unshielded | 10mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.472" (12.00mm) |
|
|
9230-36-RCFIXED IND 4.7UH 320MA 1.2 OHM TH |
243 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Ferrite | 4.7 µH | ±10% | 320 mA | - | Unshielded | 1.2Ohm Max | 45 @ 7.9MHz | 75MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-16-RCFIXED IND 680NH 450MA 600MOHM TH |
212 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Phenolic | 680 nH | ±10% | 450 mA | - | Unshielded | 600mOhm Max | 28 @ 25MHz | 275MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
EXLA1V0606-8R2-RIND MOLDED SHLD 8.2UH 8.0A |
120 |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 8.2 µH | ±20% | 8 A | 8A | Shielded | 24.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|
SRR6603-1R0MLFIXED IND 1UH 3A 40 MOHM SMD |
12,919 |
|
Datasheet |
SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3 A | 1.4A | Shielded | 40mOhm Max | 30 @ 200kHz | 250MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
|
MGAH1005220M-101005 INDUCTOR 22UH 5.5A |
7,453 |
|
Datasheet |
MGAH1005 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 22 µH | ±20% | 5.5 A | 6A | Shielded | 50mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
MGAH1005100M-101005 INDUCTOR 10UH 8A |
6,966 |
|
Datasheet |
MGAH1005 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 10 µH | ±20% | 8 A | 10A | Shielded | 28mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
MGAH10054R7M-101005 INDUCTOR 4.7UH 9A |
6,182 |
|
Datasheet |
MGAH1005 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 9 A | 15A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.201" (5.10mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
