Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GA20-683KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 680 µH | ±10% | 416 mA | 490mA | Unshielded | 1.61Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-473KLFHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 470 µH | ±10% | 491 mA | 590mA | Unshielded | 1.15Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-823KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 820 µH | ±10% | 377 mA | 440mA | Unshielded | 1.96Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-563KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 560 µH | ±10% | 0.494 mA | 310mA | Unshielded | 1.14Ohm Max | - | 1.1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-823KLFHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 820 µH | ±10% | 0.404 mA | 260mA | Unshielded | 1.7Ohm Max | - | 960kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-563KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 560 µH | ±10% | 468 mA | 540mA | Unshielded | 1.27Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-473KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 470 µH | ±10% | 530 µA | 320mA | Unshielded | 990mOhm Max | - | 1.2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-683KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 680 µH | ±10% | 0.43 mA | 0.28mA | Unshielded | 1.5Ohm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|

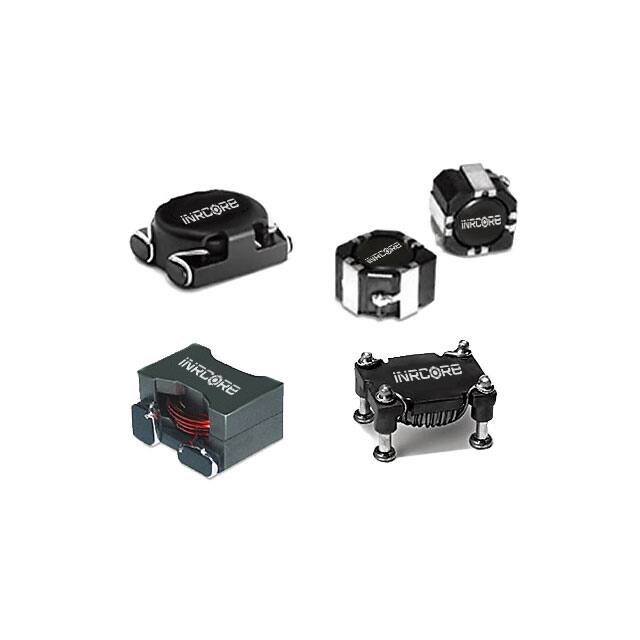

PL8100TFIXED IND 1.1UH 3.4A 11 MOHM SMD |
0 |
|
Datasheet |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 1.1 µH | - | 3.4 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.400" L x 0.345" W (10.16mm x 8.76mm) | 0.250" (6.35mm) |
|
|
2500R-56JFIXED IND 3.9MH 62MA 44 OHM TH |
0 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 3.9 mH | ±5% | 62 mA | - | Unshielded | 44Ohm Max | 80 @ 250kHz | 1.45MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-58JFIXED IND 4.3MH 60MA 46 OHM TH |
0 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 4.3 mH | ±5% | 60 mA | - | Unshielded | 46Ohm Max | 80 @ 250kHz | 1.4MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-60JFIXED IND 4.7MH 59MA 48 OHM TH |
0 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 4.7 mH | ±5% | 59 mA | - | Unshielded | 48Ohm Max | 80 @ 250kHz | 1.35MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-62JFIXED IND 5MH 58MA 50 OHM TH |
0 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 5 mH | ±5% | 58 mA | - | Unshielded | 50Ohm Max | 80 @ 250kHz | 1.3MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-63JFIXED IND 5.1MH 58MA 50 OHM TH |
0 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 5.1 mH | ±5% | 58 mA | - | Unshielded | 50Ohm Max | 80 @ 250kHz | 1.3MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-64JFIXED IND 5.6MH 56MA 53 OHM TH |
0 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 5.6 mH | ±5% | 56 mA | - | Unshielded | 53Ohm Max | 80 @ 250kHz | 1.25MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-66JFIXED IND 6.2MH 55MA 56 OHM TH |
0 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 6.2 mH | ±5% | 55 mA | - | Unshielded | 56Ohm Max | 80 @ 250kHz | 1.2MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-68JFIXED IND 6.8MH 54MA 59 OHM TH |
0 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 6.8 mH | ±5% | 54 mA | - | Unshielded | 59Ohm Max | 80 @ 250kHz | 1.15MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-70JFIXED IND 7.5MH 52MA 62 OHM TH |
0 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 7.5 mH | ±5% | 52 mA | - | Unshielded | 62Ohm Max | 80 @ 250kHz | 1.1MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-72JFIXED IND 8.2MH 51MA 65 OHM TH |
0 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 8.2 mH | ±5% | 51 mA | - | Unshielded | 65Ohm Max | 80 @ 250kHz | 1.05MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-74JFIXED IND 9.1MH 49MA 68 OHM TH |
0 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 9.1 mH | ±5% | 49 mA | - | Unshielded | 68Ohm Max | 80 @ 250kHz | 1MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
