Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8532R-08KFIXED IND 3.9UH 4.56A 17MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±15% | 4.56 A | 3.2A | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-09KFIXED IND 4.7UH 4.01A 22MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±15% | 4.01 A | 2.9A | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-10KFIXED IND 5.6UH 3.84A 24MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 5.6 µH | ±15% | 3.84 A | 2.7A | Unshielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-11KFIXED IND 6.8UH 3.69A 26MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±15% | 3.69 A | 2.5A | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-12KFIXED IND 8.2UH 3.55A 28MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±15% | 3.55 A | 2.2A | Unshielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-13KFIXED IND 10UH 3.27A 33 MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±15% | 3.27 A | 2A | Unshielded | 33mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-14KFIXED IND 12UH 3.09A 37 MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±15% | 3.09 A | 1.8A | Unshielded | 37mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-15KFIXED IND 15UH 2.97A 40 MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±15% | 2.97 A | 1.6A | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-16KFIXED IND 18UH 2.84A 44 MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±15% | 2.84 A | 1.5A | Unshielded | 44mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-17KFIXED IND 22UH 2.66A 50 MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±15% | 2.66 A | 1.4A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-18KFIXED IND 27UH 2.25A 70 MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±15% | 2.25 A | 1.2A | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-19KFIXED IND 33UH 2.17A 75 MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±15% | 2.17 A | 1.1A | Unshielded | 75mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-20KFIXED IND 39UH 2.05A 84 MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 39 µH | ±15% | 2.05 A | 1A | Unshielded | 84mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-21KFIXED IND 47UH 1.84A 104MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±15% | 1.84 A | 930mA | Unshielded | 104mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-22KFIXED IND 56UH 1.65A 130MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±15% | 1.65 A | 850mA | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-23KFIXED IND 68UH 1.56A 145MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±15% | 1.56 A | 770mA | Unshielded | 145mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
8532R-24KFIXED IND 82UH 1.53A 152MOHM SMD |
0 |
|
Datasheet |
8532R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±15% | 1.53 A | 710mA | Unshielded | 152mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
SWT-1.54-77FIXED IND 77UH 1.54A 200 MOHM TH |
0 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 77 µH | ±20% | 1.54 A | - | Unshielded | 200mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.346" (8.80mm) |
|

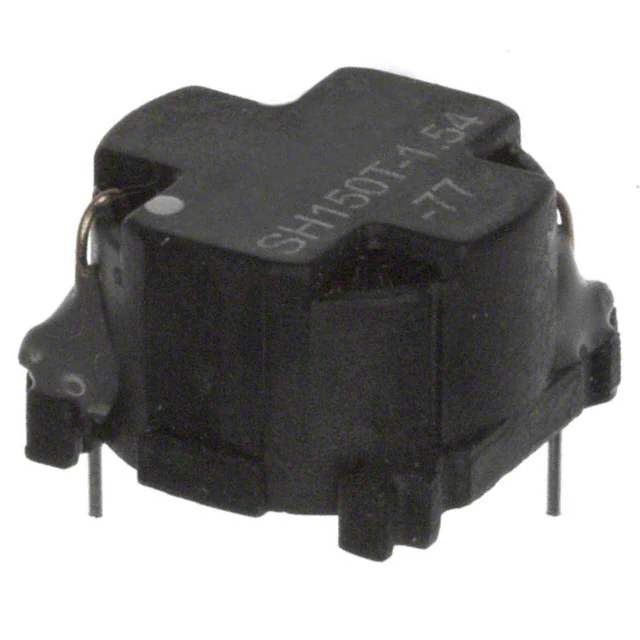

SH150T-1.54-77FIXED IND 77UH 1.54A 200 MOHM TH |
0 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 77 µH | ±20% | 1.54 A | - | Unshielded | 200mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
IH10BQ5R0KFIXED IND 5UH 19A 10 MOHM TH |
0 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 19 A | 25A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.635" Dia x 1.125" L (16.13mm x 28.58mm) | - |
