Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

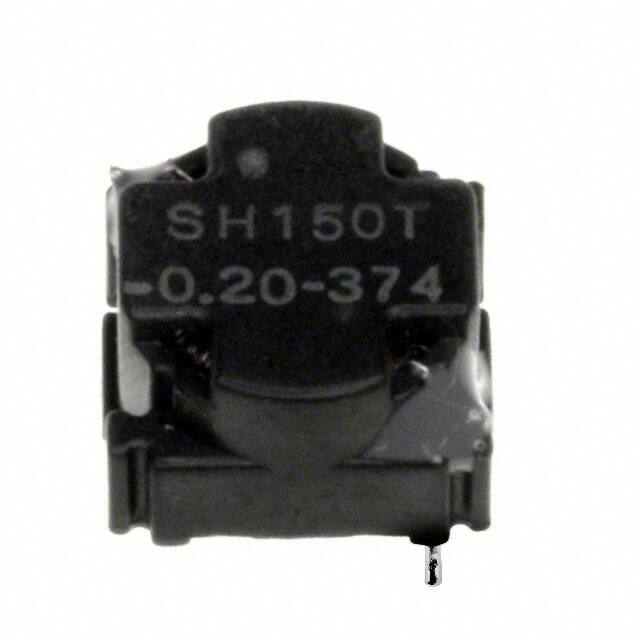

SH150T-0.20-374FIXED IND 374UH 200MA 2.7 OHM TH |
0 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 374 µH | ±20% | 200 mA | - | Unshielded | 2.7Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" L x 0.441" W (11.00mm x 11.20mm) | 0.280" (7.10mm) |
|
SWS-0.9-330FIXED IND 330UH 900MA 180MOHM SM |
0 |
|
Datasheet |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 330 µH | ±20% | 900 mA | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 20 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.541" (13.75mm) |
|
1B252WW HIGH CURRENT POWER CHOKE |
0 |
|
Datasheet |
1B | Axial | Bulk | Active | Toroidal | - | 25 µH | ±10% | 1 A | - | Unshielded | 120mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.350" Dia x 0.850" L (8.89mm x 21.59mm) | - |
|
|
GA10-272KLFHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 27 µH | ±10% | 2.189 mA | 1.4mA | Unshielded | 58mOhm Max | - | 6.5MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-222KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 22 µH | ±10% | 2.312 mA | 1.5A | Unshielded | 52mOhm Max | - | 8MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-332KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 33 µH | ±10% | 2.052 mA | 1.2A | Unshielded | 66mOhm Max | - | 6.1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-332KLFHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 33 µH | ±10% | 1.925 A | 2.2A | Unshielded | 75mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-222KLFHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 22 µH | ±10% | 2.358 A | 2.7A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-222KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 22 µH | ±10% | 2.358 A | 2.7A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-272KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 27 µH | ±10% | 2.189 mA | 1.4mA | Unshielded | 58mOhm Max | - | 6.5MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-332KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 33 µH | ±10% | 1.925 A | 2.2A | Unshielded | 75mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-392KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 39 µH | ±10% | 1.993 mA | 1.2A | Unshielded | 70mOhm Max | - | 5.7MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-272KLFHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 27 µH | ±10% | 2.19 A | 2.5A | Unshielded | 58mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-272KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 27 µH | ±10% | 2.19 A | 2.5A | Unshielded | 58mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
MLRF19M473JMIL MOLDED AXIAL RF COIL |
0 |
|
Datasheet |
MLRF19M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 µH | ±5% | 95 mA | - | Unshielded | 11.1Ohm Max | 65 @ 790kHz | 4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
|
|
0819R-74HFIXED IND 120UH 54.5MA 16 OHM TH |
0 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 120 µH | ±3% | 54.5 mA | - | Unshielded | 16Ohm Max | 35 @ 790kHz | 8.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819R-76HFIXED IND 150UH 51MA 18 OHM TH |
0 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 150 µH | ±3% | 51 mA | - | Unshielded | 18Ohm Max | 35 @ 790kHz | 7.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819R-78HFIXED IND 180UH 49MA 20 OHM TH |
0 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 180 µH | ±3% | 49 mA | - | Unshielded | 20Ohm Max | 35 @ 790kHz | 7.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819R-80HFIXED IND 220UH 42.5MA 26.5 OHM |
0 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 220 µH | ±3% | 42.5 mA | - | Unshielded | 26.5Ohm Max | 35 @ 790kHz | 7.1MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
|
0819R-82HFIXED IND 270UH 39MA 30.5 OHM TH |
0 |
|
Datasheet |
0819R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 270 µH | ±3% | 39 mA | - | Unshielded | 30.5Ohm Max | 35 @ 790kHz | 6.6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
