Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0925-224KFIXED IND 220UH 64MA 11 OHM TH |
0 |
|
Datasheet |
0925 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 220 µH | ±10% | 64 mA | 20mA | Shielded | 11Ohm Max | 35 @ 790kHz | 10MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
0925-274KFIXED IND 270UH 61MA 12 OHM TH |
0 |
|
Datasheet |
0925 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 270 µH | ±10% | 61 mA | 18mA | Shielded | 12Ohm Max | 37 @ 790kHz | 9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
0925-334KFIXED IND 330UH 53MA 16 OHM TH |
0 |
|
Datasheet |
0925 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 330 µH | ±10% | 53 mA | 16mA | Shielded | 16Ohm Max | 40 @ 790kHz | 8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
0925-394KFIXED IND 390UH 46MA 21 OHM TH |
0 |
|
Datasheet |
0925 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 390 µH | ±10% | 46 mA | 14mA | Shielded | 21Ohm Max | 38 @ 790kHz | 7.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
0925-474KFIXED IND 470UH 43MA 24 OHM TH |
0 |
|
Datasheet |
0925 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 470 µH | ±10% | 43 mA | 13mA | Shielded | 24Ohm Max | 36 @ 790kHz | 7.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
0925-564KFIXED IND 560UH 40MA 28 OHM TH |
0 |
|
Datasheet |
0925 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 560 µH | ±10% | 40 mA | 12mA | Shielded | 28Ohm Max | 36 @ 790kHz | 7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
IHLP6767DZER1R0M11FIXED IND 1UH 41A 2.05 MOHM SMD |
0 |
|
Datasheet |
IHLP-6767DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 41 A | 27.5A | Shielded | 2.05mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.157" (4.00mm) |
|
|
IH05EB270KFIXED IND 27UH 9A 25 MOHM TH |
0 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 9 A | 13A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.840" Dia x 0.875" L (21.34mm x 22.23mm) | - |
|
SWT-0.44-252FIXED IND 252UH 440MA 900MOHM TH |
0 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 252 µH | ±20% | 440 mA | - | Unshielded | 900mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.307" (7.80mm) |
|
|
SWT-0.54-173FIXED IND 173UH 540MA 600MOHM TH |
0 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 173 µH | ±20% | 540 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.307" (7.80mm) |
|

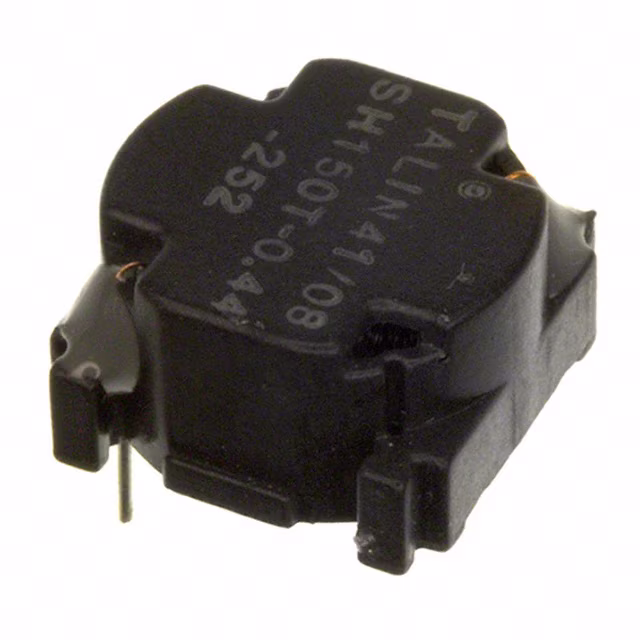

SH150T-0.44-252FIXED IND 252UH 440MA 900MOHM TH |
0 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 252 µH | ±20% | 440 mA | - | Unshielded | 900mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.551" L x 0.559" W (14.00mm x 14.20mm) | 0.311" (7.90mm) |
|
|
GA10-182KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 18 µH | ±10% | 2.432 mA | 1.6mA | Unshielded | 47mOhm Max | - | 10MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-122KLFHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 12 µH | ±10% | 2.705 mA | 2mA | Unshielded | 38mOhm Max | - | 21MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-122KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 12 µH | ±10% | 2.705 mA | 2mA | Unshielded | 38mOhm Max | - | 21MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-182KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 18 µH | ±10% | 2.514 A | 3A | Unshielded | 44mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-152KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 15 µH | ±10% | 2.636 A | 3.3A | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-152KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 15 µH | ±10% | 2.543 mA | 1.9mA | Unshielded | 43mOhm Max | - | 14MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-122KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 12 µH | ±10% | 2.741 A | 3.6A | Unshielded | 37mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-102KLFHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 10 µH | ±10% | 2.818 mA | 2.4A | Unshielded | 35mOhm Max | - | 35MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-102KHIGH CURRENT AXIAL POWER CHOKE |
0 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 10 µH | ±10% | 2.818 mA | 2.4A | Unshielded | 35mOhm Max | - | 35MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
